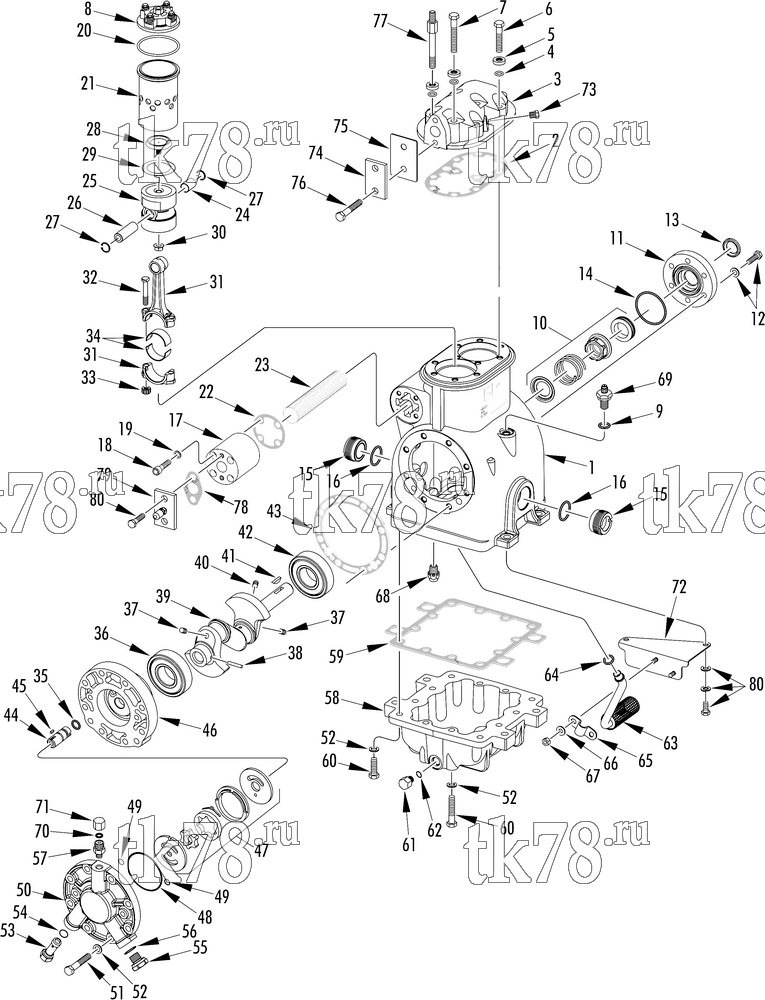

Установкa Thermo King MD-200 w/TK 3.74 Engine схема COMPRESSOR X214 (DEEP SUMP) – 185H5
Обновление от: 1/13/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 102-1072 | COMPRESSOR - X214 | 1 | ||
| 1 | 23-131 | BODY - compressor | 1 | |
|
10-23-131 | Корпус компрессора X214 | 132 900 ₽ |
|
| 2 | 33-2552 | GASKET - compressor cylinder head | 1 | |
|
10-33-2552 | Прокладка головки компрессора X214/418/426/430 | 680 ₽ |
|
| 3 | 22-788 | HEAD - cylinder | 1 | |
|
10-22-788 | Головка компрессора | 14 780 ₽ |
|
| 4 | 33-2019 | O-RING | 10 | |
|
10-33-2019K | Набор уплотнителей болтов головки компрессора (24шт) | 2 280 ₽ |
|
|
10-33-2019 | Уплотнитель болта головки компрессора | 510 ₽ |
|
| 5 | 55-6804 | WASHER - sealing | 10 | |
| 6 | 55-6805 | SCREW - cylinder head (2 lg) | 6 | |
| 10-55-6805 | Болт головки компрессора 3/8-16 x 5/8 lg | 490 ₽ |
|
|
| 7 | 55-6806 | SCREW - cylinder head (2-5/8 lg) | 2 | |
| 10-55-6806 | Болт головки компрессора 3/8-16 x 5/8 lg | 580 ₽ |
|
|
| 8 | 22-990 | PLATE - valve | 2 | |
|
22-990 OEM | Клапан нагнетания компрессора X214/418/426/430 | 9 010 ₽ |
|
|
10-22-990 | Клапан нагнетания компрессора X214/418/426/430 | 5 100 ₽ |
|
| 9 | 33-1223 | O-RING - oil fill | 1 | |
| 10 | 22-899 | SEAL - crankshaft | 1 | |
|
10-22-899 | Сальник компрессора X214 | 34 770 ₽ |
|
|
PP-22-899 | Сальник компрессора X214 | 14 540 ₽ |
|
| 11 | 22-743 | PLATE | 1 | |
|
10-22-743 | Крышка компрессора Plate, Seal | 5 500 ₽ |
|
| 12 | 55-172 | SCREW | 6 | |
| 55-895 | FLATWASHER | 6 | ||
| 13 | 33-2044 | SEAL - oil | 1 | |
| 10-33-2044 | Сальник коленвала, D214/X214 | 1 400 ₽ |
|
|
| 14 | 33-2043 | O-RING - seal plate | 1 | |
| 10-33-2043 | Уплотнение крышки сальника, X214 | 390 ₽ |
|
|
| 15 | 22-350 | SIGHT GLASS | 2 | |
| 10-22-350 | Окно уровня масла, X214/418/426/430 | 3 730 ₽ |
|
|
| 16 | 33-822 | O-RING | 2 | |
| 10-33-822 | О-ринг смотрового окна, X214/X426/X430 | 290 ₽ |
|
|
| 17 | 66-8927 | ADAPTER - suction (SR-2 units, before 8/11) | 1 | |
| 22-1355 | ADAPTER - suction (SR-3 units, 8/11 & after) | 1 | ||
| 18 | 55-190 | SCREW - adapter | 4 | |
| 19 | 55-3252 | WASHER | 4 | |
| 20 | 33-408 | O-RING - valve plate | 2 | |
|
10-33-408 | Прокладка клапана, X214/418/426/430 | 360 ₽ |
|
| 21 | 22-608 | SLEEVE - cylinder | 2 | |
|
10-22-608 | Гильза, D214/X214 | 6 840 ₽ |
|
| 22 | 33-211 | GASKET - adapter | 1 | |
|
33-211 OEM | Прокладка компрессора | 1 720 ₽ |
|
|
30-33-211 | Прокладка | 510 ₽ |
|
| 23 | 22-159 | SCREEN - suction port | 1 | |
|
10-22-159 | Сетка | 2 250 ₽ |
|
| 24 | 11-475 | BUSHING - piston pin | 2 | |
| 25 | 22-849 | PISTON | 2 | |
|
10-22-849 | Поршень компрессора, к-т, D214/X214/X418/X426/X640 | 6 680 ₽ |
|
| 26 | NSS | PIN - piston | 2 | |
| 27 | 55-2122 | RING - retaining | 4 | |
| 28 | NSS | HEAD - piston | 2 | |
| 29 | NSS | REED - piston | 2 | |
| 30 | 51-115 | NUT | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 31 | 22-639 | ROD - connecting | 2 | |
|
10-22-639 | Шатун компрессора X214/418/426/430 | 3 920 ₽ |
|
| 32 | 55-5062 | BOLT - connecting rod | 4 | |
| 33 | 51-666 | NUT - connecting rod | 4 | |
| 34 | 22-1246 | BEARING SET - connecting rod (standard) | 2 | |
|
10-22-1246 | Вкладыш шатунный, STD, X214/418/426/430 | 1 400 ₽ |
|
|
PP-22-1246 | Вкладыш шатунный, STD, X214/418/426/430 | 500 ₽ |
|
| 22-1264 | BEARING SET (0.005 us) | 2 | ||
| 22-1265 | BEARING SET (0.010 us) | 2 | ||
| 10-22-1265 | Вкладыш шатунный, +0.01, X214/418/426/430 | 1 500 ₽ |
|
|
|
PP-22-1265 | Вкладыш шатунный, +0.01, X214/418/426/430 | 960 ₽ |
|
| 22-1266 | BEARING SET (0.020 us) | 2 | ||
|
10-22-1266 | Вкладыш шатунный, +0.02, X214/418/426/430 | 1 500 ₽ |
|
| 22-1267 | BEARING SET (0.030 us) | 2 | ||
| 10-22-1267 | Вкладыш шатунный, +0.03, X214/418/426/430 | 1 500 ₽ |
|
|
| 35 | 33-1223 | O-RING - pumpshaft | 1 | |
| 36 | 22-220 | BEARING - crankshaft (pump end) | 1 | |
|
10-22-220 | Подшипник коленвала компрессора X214 | 3 620 ₽ |
|
| PP-22-220 | Подшипник коленвала компрессора X214 | 1 280 ₽ |
|
|
| 37 | 55-4720 | PLUG | 2 | |
| 38 | 55-7425 | PIN - dowel | 1 | |
| 39 | 22-804 | CRANKSHAFT | 1 | |
| 10-22-804 | Коленвал компрессора X214, KD/MD-II / MD-XXX/T-Series | 46 770 ₽ |
|
|
| PP-22-804 | Коленвал компрессора X214, KD/MD-II / MD-XXX/T-Series | 18 500 ₽ |
|
|
| 40 | 22-123 | PLUG - oil metering | 1 | |
| 41 | 55-455 | KEY | 1 | |
|
10-55-455 | Шпонка коленвала, D214/X214 | 290 ₽ |
|
| 42 | 77-2311 | BEARING - crankshaft (pulley end) | 1 | |
|
10-77-2311 | Подшипник коленвала компрессора X214 | 17 230 ₽ |
|
| 10-22-219 | Подшипник коленвала компрессора X214 | 8 380 ₽ |
|
|
| 43 | 33-110 | GASKET - bearing plate | 1 | |
|
10-33-110 | Прокладка масляного насоса компрессора X426 | 1 030 ₽ |
|
| 44 | 22-1149 | SHAFT - oil pump | 1 | |
|
10-22-1149 | Вал масляного насоса, X214/418/426/430/640 | 6 570 ₽ |
|
| 45 | 55-9760 | KEY - shaft | 1 | |
|
10-55-9760 | Шпонка вала масляного насоса, X214/426/430 | 390 ₽ |
|
| 46 | 22-1254 | PLATE - pump bearing | 1 | |
| 47 | 22-1160 | PUMP - oil | 1 | |
|
22-1160 OEM | Масляный насос компрессора X214/418/426/430/640 | 18 400 ₽ |
|
|
10-22-1160 | Масляный насос компрессора X214/418/426/430/640 | 17 150 ₽ |
|
| PP-22-1160 | Масляный насос компрессора X214/418/426/430/640 | 10 020 ₽ |
|
|
| 48 | 33-1175 | O-RING - oil pump cover | 1 | |
|
10-33-1175 | О-ринг крышки масляного насоса компрессора X214/426/430 | 280 ₽ |
|
| 49 | 33-239 | O-RING | 2 | |
| 33-239 OEM | О-ринг крышки масляного насоса компрессора X214/426/430 | 60 ₽ |
|
|
| 50 | 22-1278 | COVER - pump | 1 | |
| 51 | 55-681 | SCREW - plate (1-1/8 lg) | 4 | |
| 10-55-681 | Болт масляного насоса компрессора | 530 ₽ |
|
|
| 51-149 | SCREW - plate (2-1/4 lg) | 8 | ||
| 52 | 55-896 | FLATWASHER | 20 | |
| 53 | 22-784 | REGULATOR - oil pressure | 1 | |
|
10-22-784 | Регулятор давления масла, X214/426/430/640 | 3 440 ₽ |
|
| 54 | 33-672 | O-RING | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 55 | 55-6752 | PLUG | 1 | |
| 10-55-6752 | Пробка Oil Pump Cover | 1 400 ₽ |
|
|
| 56 | 33-1461 | O-RING - hose | 1 | |
| 57 | 66-8928 | ADAPTER - o-ring seal | 1 | |
| 58 | 22-1188 | SUMP - oil | 1 | |
| 59 | 33-3839 | GASKET - oil sump | 1 | |
| 60 | 55-9106 | SCREW (1-1/8 lg) | 8 | |
| 55-926 | SCREW - oil sump (3-1/2 lg) | 4 | ||
| 61 | 55-8398 | PLUG - oil drain | 1 | |
| 62 | 33-2747 | O-RING - plug | 1 | |
| 63 | 22-1189 | SCREEN - oil sump | 1 | |
| 64 | 33-2205 | O-RING - oil pickup | 1 | |
| 65 | 99-4848 | CLAMP - screen | 1 | |
| 10-99-4848 | Зажим | 960 ₽ |
|
|
| 66 | 55-366 | LOCKWASHER | 2 | |
| 67 | 55-291 | NUT | 2 | |
| 68 | 22-653 | VALVE - check | 1 | |
| 10-22-653 | Обратный клапан, X214/418/426/430/640 | 1 830 ₽ |
|
|
| 69 | 66-8929 | VALVE - oil fill | 1 | |
| 70 | 33-1461 | O-RING (5/16) | 1 | |
| 71 | 66-9387 | CAP - adapter | 1 | |
| 72 | 92-2988 | BRACKET - oil pickup | 1 | |
| 73 | 55-3364 | PLUG - pipe | 1 | |
| 74 | 91-5630 | COVER - cylinder head port | 1 | |
| 75 | 33-3103 | GASKET - cover | 1 | |
| 76 | 55-329 | SCREW - plate | 2 | |
| 77 | 55-8765 | STUD - cylinder head (4.1 inch long) | 2 | |
| 55-8764 | STUD - cylinder head (3.5 inch long) | 4 | ||
| 78 | 33-2542 | GASKET - suction cover plate | 1 | |
| 79 | 91-5629 | PLATE - suction cover | 1 | |
| 11-2886 | VALVE - port | 1 | ||
| 80 | 55-141 | SCREW - bracket | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 30-247 | KIT - gasket (see note) | 1 | ||
|
10-30-247 | Набор прокладок компрессора X214 | 6 670 ₽ |
|
| 203-513 | OIL - compressor (R134a, R404A, one liter) | A/R | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 203-518 | KIT - acid test (polyol ester kit) | 1 |
