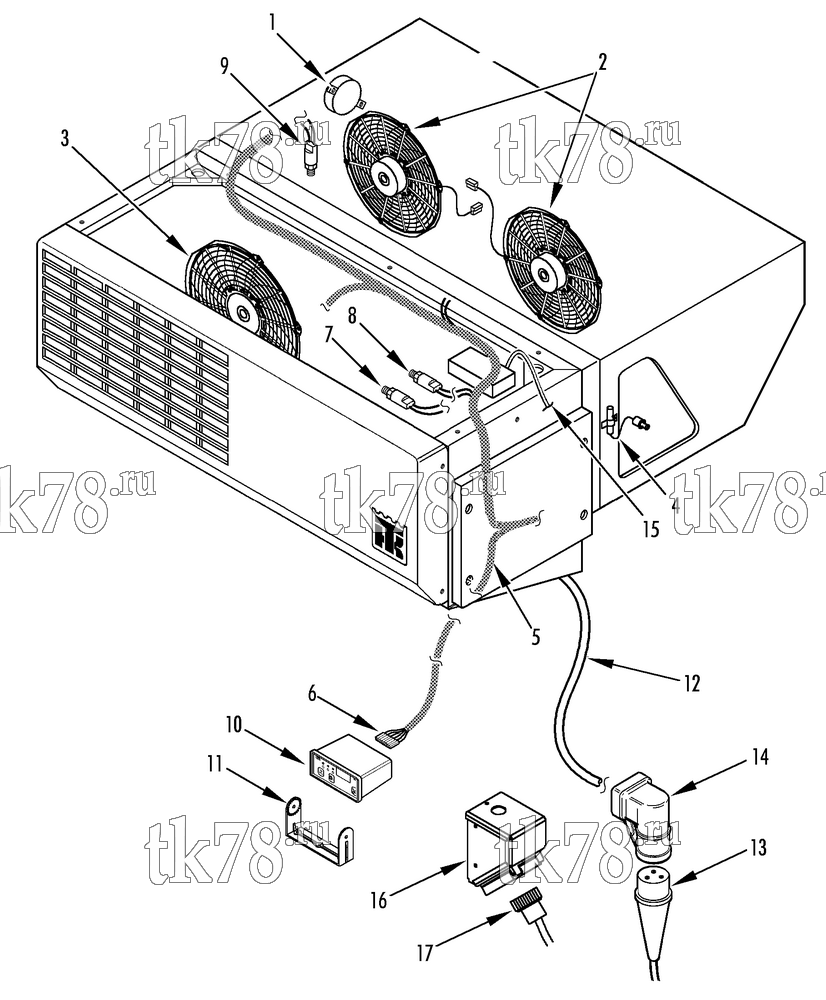

Установкa Thermo King VM-400 10 & 20 схема ELECTRICAL COMPONENTS (VM-400) – 154E1
Обновление от: 1/3/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3136 | SWITCH - defrost termination | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 1 | ||
| 55-9488 | SCREW - switch | 2 | ||
| 2 | 78-1187 | FAN & MOTOR - evaporator (12V) | 2 | |
| 10-78-1187 | Вентилятор испарителя 12V, V-520/VM-4XX | 10 220 ₽ |
|
|
|
P-54-00598-03 | Вентилятор испарителя 12V, Viento | 10 220 ₽ |
|
|
PP-54-00598-03 | Вентилятор испарителя 12V, Viento | 4 870 ₽ |
|
| PP-78-1187 | Вентилятор испарителя 12V, V-520/VM-4XX | 4 870 ₽ |
|
|
| 78-1188 | FAN & MOTOR - evaporator (24V) | 1 | ||
| P-54-00598-13 | Вентилятор испарителя 24V, Viento | 11 220 ₽ |
|
|
| 10-78-1188 | Вентилятор испарителя 24V, VM-Series | 11 220 ₽ |
|
|
|
PP-54-00598-13 | Вентилятор испарителя 24V, Viento | 4 570 ₽ |
|
|
PP-78-1188 | Вентилятор испарителя 24V, VM-Series | 4 570 ₽ |
|
| 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 2 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 4 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 55-7036 | SCREW - fan | 8 | ||
| 55-7089 | FLATWASHER | 8 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 3 | 78-1202 | FAN & MOTOR - condenser (24V) | 1 | |
| 78-1201 | FAN & MOTOR - condenser (12V) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 1 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 44-5835 | CONNECTOR - shroud | 2 | ||
| 55-7036 | SCREW - fan | 4 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 4 | 41-3143 | SENSOR - only | 1 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 1 | ||
| 5 | 41-3139 | HARNESS - main (VM-400) | 1 | |
| 6 | 41-4528 | CONNECTOR (10-pin) | 1 | |
| 7 | 44-7991 | SWITCH - hpco | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 8 | 44-7992 | SWITCH - condenser fan (not used on max units) | 1 | |
| 44-5305 | SWITCH - only | 1 | ||
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 9 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 44-6132 | SWITCH - only | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 10 | 45-1771 | BOX - cab control (M12B) | 1 | |
| 44-9524 | FUSE (3 amp) | 1 | ||
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 11 | 92-622 | SUPPORT - control box | 1 | |
| 12 | 41-1518 | HARNESS - power | 1 | |
| 13 | 41-2026 | PLUG - power (380/3/50, mates w/ 41-978) | 1 | |
| 14 | 41-978 | RECEPTACLE - power (380/3/50, mates w/ 41-2026) | 1 | |
| 33-2684 | GASKET | 1 | ||
| 15 | 41-3783 | CABLE - compressor | 1 | |
| 16 | 44-4656 | RECEPTACLE - power (see 162A3) | 1 | |
| 17 | 44-4694 | PLUG - power (see 162A3) | 1 |
