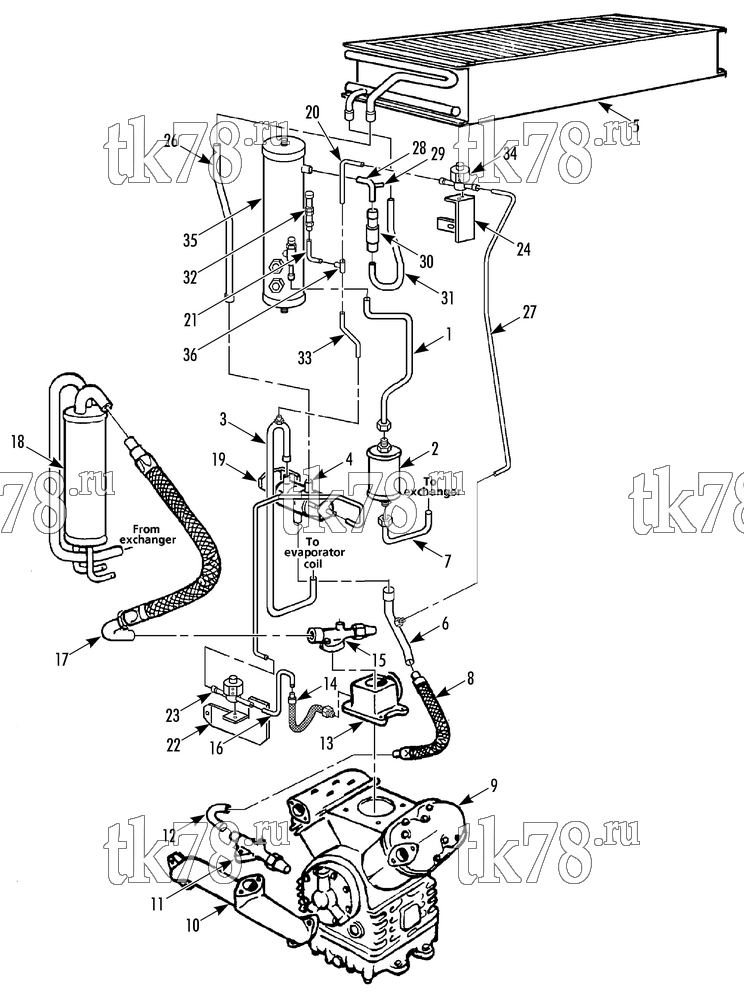

Установкa Thermo King Super-II 30 MAX w/se 2.2 Engine схема REFRIGERATION - CONDENSER – 111F10
Обновление от: 6/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-6266 | TUBE - dehydrator | 1 | |
| 2 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 3 | 66-6939 | TUBE - 3-way to defrost | 1 | |
| 66-5752 | FITTING | 1 | ||
| 4 | 66-4975 | VALVE - 3-way (see 100F5) | 1 | |
| 5 | 67-1457 | COIL - condenser | 1 | |
| 67-1460 | COIL - condenser (vinyl dip, optional) | 1 | ||
| 91-490 | PLATE - condenser holddown | 1 | ||
| 33-1821 | STRIP - sealing (17.5 lg) | 1 | ||
| 33-1822 | STRIP - sealing (19.5 lg) | 1 | ||
| 33-1823 | STRIP - sealing (41.0 lg) | 1 | ||
| 55-2977 | SCREW - coil (1/4-20) | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-2969 | SCREW - coil (5/16-18) | 2 | ||
| 6 | 66-9480 | TUBE - vibrasorber to 3-way | 1 | |
| 66-5752 | FITTING - tube | 1 | ||
| 7 | 66-5853 | TUBE - dehydrator to exchanger | 1 | |
| 8 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 66-4989 | CLAMP - vibrasorber | 1 | ||
| 9 | NSS | COMPRESSOR (see 104E3) | 1 | |
| 10 | 22-735 | MANIFOLD - discharge (see 104E3) | 1 | |
|
10-22-735 | Коллектор компрессора X430 | 36 730 ₽ |
|
| 11 | 66-129 | VALVE - discharge (see 104E3) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 12 | 66-4988 | TUBE - valve to vibrasorber | 1 | |
| 13 | 66-5936 | VALVE - throttling (see 96A5) | 1 | |
| 14 | 66-6252 | HOSE - valve to tee | 1 | |
| 15 | 66-5318 | VALVE - suction (see 104E3) | 1 | |
| 66-5318 OEM | Всасывающий клапан X426/430/640 | 42 100 ₽ |
|
|
|
10-66-5318 | Всасывающий клапан X426/430/640 | 28 770 ₽ |
|
| 16 | 66-6251 | TUBE - hose to solenoid | 1 | |
| 17 | 66-5717 | VIBRASORBER - suction | 1 | |
|
10-66-5717 | Трубка армированная всасывающая, Pipe Ends 29in | 32 240 ₽ |
|
| 91-747 | CLAMP - suction vibrasorber | 1 | ||
| 18 | 67-1328 | TANK - accumulator | 1 | |
| 19 | 99-9920 | BRACKET - 3-way valve | 1 | |
| 55-2115 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 20 | 66-6255 | TUBE - pilot solenoid to tee | 1 | |
| 21 | 66-6257 | TUBE - valve to tee | 1 | |
| 22 | 91-3580 | BRACKET - solenoid valve | 1 | |
| 55-3029 | SCREW - solenoid | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 23 | 66-5908 | VALVE - pilot solenoid | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 24 | 91-3582 | BRACKET - solenoid valve | 1 | |
| 25 | 66-6253 | TUBE - pilot solenoid to 3-way | 1 | |
| 26 | 66-4754 | TUBE - 3-way to condenser | 1 | |
| 27 | 66-7257 | TUBE - solenoid to hot gas line | 1 | |
| 28 | 66-5849 | TUBE - receiver to check valve | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 29 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 30 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 31 | 66-5850 | TUBE - coil to check valve | 1 | |
| 32 | 66-5501 | VALVE - check | 1 | |
| 33 | 66-7256 | TUBE - tee to fitting | 1 | |
| 34 | 66-5374 | VALVE - solenoid (see 138A7) | 1 | |
| 35 | 67-1181 | TANK - receiver (see 128G9) | 1 | |
| 36 | 66-4346 | TEE | 1 |
