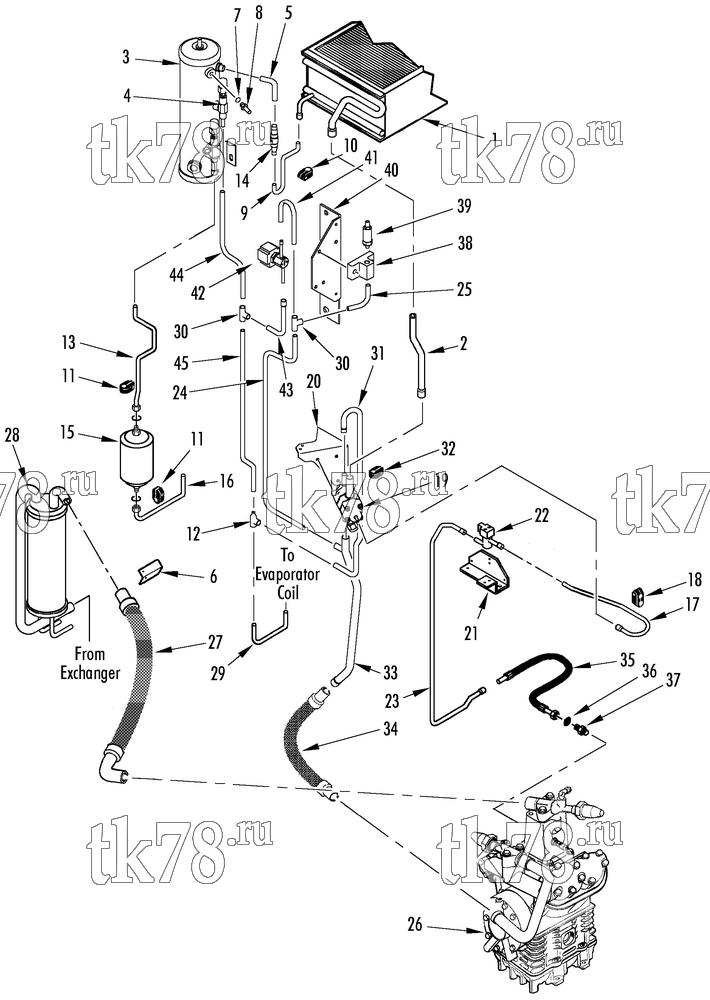

Установкa Thermo King Super-II 30 190Y схема REFRIGERATION - CONDENSER (w/ ETV) – 160E4
Обновление от: 9/12/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1457 | COIL - condenser | 1 | |
| 67-1460 | COIL - condenser (vinyl dip option) | 1 | ||
| 91-490 | PLATE - condenser holddown | 1 | ||
| 33-1821 | STRIP - sealing (17.5 lg) | 1 | ||
| 33-1822 | STRIP - sealing (19.5 lg) | 1 | ||
| 33-1823 | STRIP - sealing (41.0 lg) | 1 | ||
| 55-2977 | SCREW - coil (1/4-20) | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2945 | FLATWASHER | 6 | ||
| 55-4974 | NUT - captive | 6 | ||
| 55-2969 | SCREW - coil (5/16-18) | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 55-4967 | NUT | 1 | ||
| 2 | 66-7830 | TUBE - 3-way to condenser | 1 | |
| 3 | 67-1544 | TANK - receiver (see 153A7) | 1 | |
| 4 | 66-9369 | VALVE - check | 1 | |
| 5 | 61-321 | TUBE - receiver to check valve | 1 | |
| 6 | 91-747 | CLAMP - vibrasorber | 1 | |
| 55-2977 | SCREW - clamp | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-6863 | INSERT | 3 | ||
| 7 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 8 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 9 | 66-5850 | TUBE - coil to check valve | 1 | |
| 10 | 55-6389 | CLAMP - tube (1/2 id) | 1 | |
| 11 | 91-759 | CLAMP - tube (1/2 id) | 4 | |
| 55-3675 | SCREW - clamp | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 12 | 55-2290 | TEE (1/2 x 1/4 x 1/2) | 1 | |
| 13 | 66-7832 | TUBE - dehydrator | 1 | |
| 14 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 15 | 61-600 | DEHYDRATOR (see 104D6) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 16 | 66-5853 | TUBE - dehydrator to exchanger | 1 | |
| 17 | 66-7833 | TUBE - pilot solenoid to 3-way valve | 1 | |
| 18 | 55-7600 | CLAMP - tube (1/4 x 1/2) | 2 | |
| 55-3000 | SCREW - clamp | 1 | ||
| 55-431 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 19 | 66-4975 | VALVE - 3-way (see 100F5) | 1 | |
| 20 | 91-9515 | BRACKET - 3-way valve | 1 | |
| 55-2115 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 21 | 92-2666 | BRACKET - solenoid valve | 1 | |
| 22 | 66-7636 | VALVE - pilot solenoid | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-3029 | SCREW - solenoid | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 23 | 61-322 | TUBE - hose to solenoid | 1 | |
| 24 | 61-323 | TUBE - 3-way to tee | 1 | |
| 25 | 61-324 | TUBE - tee to transducer | 1 | |
| 26 | NSS | COMPRESSOR (see 160E3) | 1 | |
| 27 | 66-5717 | VIBRASORBER - suction | 1 | |
|
10-66-5717 | Трубка армированная всасывающая, Pipe Ends 29in | 32 240 ₽ |
|
| 28 | 67-2790 | TANK - accumulator | 1 | |
| 29 | 66-7827 | TUBE - tee to evaporator | 1 | |
| 30 | 66-4346 | TEE (1/4 x 1/4 x 1/4) | 2 | |
| 31 | 66-7828 | TUBE - 3-way to defrost | 1 | |
| 32 | 55-6544 | CLAMP - tube (1/4 id) | 6 | |
| 55-6729 | SCREW - clamp (1 lg) | 2 | ||
| 55-8319 | SCREW - clamp (1-3/4 lg) | 1 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-4560 | NUT | 3 | ||
| 33 | 66-8726 | TUBE - vibrasorber to 3-way valve | 1 | |
| 34 | 66-7848 | VIBRASORBER - discharge | 1 | |
|
10-66-7848 | Вибросорбер, Super II | 14 620 ₽ |
|
| 35 | 61-1829 | HOSE - valve to fitting | 1 | |
| 36 | 33-1461 | O-RING - hose (o-ring seal) | 1 | |
| 37 | 66-8928 | FITTING (o-ring seal) | 1 | |
| 38 | 66-9246 | ADAPTER - transducer | 1 | |
| 55-3196 | SCREW - adapter | 2 | ||
| 55-431 | FLATWASHER | 4 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-2752 | NUT | 2 | ||
| 39 | 41-7956 | TRANSDUCER - pressure | 1 | |
| 40 | 92-464 | BRACKET - valve & transducer (before 5/02) | 1 | |
| 92-2667 | BRACKET - valve & transducer (5/02 & after) | 1 | ||
| 55-101 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 41 | 61-325 | TUBE - valve to tee | 1 | |
| 42 | 66-5781 | SOLENOID - hot gas (see 138A10) | 1 | |
| 55-3029 | SCREW - valve mounting | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 43 | 61-326 | TUBE - valve to tee | 1 | |
| 44 | 61-327 | TUBE - tee to receiver tank | 1 | |
| 45 | 61-328 | TUBE - tee to 3-way | 1 |
