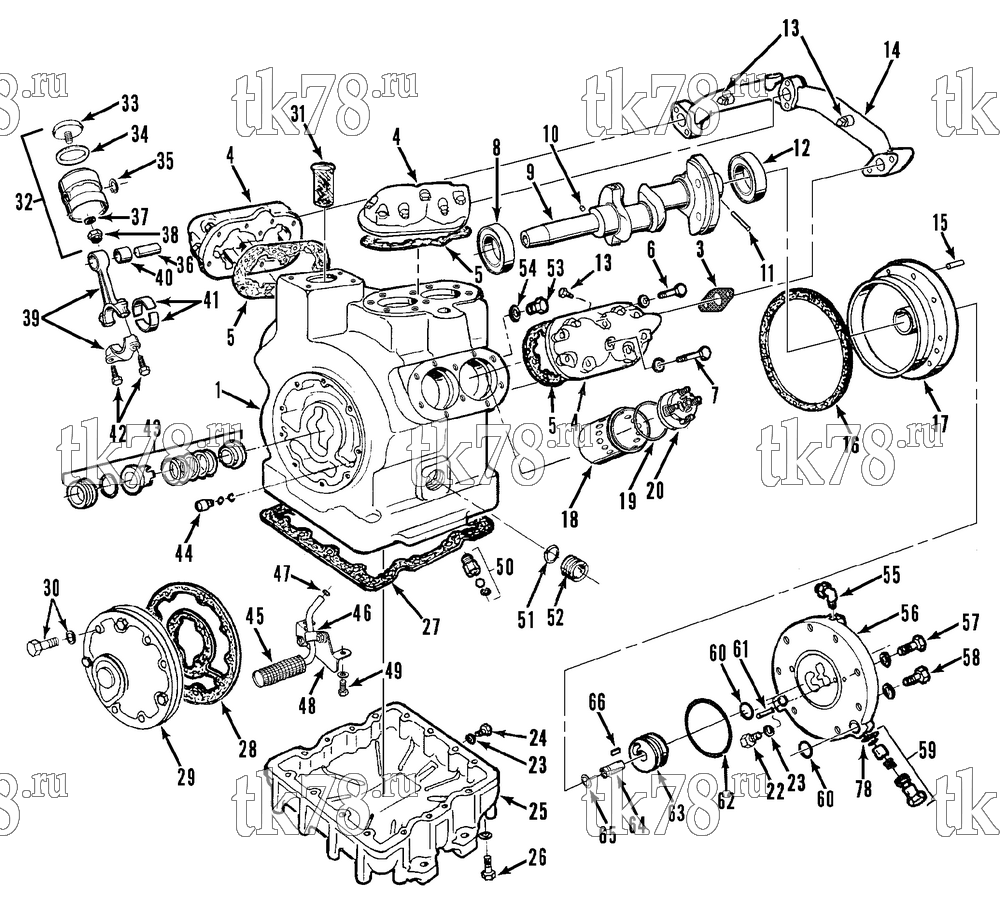

Установкa Thermo King SB-III MULTI-TEMP w/se 2.2 ENGINE схема COMPRESSOR X640 (R404A) – 124C14
Обновление от: 9/17/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 102-556 | COMPRESSOR - X640 (R404A) | 1 | ||
| 1 | 23-126 | CRANKCASE | 1 | |
| 2 | Not Used | |||
| 3 | 33-2805 | GASKET | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 4 | 22-789 | HEAD - cylinder | 3 | |
|
30-22-789 | Головка цилиндров компрессора | 14 780 ₽ |
|
| 5 | 33-2552 | GASKET - compressor cylinder head | 3 | |
|
10-33-2552 | Прокладка головки компрессора X214/418/426/430 | 680 ₽ |
|
| 6 | 55-878 | SCREW - cylinder head (3/8-16 x 1-7/8) | 14 | |
| 30-55-878 | Болт головки цилиндров компрессора | 680 ₽ |
|
|
| 55-896 | FLATWASHER | 14 | ||
| 7 | 55-1993 | SCREW - cylinder head (3/8-16 x 2-1/2) | 16 | |
| 30-55-1993 | Болт | 680 ₽ |
|
|
| 8 | 77-2306 | BEARING - ball | 1 | |
|
10-77-2306 | Подшипник компрессора X426 & X430 | 10 310 ₽ |
|
| 9 | 22-748 | CRANKSHAFT | 1 | |
| 55-4720 | PLUG - oil gallery | 3 | ||
| 10 | 22-123 | PLUG - oil metering | 1 | |
| 11 | 55-4213 | PIN - dowel | 1 | |
| 12 | 77-169 | BEARING - ball | 1 | |
|
10-77-169 | Подшипник компрессора (со стороны насоса) | 2 060 ₽ |
|
| 13 | 55-3364 | PLUG - pipe | 3 | |
| 14 | 22-710 | MANIFOLD - discharge | 1 | |
| 55-183 | SCREW - manifold | 6 | ||
| 10-55-183 | Болт масляного насоса компрессора 3/8-16 x 1/4 lg | 550 ₽ |
|
|
| 55-896 | FLATWASHER | 6 | ||
| 15 | 55-4210 | PIN - dowel | 1 | |
| 16 | 33-1704 | GASKET - housing | 1 | |
| 17 | 22-696 | HOUSING - pump | 1 | |
| 18 | 22-692 | SLEEVE - cylinder | 6 | |
| 19 | 33-408 | O-RING | 6 | |
|
10-33-408 | Прокладка клапана, X214/418/426/430 | 360 ₽ |
|
| 20 | 22-990 | PLATE - valve | 6 | |
|
22-990 OEM | Клапан нагнетания компрессора X214/418/426/430 | 9 010 ₽ |
|
|
10-22-990 | Клапан нагнетания компрессора X214/418/426/430 | 5 100 ₽ |
|
| 21 | 55-9760 | KEY - pump | 1 | |
|
10-55-9760 | Шпонка вала масляного насоса, X214/426/430 | 390 ₽ |
|
| 22 | 55-6752 | PLUG - oil pump | 1 | |
| 10-55-6752 | Пробка Oil Pump Cover | 1 400 ₽ |
|
|
| 23 | 55-4306 | FLATWASHER | 2 | |
| 24 | 55-6751 | PLUG - oil drain | 1 | |
|
10-55-6751 | Пробка масляного поддона компрессора магнитная | 1 720 ₽ |
|
| 25 | 22-552 | SUMP - oil | 1 | |
|
10-22-552 | Масляный поддон компрессора | 31 040 ₽ |
|
| 26 | 55-1417 | SCREW - sump | 16 | |
| 30-55-1417 | Болт поддона компрессора | 700 ₽ |
|
|
| 55-896 | FLATWASHER | 16 | ||
| 27 | 33-2515 | GASKET - oil sump | 1 | |
|
10-33-2515 | Прокладка поддона компрессора X418/426/430/640 | 1 110 ₽ |
|
| 28 | 33-2513 | GASKET - drive plate | 1 | |
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 29 | 22-755 | COVER - drive plate | 1 | |
|
10-22-755 | Крышка компрессора Cover, Bearing Drive | 11 650 ₽ |
|
| 30 | 55-2306 | SCREW - cover | 9 | |
| 30-55-2306 | Болт 3/8x1 5/8 | 680 ₽ |
|
|
| 55-896 | FLATWASHER | 6 | ||
| 31 | 22-708 | SCREEN - suction | 1 | |
| 32 | 22-849 | PISTON | 6 | |
|
10-22-849 | Поршень компрессора, к-т, D214/X214/X418/X426/X640 | 6 680 ₽ |
|
| 33 | NSS | HEAD - piston | 1 | |
| 34 | NSS | RING - valve | 1 | |
| 35 | 55-2122 | RING - retaining | 2 | |
| 36 | NSS | PIN - piston | 1 | |
| 37 | 55-895 | FLATWASHER | 1 | |
| 38 | 51-115 | NUT | 1 | |
| 39 | 22-698 | ROD - connecting | 6 | |
| 40 | 11-475 | BUSHING | 6 | |
| 41 | 22-1247 | BEARING - connecting rod | 12 | |
| 42 | 55-5717 | SCREW - connecting rod | 12 | |
| 43 | 22-1100 | SEAL - crankshaft | 1 | |
| US-22-1100 | Сальник коленвала, X426/X430/X640/Scroll T-Series (R404A) | 46 220 ₽ |
|
|
|
10-22-1100 | Сальник коленвала, X426/X430/X640/Scroll T-Series (R404A) | 16 400 ₽ |
|
|
PP-22-1100 | Сальник коленвала, X426/X430/X640/Scroll T-Series (R404A) | 8 700 ₽ |
|
| 33-2746 | O-RING - seal | 1 | ||
| 44 | 22-568 | VALVE - check | 2 | |
|
10-22-568 | Обратный клапан, X426/430/640 | 800 ₽ |
|
| 45 | 22-707 | SCREEN & TUBE - oil pickup | 1 | |
| 46 | 99-4848 | CLAMP - tube | 1 | |
| 10-99-4848 | Зажим | 960 ₽ |
|
|
| 55-291 | NUT - clamp | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 47 | 33-2205 | O-RING | 1 | |
| 48 | 99-9174 | BRACKET - tube | 1 | |
| 49 | 55-165 | SCREW - bracket | 2 | |
| 55-366 | LOCKWASHER | 2 | ||
| 50 | 22-653 | VALVE - check | 3 | |
| 10-22-653 | Обратный клапан, X214/418/426/430/640 | 1 830 ₽ |
|
|
| 51 | 33-822 | O-RING - sight glass | 2 | |
| 10-33-822 | О-ринг смотрового окна, X214/X426/X430 | 290 ₽ |
|
|
| 52 | 22-350 | SIGHT GLASS | 2 | |
| 10-22-350 | Окно уровня масла, X214/418/426/430 | 3 730 ₽ |
|
|
| 53 | 55-6750 | PLUG - oil fill | 1 | |
| 10-55-6750 | Пробка | 1 660 ₽ |
|
|
| 54 | 55-381 | FLATWASHER | 1 | |
| 55 | 11-5513 | VALVE (Schrader) | 1 | |
| 55-1983 | CAP - valve | 1 | ||
| 56 | 22-697 | COVER - pump | 1 | |
| 57 | 55-681 | SCREW - cover (5/16) | 2 | |
| 10-55-681 | Болт масляного насоса компрессора | 530 ₽ |
|
|
| 58 | 55-183 | SCREW - pump (3/8) | 8 | |
| 10-55-183 | Болт масляного насоса компрессора 3/8-16 x 1/4 lg | 550 ₽ |
|
|
| 55-896 | FLATWASHER (3/8) | 8 | ||
| 59 | 22-784 | REGULATOR - oil pressure | 1 | |
|
10-22-784 | Регулятор давления масла, X214/426/430/640 | 3 440 ₽ |
|
| 60 | 33-239 | O-RING | 1 | |
| 33-239 OEM | О-ринг крышки масляного насоса компрессора X214/426/430 | 60 ₽ |
|
|
| 61 | 55-4211 | PIN - dowel | 1 | |
| 62 | 33-1175 | O-RING - oil pump cover | 1 | |
|
10-33-1175 | О-ринг крышки масляного насоса компрессора X214/426/430 | 280 ₽ |
|
| 63 | 22-1160 | PUMP - oil | 1 | |
|
22-1160 OEM | Масляный насос компрессора X214/418/426/430/640 | 18 400 ₽ |
|
|
10-22-1160 | Масляный насос компрессора X214/418/426/430/640 | 17 150 ₽ |
|
| PP-22-1160 | Масляный насос компрессора X214/418/426/430/640 | 10 020 ₽ |
|
|
| 64 | 22-1149 | SHAFT - oil pump | 1 | |
|
10-22-1149 | Вал масляного насоса, X214/418/426/430/640 | 6 570 ₽ |
|
| 65 | 33-1223 | O-RING | 1 | |
| 203-513 | OIL - compressor | 1 | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 203-518 | KIT - acid test (polyol ester kit) | 1 |
