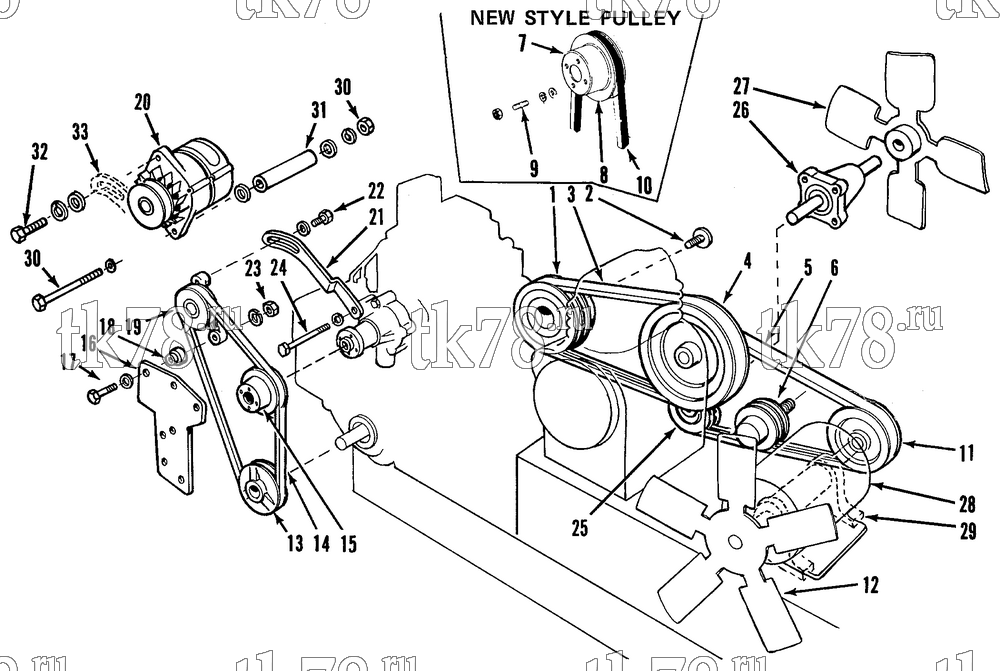

Установкa Thermo King MD-I схема BELTS, PULLEYS & FAN GROUP – 49D5
Обновление от: 7/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 107-349 | CLUTCH (see 145F4) | 1 | |
|
10-107-349 | Сцепление, MD/RD/KD/T-Series | 98 400 ₽ |
|
|
PP-107-349 | Сцепление, MD/RD/KD/T-Series | 47 550 ₽ |
|
| 2 | 55-4589 | STUD | 1 | |
| 3 | 78-432 | BELT - engine to compressor | 1 | |
| 4 | 77-1659 | PULLEY - compressor | 1 | |
| 55-153 | SCREW | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-455 | KEY - woodruff | 1 | ||
|
10-55-455 | Шпонка коленвала, D214/X214 | 290 ₽ |
|
| 5 | 78-436 | BELT - motor (jackshaft) to compressor | 1 | |
| 10-78-436 | Ремень электромотор - компрессор, MD/RD/TD-I | 5 100 ₽ |
|
|
| 6 | 77-1446 | PULLEY - idler | 1 | |
| 7 | 99-4571 | BRACKET | 1 | |
| 77-1427 | SHIM (1 mm) | A/R | ||
| 77-2752 | SHIM (0.5 mm) | A/R | ||
| 8 | 99-4573 | SPACER | A/R | |
| 9 | 55-3138 | NUT | 2 | |
| 55-312 | NUT | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-4750 | NUT | 4 | ||
| 10 | 78-513 | BELT | 1 | |
| 11 | 77-1308 | PULLEY | 1 | |
| 77-1181 | BUSHING | 1 | ||
| 55-140 | SCREW | 3 | ||
| 55-366 | LOCKWASHER | 3 | ||
| 12 | 78-445 | FAN | 1 | |
| 55-153 | SCREW | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 13 | 77-1435 | PULLEY - crankshaft | 1 | |
| 14 | 78-503 | BELT | 1 | |
| 10-78-503 | Ремень водяной помпы, MD/KD/RD-I | 4 460 ₽ |
|
|
| 15 | 77-1311 | PULLEY | 1 | |
| 16 | 13-508 | PUMP - water | 1 | |
|
10-13-508 | Водяной насос, Yanmar 235 / 353, KD/MD/RD/TD-I / URD | 14 920 ₽ |
|
|
PP-13-508 | Водяной насос, Yanmar 235 / 353, KD/MD/RD/TD-I / URD | 7 560 ₽ |
|
| 17 | 55-4612 | BOLT | 1 | |
| 18 | 55-4660 | SPACER | 1 | |
| 20 | 44-6266 | ALTERNATOR (after 1/84) | 1 | |
|
10-44-6266 | Генератор 37A 12V | 32 740 ₽ |
|
| 44-3325 | ALTERNATOR (before 1/84) | 1 | ||
| US-44-3325 | Генератор 35A/12V | 35 130 ₽ |
|
|
|
10-44-3325 | Генератор 35A/12V | 28 440 ₽ |
|
| 21 | 11-5049 | ADJUSTER | 1 | |
| 22 | 55-1140 | SCREW | 1 | |
| 55-4613 | WASHER | 1 | ||
| 23 | 55-4621 | NUT | 1 | |
| 55-790 | LOCKWASHER | 1 | ||
| 24 | 55-4654 | BOLT | 1 | |
| 55-790 | LOCKWASHER | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 25 | 77-1430 | PULLEY | 1 | |
| 55-513 | KEY - woodruff | 1 | ||
| 26 | 78-443 | FANSHAFT - assembly | 1 | |
| 27 | 78-450 | FAN - evaporator | 1 | |
| 28 | 104-465 | MOTOR (230/1/60) | 1 | |
| 104-537 | MOTOR (230/3/60) | 1 | ||
| 29 | 77-1011 | JACKSHAFT | 1 | |
| 30 | 55-4729 | SCREW | 1 | |
| 55-2038 | FLATWASHER | 1 | ||
| 55-365 | LOCKWASHER | 1 | ||
| 55-314 | NUT | 1 | ||
| 31 | 55-4728 | SPACER | 1 | |
| 32 | 55-2969 | SCREW | 1 | |
| 55-371 | FLATWASHER | 4 | ||
| 33 | 11-5063 | ARM - alternator adjusting | 1 | |
| 40-275 | KIT - alternator installation | 1 |
