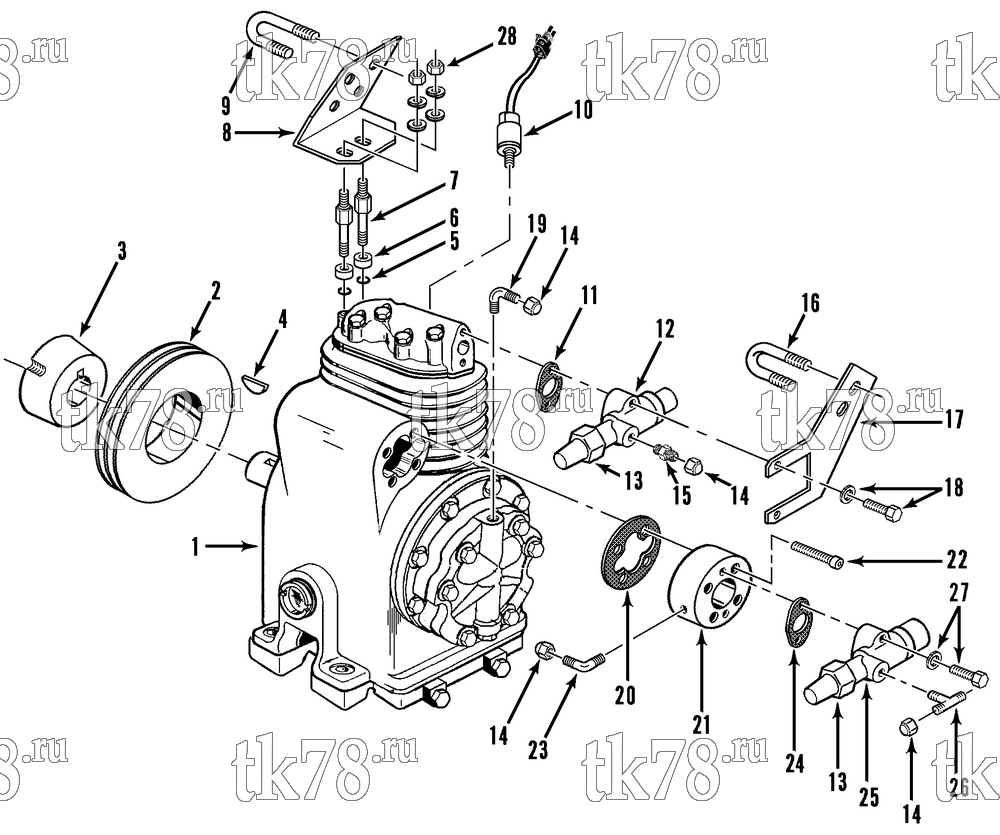

Установкa Thermo King LND-II EMEIA w/TK 3.95 Engine схема COMPRESSOR GROUP – 141B4
Обновление от: 12/6/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-476 | COMPRESSOR - X214 (R403B, see 107E2) | 1 | |
| 102-626 | COMPRESSOR - X214 (R134a & R404A, see 141B12) | 1 | ||
| 2 | 77-2360 | PULLEY - compressor | 1 | |
| 3 | 77-2537 | BUSHING | 1 | |
| 70-184 | KIT - screws & washers | 1 | ||
| 4 | 55-455 | KEY | 1 | |
|
10-55-455 | Шпонка коленвала, D214/X214 | 290 ₽ |
|
| 5 | 33-2019 | O-RING | 2 | |
|
10-33-2019K | Набор уплотнителей болтов головки компрессора (24шт) | 2 280 ₽ |
|
|
10-33-2019 | Уплотнитель болта головки компрессора | 510 ₽ |
|
| 6 | 55-6804 | WASHER - sealing | 2 | |
| 7 | 55-7359 | BOLT | 2 | |
| 8 | 91-3987 | BRACKET - mounting | 1 | |
| 9 | 55-7688 | U-BOLT | 1 | |
| 55-4665 | FLATWASHER | 2 | ||
| 55-7011 | NUT | 2 | ||
| 10 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 11 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 12 | 66-3942 | VALVE - discharge | 1 | |
| 13 | 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | |
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-350 | GASKET - cap | 1 | ||
| 14 | 55-1983 | CAP - flare | 5 | |
| 15 | 55-459 | COUPLING | 1 | |
| 203-393 | SEALER - thread (red) | A/R | ||
| 16 | 55-7389 | U-BOLT | 1 | |
| 55-7089 | FLATWASHER | 2 | ||
| 55-7034 | NUT | 2 | ||
| 17 | 91-7408 | BRACKET - discharge | 1 | |
| 18 | 55-3674 | SCREW - valve | 2 | |
| 55-402 | FLATWASHER | 2 | ||
| 19 | 11-5513 | VALVE - port | 1 | |
| 20 | 33-211 | GASKET - adapter | 1 | |
|
33-211 OEM | Прокладка компрессора | 1 720 ₽ |
|
|
30-33-211 | Прокладка | 510 ₽ |
|
| 21 | 22-844 | ADAPTER - suction valve | 1 | |
| 22 | 55-5979 | SCREW - adapter | 4 | |
| 23 | 55-308 | ELBOW | 1 | |
| 24 | 33-2541 | GASKET - valve | 1 | |
| 25 | 66-3576 | VALVE - suction | 1 | |
| 26 | 55-1803 | TEE | 1 | |
| 203-393 | SEALER - thread (red) | A/R | ||
| 27 | 55-201 | SCREW - valve | 2 | |
| 55-371 | FLATWASHER | 2 | ||
| 28 | 55-289 | NUT - bracket | 2 | |
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 |
