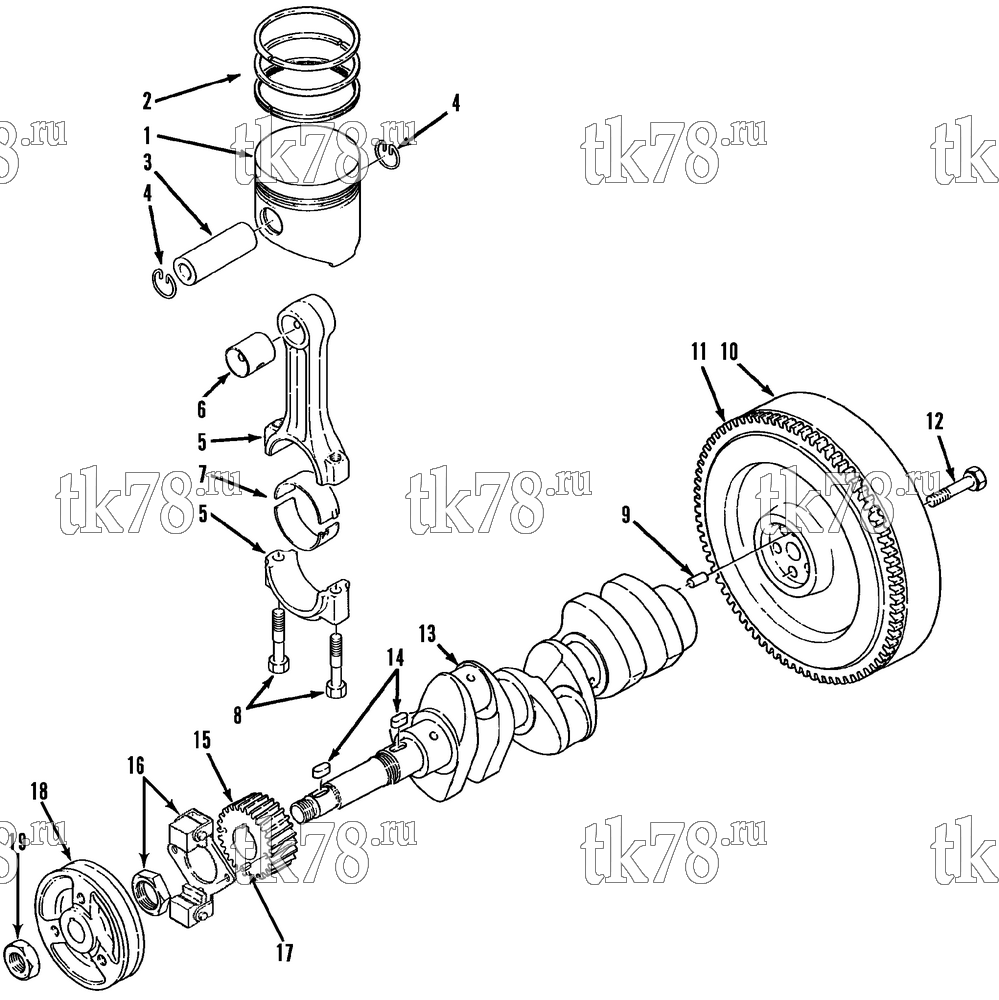

Установкa Thermo King LND 30 & 50 схема CRANKSHAFT GROUP – 67A6
Обновление от: 2/4/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-5248 | PISTON (incl 2-4) | 3 | |
|
10-11-5248 | Поршень к-т, Yanmar 235, 353, KD/MD/RD/TD-I / UMD/URD | 10 080 ₽ |
|
| 2 | 11-5106 | RING SET - piston | 3 | |
|
10-11-5106 | Кольца поршневые к-т, Std. (на 1 поршень), Yanmar 235, 353 | 3 960 ₽ |
|
| 3 | 11-5107 | PIN - piston | 3 | |
| 4 | 11-5108 | CIRCLIP | 6 | |
| 5 | 11-5040 | ROD - connecting rod (incl 6-8) | 3 | |
|
10-11-5040 | Шатун, Yanmar 235, 353 | 36 510 ₽ |
|
| 6 | 11-5459 | BUSHING - finished | 3 | |
|
10-11-5459 | Втулка шатуна, Yanmar 235, 353 | 1 710 ₽ |
|
| 11-8614 | BUSHING - unfinished | 3 | ||
| 7 | 11-5043 | BEARING - connecting rod | 3 | |
| 10-11-5043 | Вкладыш шатунный STD, Yanmar 235 / 353 | 4 350 ₽ |
|
|
| 11-5195 | BEARING - connecting rod (0.25 mm us) | 3 | ||
|
10-11-5195 | Вкладыш шатунный, 0.25, Yanmar 235, 353 | 2 700 ₽ |
|
| 8 | 11-5042 | BOLT - connecting rod | 6 | |
| 9 | 55-4599 | PIN - dowel | 1 | |
| 10 | 11-7040 | FLYWHEEL (incl gear ring, see 67A10) | 1 | |
| 77-2856 | BUSHING | 6 | ||
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
| 11 | 11-7031 | GEAR - ring | 1 | |
|
10-11-7031 | Зубья маховика, Yanmar 235, 249, 353, 366, 374, 388, 395 | 28 550 ₽ |
|
| 12 | 11-5038 | BOLT - flywheel | 5 | |
| 13 | 11-5503 | CRANKSHAFT | 1 | |
|
10-11-5503 | Коленвал, Yanmar 353 | 167 190 ₽ |
|
| 14 | 11-5487 | KEY - gear & pulley | 2 | |
| 15 | 11-5032 | GEAR - crankshaft | 1 | |
| 16 | 11-5057 | SUPPORT & NUT - governor | 1 | |
| 17 | 11-5036 | PIN - spring | 2 | |
| 18 | 77-1436 | PULLEY | 1 | |
| 19 | 11-5035 | NUT | 1 |
