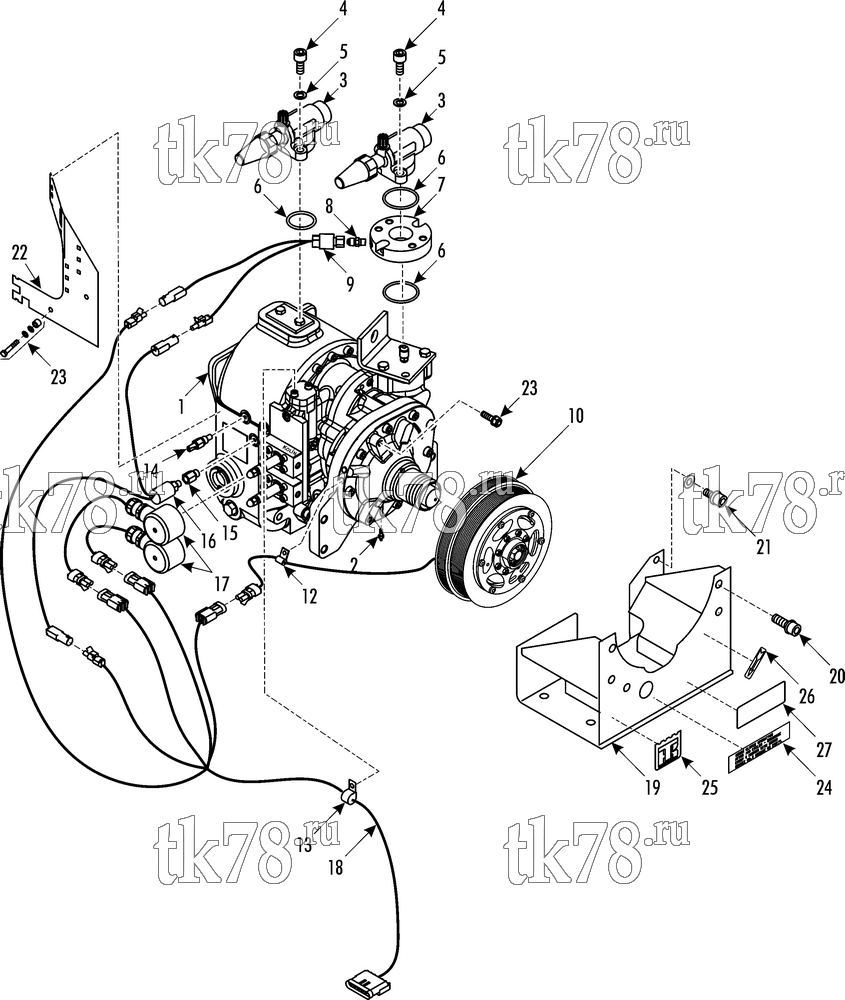

Установкa Thermo King KRS Plus схема COMPRESSOR GROUP (1E52329G01/G02, KIT 701604, 701605) – 233A0
Обновление от: 10/20/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-970 | COMPRESSOR - assembly (see 240H1) | 1 | |
| 2 | 55-2387 | FITTING - lubrication | 1 | |
| 3 | 66-5492 | VALVE - service | 2 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 2 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 2 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 4 | 55-9726 | SCREW - valve | 4 | |
| 5 | 55-4625 | FLATWASHER | 4 | |
| 6 | 33-230 | O-RING - valve/spacer (1.875 id) | 3 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 7 | 22-1178 | SPACER - suction valve | 1 | |
| 55-9731 | SCREW - spacer | 2 | ||
| 8 | 55-7213 | ADAPTER - switch | 1 | |
| 9 | 41-4147 | SWITCH - lpco (for R134a, for connectors see 115D14) | 1 | |
| 41-4530 | SWITCH - only (for R134a) | 1 | ||
| 41-4209 | SWITCH - lpco (for R407C, for connectors see 115D14) | 1 | ||
| 41-5183 | SWITCH - only (for R407C) | 1 | ||
| 10 | 77-2938 | PULLEY - clutch (243OD 9K/6K) | 1 | |
| 11 | 55-3451 | STUD - clutch | 3 | |
| 55-790 | LOCKWASHER | 3 | ||
| 55-789 | NUT | 3 | ||
| 12 | 55-9811 | CLAMP (0.25 dia) | 1 | |
| 55-736 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 13 | 51-176 | CLAMP - harness | 1 | |
| 55-7172 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 14 | 41-3827 | SENSOR - thermistor (for connectors see 115D14) | 1 | |
| 33-3381 | O-RING - thermistor | 1 | ||
| 15 | 55-9730 | ADAPTER | 1 | |
| 33-3381 | O-RING - adapter (3/8 in id) | 1 | ||
| 16 | 41-4146 | SWITCH - hpco (for R134a, for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only (for R134a) | 1 | ||
| 41-4486 | SWITCH - hpco (for R407C, for connectors see 115D14) | 1 | ||
| 41-4809 | SWITCH - only (for R407C) | 1 | ||
| 17 | 41-5213 | COIL - solenoid (for connectors see 115D14) | 2 | |
| 18 | 41-4205 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 44-5763 | DIODE | 3 | ||
| 19 | 92-1309 | BRACKET - mounting | 1 | |
| 55-4931 | WASHER - special (0.406 id) | 4 | ||
| 20 | 55-9726 | SCREW - bracket | 4 | |
| 55-6283 | LOCKWASHER | 4 | ||
| 21 | 55-9727 | SCREW - bracket | 3 | |
| 55-7072 | FLATWASHER | 3 | ||
| 55-1173 | LOCKWASHER | 3 | ||
| 22 | 92-5704 | BRACKET - mounting | 1 | |
| 23 | 55-2957 | SCREW - bracket | 2 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-8979 | INSERT | 2 | ||
| 24 | 99-7517 | NAMEPLATE - Clutch Maintenance | 1 | |
| 25 | 91-3247 | NAMEPLATE - TK logo | 1 | |
| 26 | 99-9084 | NAMEPLATE - Arrow | 1 | |
| 27 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 91-7846 | NAMEPLATE - R407C | 1 |
