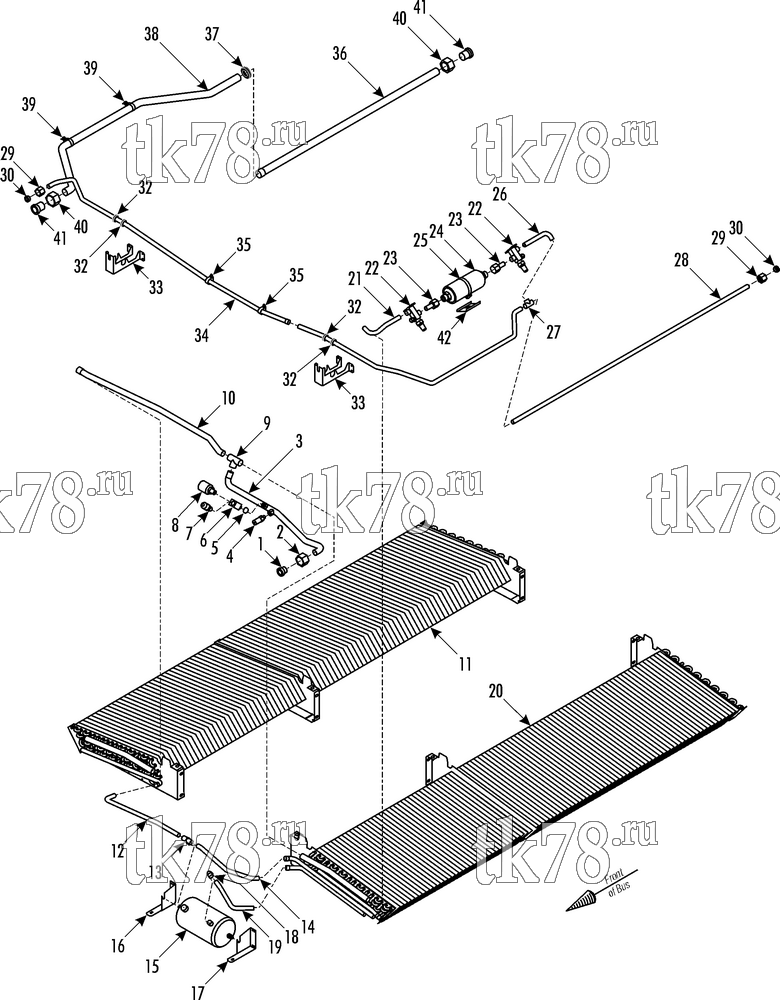

Установкa Thermo King AP-II X 1012 схема REFRIGERATION COMPONENTS - CONDENSER – 168G0
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9339 | SLEEVE - adapter | 1 | |
| 2 | 55-5936 | NUT - bulkhead | 1 | |
| 3 | 66-9912 | TUBE - suction | 1 | |
| 55-7535 | SADDLE - fitting | 1 | ||
| 66-4553 | SADDLE - fitting | 1 | ||
| 4 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 5 | 33-1015 | O-RING - tee special | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 6 | 55-665 | TEE - special | 1 | |
| 7 | 11-2886 | VALVE - pressure (see 119G12) | 1 | |
| 8 | 44-7991 | SWITCH - hpco | 1 | |
| 9 | 55-6174 | TEE | 1 | |
| 10 | 61-1482 | TUBE - tee to coil (right) | 1 | |
| 11 | 67-1833 | COIL - condenser (curbside) | 1 | |
| 12 | 61-1483 | TUBE - coil to tee | 1 | |
| 13 | 55-7065 | TEE | 1 | |
| 14 | 66-9917 | TUBE - tee to coil (left) | 1 | |
| 15 | 67-1520 | TANK - receiver | 1 | |
| 55-7085 | FLATWASHER | 4 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7825 | NUT - receiver tank | 2 | ||
| 16 | 92-2005 | SUPPORT - receiver tank | 1 | |
| 17 | 92-2006 | SUPPORT - receiver tank | 1 | |
| 18 | 55-3441 | ELBOW - receiver tank | 1 | |
| 19 | 61-1484 | TUBE - elbow to coil | 1 | |
| 20 | 67-1825 | COIL - condenser (roadside) | 1 | |
| 21 | 61-1485 | TUBE - coil to valve | 1 | |
| 22 | 66-2104 | VALVE - shutoff | 2 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 2 | ||
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
| 55-7340 | SCREW - valve | 8 | ||
| 55-7171 | LOCKWASHER | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT - valve | 8 | ||
| 23 | 66-9979 | TUBE - assembly | 2 | |
| 66-9913 | TUBE | 2 | ||
| 55-6396 | NUT - shoulder | 2 | ||
| 55-6356 | SHOULDER | 2 | ||
| 24 | 66-9352 | DEHYDRATOR - filter/drier | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 33-1223 | O-RING | 2 | ||
| 25 | 55-2688 | CLAMP - dehydrator | 1 | |
| 26 | 61-1486 | TUBE - valve to tee | 1 | |
| 27 | 55-904 | TEE | 1 | |
| 28 | 61-1487 | TUBE - tee to nut | 1 | |
| 29 | 55-6396 | NUT - shoulder | 2 | |
| 30 | 55-6356 | SHOULDER | 2 | |
| 31 | 61-1488 | TUBE | 1 | |
| 32 | 33-367 | GROMMET (0.625 id) | 4 | |
| 33 | 91-9873 | HOLDER - tube | 2 | |
| 34 | 61-1489 | TUBE - to nut | 1 | |
| 35 | 91-758 | CLAMP - tube | 2 | |
| 55-7088 | SCREW - clamp | 2 | ||
| 55-7033 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT - clamp | 2 | ||
| 36 | 61-1490 | TUBE | 1 | |
| 37 | 33-2023 | GROMMET (1.125 id) | 1 | |
| 38 | 61-1491 | TUBE | 1 | |
| 39 | 55-3234 | CLAMP - tube | 2 | |
| 55-7089 | FLATWASHER | 2 | ||
| 55-7826 | SCREW - clamp | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT - clamp | 2 | ||
| 40 | 55-5935 | NUT - shoulder | 2 | |
| 41 | 55-5939 | SLEEVE - adapter | 2 | |
| 42 | 91-9150 | BRACKET - dehydrator | 1 |
