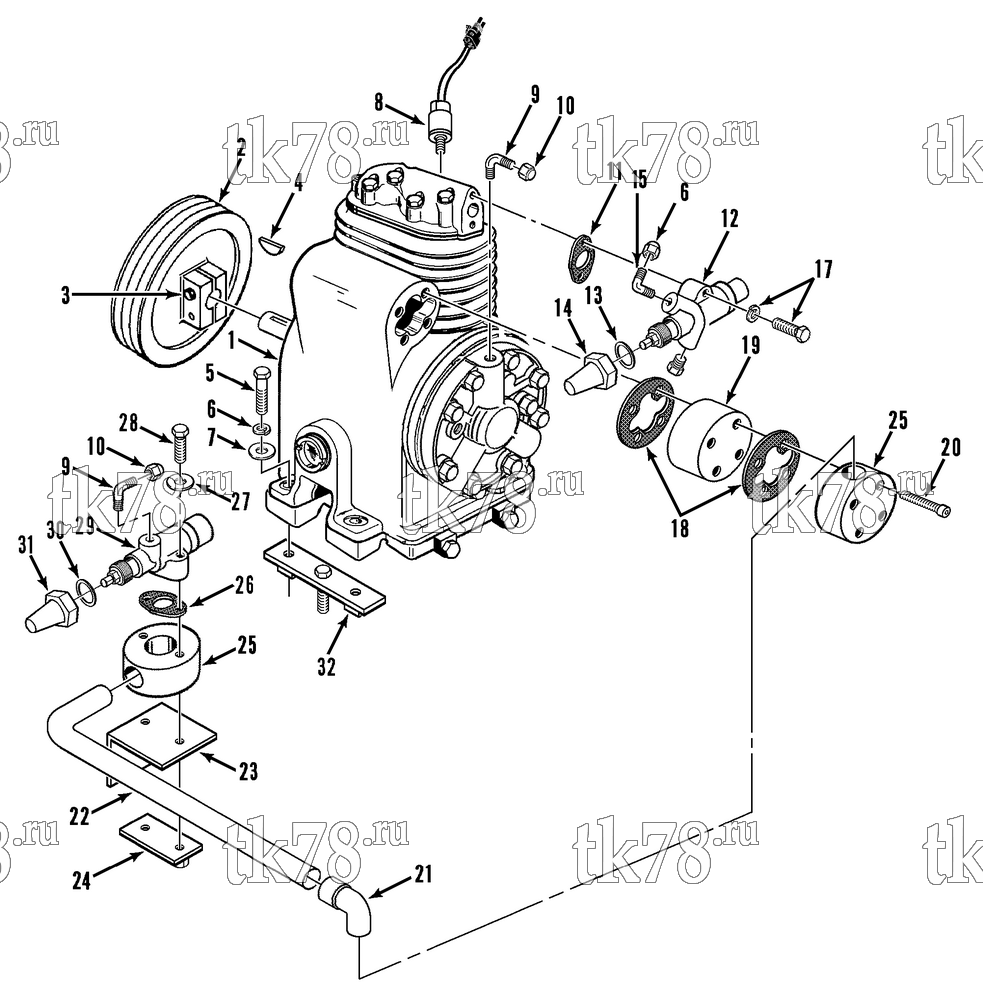

Установкa Thermo King схема COMPRESSOR GROUP – 125F10
Обновление от: 8/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-476 | COMPRESSOR - X214 (R12, R502, R403b, see 107E2) | 1 | |
| 8102-477 | COMPRESSOR - X214 (new exchange, R134a & R404a, see 111E4) | 1 | ||
| 8102-477 | COMPRESSOR - X214 (new exchange, R134a & R404a, see 111E4) | |||
| 2 | 77-1916 | PULLEY - compressor | 1 | |
| 3 | 55-9109 | SCREW - pulley | 2 | |
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 4 | 55-455 | KEY | 1 | |
|
10-55-455 | Шпонка коленвала, D214/X214 | 290 ₽ |
|
| 5 | 55-5208 | SCREW - compressor | 4 | |
| 6 | 55-2200 | LOCKWASHER | 4 | |
| 7 | 55-399 | FLATWASHER | 4 | |
| 8 | 44-7992 | SWITCH - hpco (R12 & R134a) | 1 | |
| 41-3846 | SWITCH - hpco (R404A & R502) | 1 | ||
| 44-9137 | SWITCH - hpco (R134a) | 1 | ||
| 9 | 66-8928 | VALVE | 2 | |
| 33-1461 | O-RING - hose | 1 | ||
| 10 | 66-9387 | CAP | 2 | |
| 11 | 33-2805 | GASKET - valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 12 | 22-188 | VALVE - discharge | 1 | |
|
10-22-188 | Клапан, Discharge | 8 260 ₽ |
|
| 13 | 66-343 | CAP - valve | 1 | |
| 14 | 55-581 | GASKET - cap | 1 | |
| 15 | 11-2886 | VALVE | 1 | |
| 16 | 55-5672 | CAP | 1 | |
| 17 | 55-2306 | SCREW - valve | 2 | |
| 30-55-2306 | Болт 3/8x1 5/8 | 680 ₽ |
|
|
| 55-896 | FLATWASHER | 2 | ||
| 55-7411 | WASHER - special | 2 | ||
| 18 | 33-211 | GASKET - adapter | 2 | |
|
33-211 OEM | Прокладка компрессора | 1 720 ₽ |
|
|
30-33-211 | Прокладка | 510 ₽ |
|
| 19 | 22-719 | ADAPTER - suction valve | 1 | |
| 20 | 55-2704 | SCREW - adapter | 4 | |
| 55-3252 | FLATWASHER | 4 | ||
| 21 | 55-1122 | ELBOW | 1 | |
| 22 | 66-6855 | TUBE - valve to compressor | 1 | |
| 23 | 91-4753 | BRACKET - valve & adapter | 1 | |
| 24 | 91-4754 | NUTSTRIP | 1 | |
| 25 | 22-834 | ADAPTER - suction valve | 1 | |
| 26 | 33-2541 | GASKET - valve | 2 | |
| 27 | 55-895 | FLATWASHER | 2 | |
| 28 | 55-153 | SCREW - valve (5/16-18 x 1-3/4) | 2 | |
| 55-5599 | SCREW - valve (5/16-18 x 3-1/4) | 2 | ||
| 29 | 66-8186 | VALVE - suction | 1 | |
| 30 | 33-3007 | GASKET - plastic cap | 1 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 33-350 | GASKET - brass cap | 1 | ||
| 31 | 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | |
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
| 66-3015 | CAP - valve (brass, incl gasket) | 1 | ||
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
| 32 | 91-1720 | NUTSTRIP - compressor (3/4 in screw) | 1 | |
| 91-4751 | NUTSTRIP - compressor (1 in screw) | 1 |
