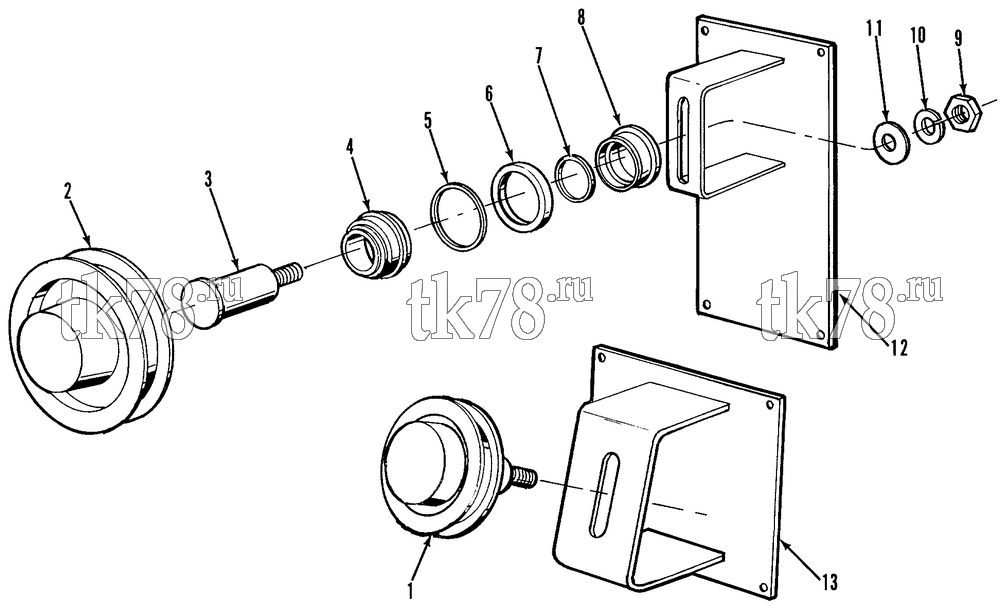

Установкa Thermo King XNWD 30 5100 & 5200 схема IDLER PULLEY GROUP – 33A5
Обновление от: 3/7/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-1441 | PULLEY - idler | 1 | |
| 2 | 77-1440 | PULLEY - idler | 1 | |
| 3 | 77-1139 | SPINDLE - pulley | 1 | |
| 4 | 77-2389 | BEARING - set | 1 | |
| 77-2389 OEM | Подшипник | 4 430 ₽ |
|
|
| 10-77-2389 | Подшипник промежуточного вала SMX / SL | 2 140 ₽ |
|
|
| 5 | 55-3940 | RING - retaining | 1 | |
| 6 | 33-1161 | SEAL - assembly | 1 | |
|
10-33-1161 | Сальник (SB-I) | 1 140 ₽ |
|
| 7 | 33-1162 | O-RING | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 8 | 33-1163 | RING - seal | 1 | |
| 9 | 55-314 | NUT - pulley | 2 | |
| 10 | 55-365 | LOCKWASHER | 2 | |
| 11 | 55-1052 | WASHER | 2 | |
| 12 | 99-4237 | BRACKET - idle (upper) | 1 | |
| 55-789 | NUT - bracket | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-3289 | FLATWASHER | 4 | ||
| 13 | 99-4236 | BRACKET - idle (lower) | 1 | |
| 55-789 | NUT - bracket | 4 | ||
| 55-3289 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 |
