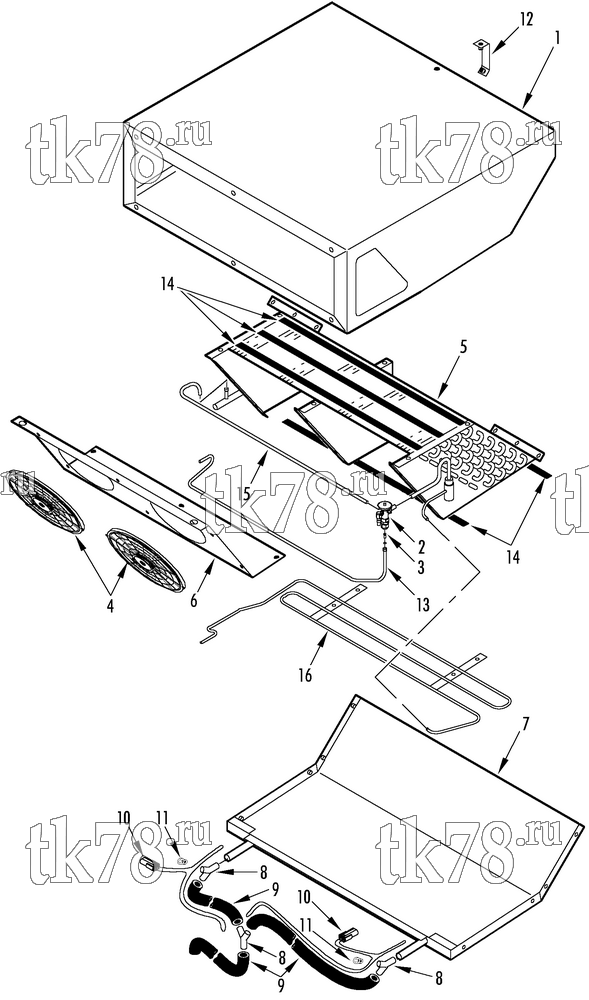

Установкa Thermo King VM-400 10 & 20 схема EVAPORATOR COMPONENTS – 155E9
Обновление от: 4/12/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5649 | HOUSING - evaporator | 1 | |
| 2 | 66-9314 | VALVE - expansion (VM-400 MAX) | 1 | |
|
66-9314 OEM | ТРВ, V/VM-Series MAX (R404A) | 31 890 ₽ |
|
| 66-9311 | VALVE - expansion (VM-400) | 1 | ||
| 3 | 61-1126 | NOZZLE - expansion valve | 1 | |
| 203-534 | TAPE - insulation | A/R | ||
| 4 | 78-1187 | FAN & MOTOR - evaporator (12V) | 1 | |
| 10-78-1187 | Вентилятор испарителя 12V, V-520/VM-4XX | 10 220 ₽ |
|
|
|
P-54-00598-03 | Вентилятор испарителя 12V, Viento | 10 220 ₽ |
|
|
PP-54-00598-03 | Вентилятор испарителя 12V, Viento | 4 870 ₽ |
|
| PP-78-1187 | Вентилятор испарителя 12V, V-520/VM-4XX | 4 870 ₽ |
|
|
| 78-1188 | FAN & MOTOR - evaporator (24V) | 2 | ||
| 10-78-1188 | Вентилятор испарителя 24V, VM-Series | 11 220 ₽ |
|
|
| P-54-00598-13 | Вентилятор испарителя 24V, Viento | 11 220 ₽ |
|
|
|
PP-78-1188 | Вентилятор испарителя 24V, VM-Series | 4 570 ₽ |
|
|
PP-54-00598-13 | Вентилятор испарителя 24V, Viento | 4 570 ₽ |
|
| 55-7036 | SCREW - fan | 8 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 55-7089 | FLATWASHER | 8 | ||
| 5 | 67-1620 | COIL - evaporator | 1 | |
| 6 | 98-5650 | PLENUM - evaporator | 1 | |
| 55-7172 | SCREW - evaporator compartment (M6) | 35 | ||
| 55-9353 | WASHER (M6) | 35 | ||
| 55-7340 | SCREW - evaporator compartment (M5) | 7 | ||
| 55-9354 | WASHER (M5) | 9 | ||
| 7 | 98-5651 | PAN - drain | 1 | |
| 8 | 55-9258 | TEE - hose | 3 | |
| 9 | 11-9223 | HOSE - drain | A/R | |
| 10 | 41-3156 | HARNESS - drain tube heater | 2 | |
| 11 | 33-2801 | GROMMET - drain hose | 2 | |
| 12 | 91-9988 | BRACE - reinforcement | 1 | |
| 13 | 66-9964 | TUBE - liquid | 1 | |
| 14 | 91-9989 | STRIP - foam tape | 5 | |
| 15 | 66-9965 | TUBE - equalizer | 1 | |
| 16 | 66-9963 | TUBE - drain pan | 1 |
