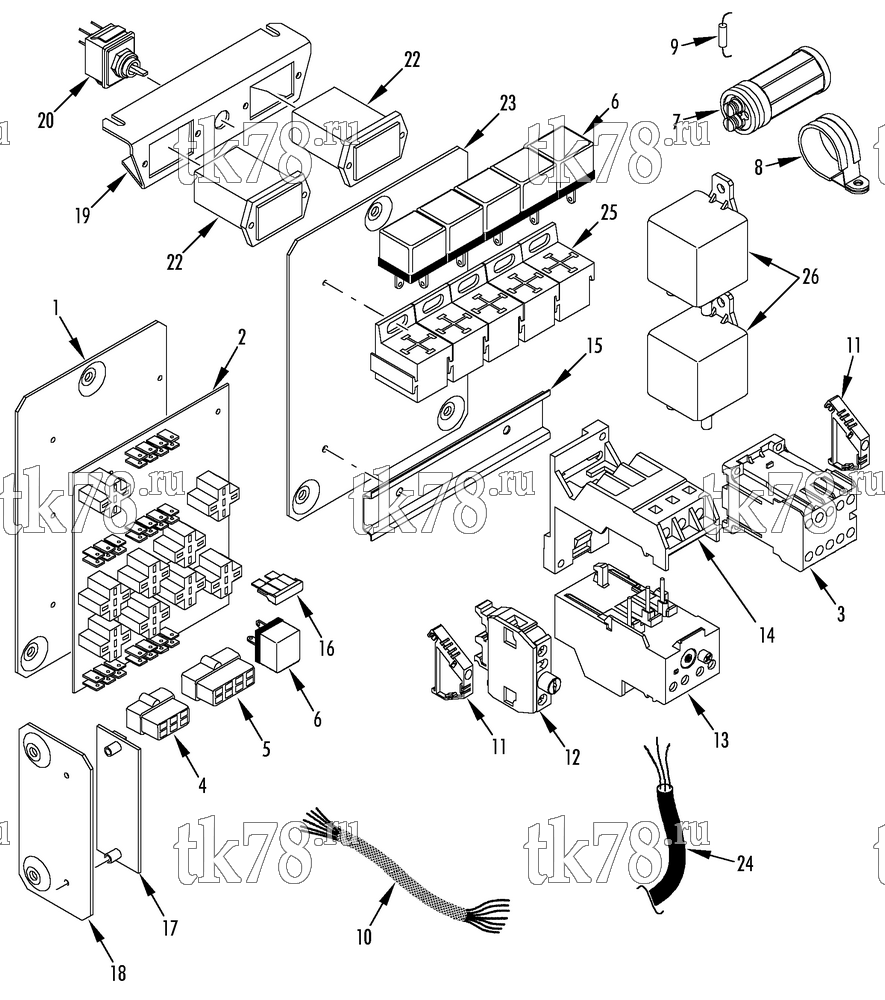

Установкa Thermo King V-700 MAX 50 схема CONTROL BOX (V-700 MAX) – 185A7
Обновление от: 3/18/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-1899 | BRACKET - control box | 1 | |
| 55-7089 | FLATWASHER | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7367 | NUT | 3 | ||
| 2 | 41-4372 | BOARD - printed circuit (N20.1, 3 phase) | 1 | |
| 55-9911 | SCREW - board | 6 | ||
| 55-7089 | FLATWASHER | 6 | ||
| 3 | 41-1005 | CONTACTOR (24V) | 1 | |
| 4 | 41-876 | CONNECTOR (6-pin) | 4 | |
| 5 | 41-946 | CONNECTOR (8-pin) | 4 | |
| 6 | 41-3707 | RELAY (24V) | 15 | |
| 7 | 41-2992 | CAPACITOR (24V) | 2 | |
| 41-3134 | JUMPER - capacitor | 1 | ||
| 8 | 55-9494 | CLAMP - capacitor | 1 | |
| 55-7075 | FLATWASHER | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 9 | 44-9925 | RESISTOR | 1 | |
| 10 | 41-5253 | HARNESS - condenser | 1 | |
| 41-4494 | TERMINAL (female) | A/R | ||
| 41-4496 | TERMINAL - socket (10 amp, 16 gauge) | A/R | ||
| 44-2788 | TERMINAL - fork | A/R | ||
| 44-2792 | TERMINAL - ring (#10, yellow) | A/R | ||
| 44-2793 | TERMINAL - ring (1/4, yellow) | A/R | ||
| 11 | 41-898 | CONNECTOR - end | 2 | |
| 12 | 41-942 | CONNECTOR - fuse | 1 | |
| 41-3661 | FUSE (4 amp, early units) | 1 | ||
| 44-9524 | FUSE (3 amp, current units) | 1 | ||
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 13 | 41-8484 | RELAY - overload (8 to 12 amp) | 1 | |
| 14 | 41-8485 | SOCKET - circuit breaker | 1 | |
| 15 | 92-924 | CHANNEL - din | 1 | |
| 55-9898 | RIVET - channel | 2 | ||
| 16 | 44-9758 | FUSE (10 amp) | 6 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 17 | 41-4889 | BOARD - printed circuit (PE-30.1) | 1 | |
| 55-9911 | SCREW - board | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 18 | 92-2803 | BRACKET - pc board | 1 | |
| 19 | 92-2804 | BRACKET - hourmeter | 1 | |
| 20 | 41-5333 | SWITCH - on/off | 1 | |
| 22 | 44-5703 | HOURMETER | 2 | |
|
10-44-5703 | Счетчик часов | 6 030 ₽ |
|
| 55-7863 | SCREW - hourmeter | 4 | ||
| 55-7830 | FLATWASHER | 4 | ||
| 55-7864 | NUT | 4 | ||
| 23 | 92-2354 | BRACKET - contactor & relays | 1 | |
| 24 | 41-5256 | HARNESS - compressor | 1 | |
| 25 | 44-5537 | SOCKET - relay (part of harness 41-5253, item 11) | 1 | |
| 26 | 41-4668 | RELAY - battery & standby power | 2 |
