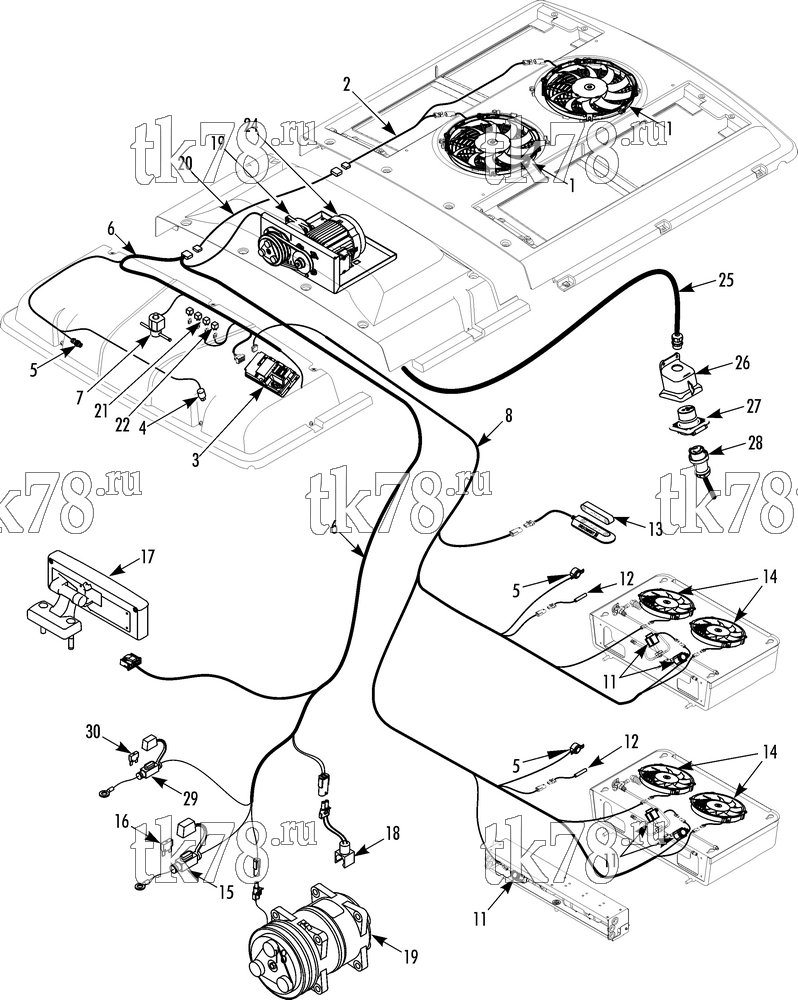

Установкa Thermo King V-520 RT SPECTRUM схема ELECTRICAL COMPONENTS SPECTRUM – 259F9
Обновление от: 6/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1187 | FAN - condenser (12V, see 251F3) | 2 | |
| 10-78-1187 | Вентилятор испарителя 12V, V-520/VM-4XX | 10 220 ₽ |
|
|
|
P-54-00598-03 | Вентилятор испарителя 12V, Viento | 10 220 ₽ |
|
|
PP-54-00598-03 | Вентилятор испарителя 12V, Viento | 4 870 ₽ |
|
| PP-78-1187 | Вентилятор испарителя 12V, V-520/VM-4XX | 4 870 ₽ |
|
|
| 2 | 41-9920 | HARNESS - condenser fans | 1 | |
| 3 | NSS | MODULE - control box (see 251F7) | 1 | |
| 4 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 5 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 6 | 42-298 | HARNESS - main (20 & 50 units, see 255D5) | 1 | |
| 7 | 66-5908 | SOLENOID - pilot (liquid injection, 12V) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 66-5908 | COIL (12V) | 1 | ||
|
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 8 | 41-9216 | HARNESS - evaporator (see 241D7, SPECTRUM) | 1 | |
| 9 | 41-3136 | SWITCH - defrost termination (see 233E4) | 1 | |
| 10 | 66-7878 | SOLENOID - defrost (see 233E4) | 1 | |
| 11 | 41-5789 | COIL - solenoid (12V) | 5 | |
| 12 | 41-5784 | SENSOR - temperature | 2 | |
| 42-3067 OEM | Датчик температуры, V/C-Series | 13 780 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V/C-Series | 9 420 ₽ |
|
|
| 13 | 40-907 | SWITCH - door | 1 | |
| 14 | 78-1181 | FAN - evaporator (12V, see 233E4) | 4 | |
| 15 | 41-3665 | HOLDER - fuse (unit) | 1 | |
| 16 | 41-3666 | FUSE - unit (60 amp) | 1 | |
| 17 | 45-2072 | CONTROLLER - in cab (see 191A6) | 1 | |
| 18 | 44-9020 | THERMOSTAT (see 233E4/251G3) | 1 | |
| 19 | NSS | COMPRESSOR - TM13-XD (see 189C3) | 1 | |
| NSS | COMPRESSOR - TM15-XD/HD (see 169C2) | 1 | ||
| NSS | COMPRESSOR - TM16-XD (see 179A7) | 1 | ||
| 20 | 42-305 | HARNESS - extension (see 255H6) | 1 | |
| 21 | 41-5788 | RELAY - battery & standby power (1PST, 12V) | 2 | |
| 22 | 41-895 | RELAY - battery disconnect (1PDT, 12V) | 2 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 23 | NSS | CONTROL - electrical (see 255D7) | 1 | |
| 24 | 104-769 | MOTOR (1.5kW, 230/1/60, see 255D8) | 1 | |
| 104-799 | MOTOR (1.8kW, 230/3/60, see 255D8) | 1 | ||
| 25 | 42-299 | CABLE - power (230/1/60) | 1 | |
| 42-300 | CABLE - power (230/3/60) | 1 | ||
| 51-1852 | CONNECTOR - cable grip | 1 | ||
| 55-2636 | NUT - lock | 1 | ||
| 41-4189 | WASHER - sealing | 1 | ||
| 26 | 41-8292 | BOX - receptacle | 1 | |
| 27 | 42-301 | RECEPTACLE - power (30 amp, 230/1/60) | 1 | |
| 41-8293 | RECEPTACLE - power (30 amp, 230/3/60) | 1 | ||
| 28 | 42-355 | PLUG - power (30 amp, 230/1/60) | 1 | |
| 42-356 | PLUG - power (30 amp, 230/3/60) | 1 | ||
| 29 | 41-3074 | HOLDER - fuse (ignition) | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 30 | 41-4553 | FUSE - ignition (10 amp) | 1 |
