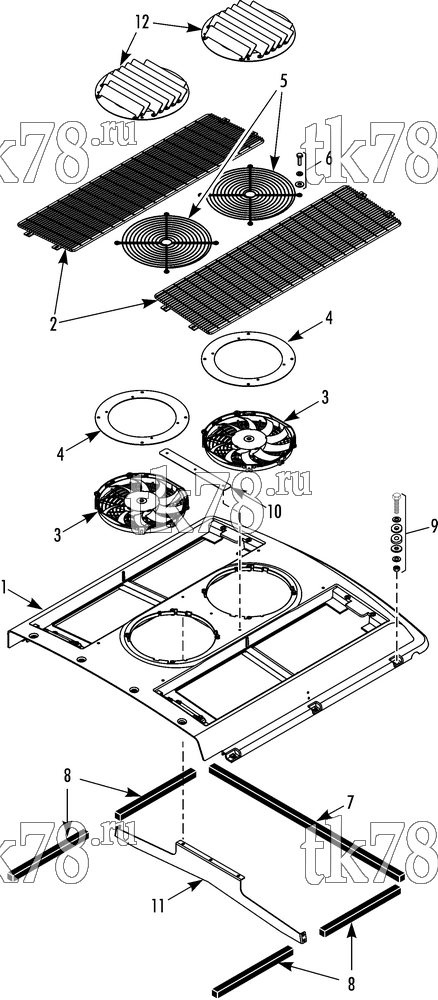

Установкa Thermo King V-520 RT SPECTRUM схема CONDENSER STRUCTURAL & FANS – 251F3
Обновление от: 12/5/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8856 | FRAME - condenser | 1 | |
| 2 | 98-8602 | GRILLE - condenser | 2 | |
| 55-2977 | SCREW - grille | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 3 | 78-1187 | FAN (12V) | 2 | |
| 10-78-1187 | Вентилятор испарителя 12V, V-520/VM-4XX | 10 220 ₽ |
|
|
|
P-54-00598-03 | Вентилятор испарителя 12V, Viento | 10 220 ₽ |
|
|
PP-54-00598-03 | Вентилятор испарителя 12V, Viento | 4 870 ₽ |
|
| PP-78-1187 | Вентилятор испарителя 12V, V-520/VM-4XX | 4 870 ₽ |
|
|
| 4 | 92-9109 | PLATE - mounting | 2 | |
| 55-2979 | SCREW - fan | 8 | ||
| 5 | 98-5425 | GUARD - fan | 2 | |
| 6 | 55-2979 | SCREW - guard | 8 | |
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 7 | 33-4789 | GASKET - frame | 1 | |
| 8 | 33-4790 | GASKET - frame | 4 | |
| 9 | 55-7362 | SCREW - condenser | 6 | |
| 51-372 | WASHER - special | 12 | ||
| 55-9499 | FOOT w/inclined face | 4 | ||
| 55-9500 | COMPENSATOR - foot | 6 | ||
| 51-373 | WASHER (EPDM) | 6 | ||
| 55-7344 | NUT | 6 | ||
| 10 | 92-9417 | PLATE - top | 1 | |
| 11 | 92-9418 | BRACKET - middle | 1 | |
| 55-2977 | SCREW -bracket | 19 | ||
| 55-2086 | FLATWASHER | 19 | ||
| 55-1800 | LOCKWASHER | 19 | ||
| 12 | 92-9437 | COVER - snow (optional) | 2 |
