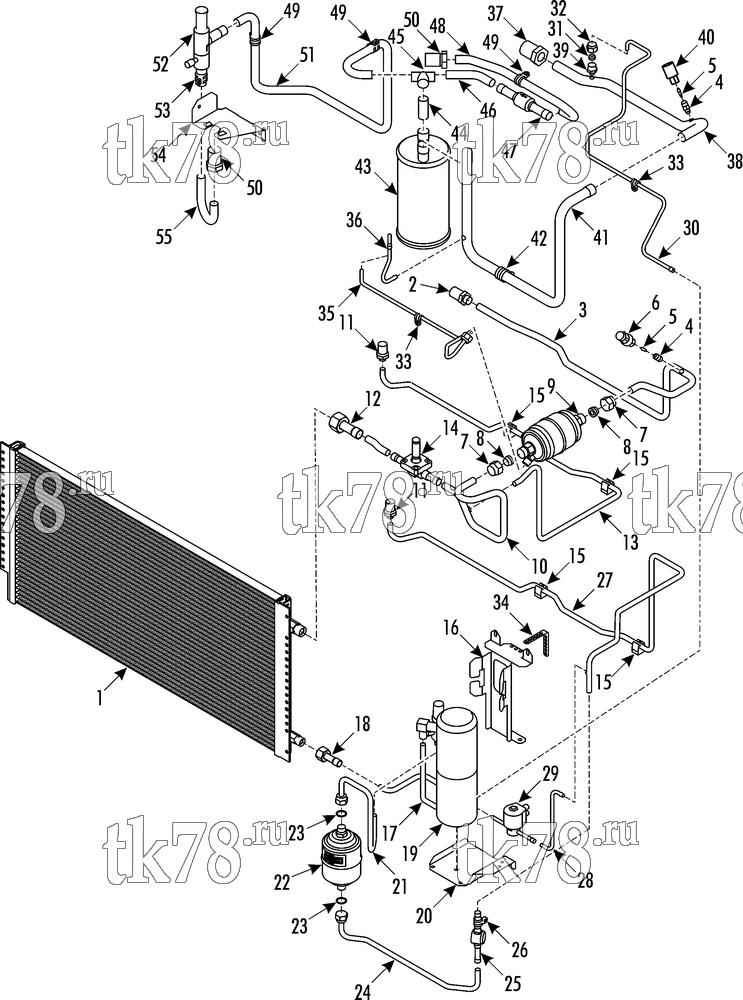

Установкa Thermo King V-500 TC Series DSR схема REFRIGERATION GROUP (V-500 30, 5/09 & after, microchannel coil) – 240B5
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2429 | COIL - condenser (microchannel) | 1 | |
| 51-1924 | RIVET - coil | 4 | ||
| 91-9989 | TAPE - sealant | A/R | ||
| 2 | 61-2726 | FITTING | 1 | |
| 55-9895 | NUT - fitting | 1 | ||
| 3 | 61-2679 | TUBE - fitting to oil separator | 1 | |
| 4 | 61-2504 | PORT - valve | 2 | |
| 5 | 11-7777 | VALVE (Schrader) | 2 | |
| 6 | 41-5781 | TRANSDUCER | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 7 | 61-469 | NUT | 2 | |
| 8 | 61-470 | SHOULDER | 2 | |
| 33-566 | O-RING (1/2 id) | 2 | ||
| 9 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 55-6225 | CLAMP - oil separator | 1 | ||
| 10 | 61-4731 | TUBE - discharge to coil | 1 | |
| 61-4005 | TUBE - separator to coil | 1 | ||
| 11 | 61-2700 | FITTING | 2 | |
| 55-9836 | NUT - fitting | 2 | ||
| 12 | 61-4736 | CONNECTION - condenser coil (inlet) | 1 | |
| 13 | 61-2678 | TUBE - hot gas (t-fitting to evaporator) | 1 | |
| 14 | 66-9032 | VALVE - solenoid (see 193A5) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 55-8720 | SCREW - solenoid | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-9826 | WASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 15 | 92-1894 | SADDLES - tube | 5 | |
| 55-9898 | RIVET - saddles | 5 | ||
| 16 | 92-3838 | SUPPORT - filter | 1 | |
| 55-7340 | SCREW - support | 2 | ||
| 55-9826 | WASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 17 | 61-4728 | TUBE - coil to receiver tank | 1 | |
| 18 | 61-4729 | FITTING - condenser to tube | 1 | |
| 19 | 67-2010 | TANK - receiver | 1 | |
| 10-67-2010 | Бак фреона, V-400/500 | 16 670 ₽ |
|
|
| 55-7339 | NUT - tank | 1 | ||
| 55-9485 | WASHER | 1 | ||
| 20 | 92-3836 | SUPPORT - tank receiver | 1 | |
| 55-7340 | SCREW - support | 1 | ||
| 55-7367 | NUT | 3 | ||
| 55-9826 | WASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 21 | 61-4727 | TUBE - tank receiver to dehydrator | 1 | |
| 22 | 66-8718 | DEHYDRATOR (includes o-rings) | 1 | |
|
14-00326-04 OEM | Дегидратор, Xarios / Zephyr | 4 340 ₽ |
|
|
P-14-00326-04 | Дегидратор, Xarios / Zephyr | 4 080 ₽ |
|
| PP-14-00326-04 | Дегидратор, Xarios / Zephyr | 2 350 ₽ |
|
|
| 23 | 33-1015 | O-RING (3/8 id) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 55-6225 | CLAMP - filter | 1 | ||
| 24 | 61-2674 | TUBE - filter to indicator | 1 | |
| 25 | 61-4565 | INDICATOR - liquid | 1 | |
| 26 | 92-1502 | CLAMP - indicator | 1 | |
| 55-7367 | NUT - clamp (M5) | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 27 | 61-2695 | TUBE - indicator to fitting | 1 | |
| 28 | 61-2696 | TUBE - T-drill to injection valve | 1 | |
| 29 | 66-7636 | VALVE - solenoid (12 V) | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL - valve (12 V) | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 61-2520 | VALVE - solenoid (24 V) | 1 | ||
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 44-6158 | COIL - valve (24 V) | 1 | ||
| 55-1384 | SCREW - valve | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 30 | 61-2693 | TUBE - injection | 1 | |
| 31 | 61-415 | SHOULDER | 1 | |
| 32 | 55-9618 | NUT | 1 | |
| 61-2694 | FILTER - jet cool | 1 | ||
| 33 | 55-9825 | CLAMP - tube | 2 | |
| 34 | 92-3837 | SUPPORT - tubes | 1 | |
| 55-7340 | SCREW - clamp & support | 2 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7367 | NUT | 2 | ||
| 35 | 61-2686 | TUBE - assy, return oil | 1 | |
| 33-1461 | O-RING (5/16 id) | 1 | ||
| 36 | 61-2682 | TUBE - return oil | 1 | |
| 37 | 61-2683 | FITTING | 1 | |
| 51-808 | NUT | 1 | ||
| 38 | 61-2697 | TUBE - suction, with injection | 1 | |
| 39 | 61-2515 | ADAPTER - filter | 1 | |
| 40 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 41 | 61-2704 | TUBE - suction, tank to comp. | 1 | |
| 42 | 92-3835 | CLAMP - tube | 1 | |
| 55-7340 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 43 | 67-2012 | TANK - suction | 1 | |
| 55-5921 | CLAMP - tank | 1 | ||
| 44 | 61-3986 | TUBE - tank to tee | 1 | |
| 45 | 55-7065 | TEE (5/8 x 5/8 x 3/4) | 1 | |
| 46 | 61-4002 | TUBE - suction, check valve to tee | 1 | |
| 47 | 61-413 | VALVE - check | 1 | |
| 48 | 61-4003 | TUBE - suction, fitting to check valve | 1 | |
| 49 | 51-375 | CLAMP - tube | 3 | |
| 55-7340 | SCREW - clamp | 3 | ||
| 55-7089 | FLATWASHER | 6 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7367 | NUT | 3 | ||
| 50 | 61-3984 | FITTING | 2 | |
| 55-9929 | NUT | 2 | ||
| 51 | 61-4004 | TUBE - kvp to tee | 1 | |
| 52 | 41-2069 | REGULATOR - pressure, kvp | 1 | |
| 53 | 92-3841 | CLAMP - regulator | 1 | |
| 54 | 92-6295 | BRACKET - suction tubes | 1 | |
| 55-7340 | SCREW - bracket & clamp | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-9826 | WASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT | 2 | ||
| 55 | 61-3985 | TUBE - fitting to kvp | 1 |
