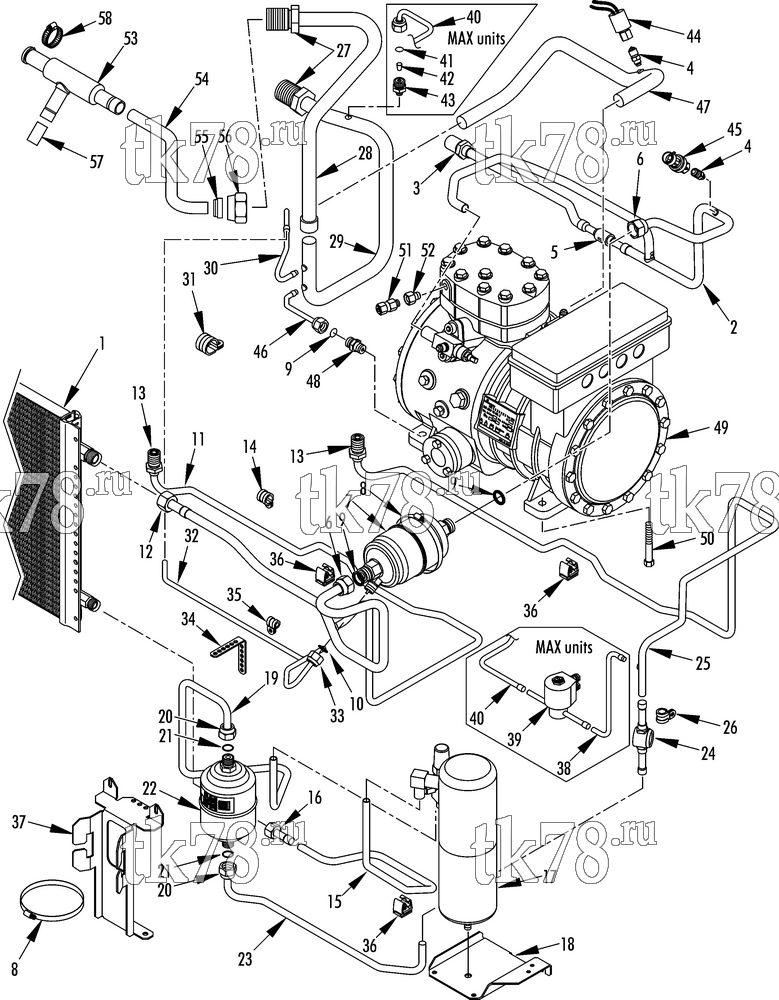

Установкa Thermo King V-500 Series DSR схема REFRIGERATION GROUP (V-400/500 20, 5/09 & after, microchannel coil) – 238D1
Обновление от: 5/30/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2429 | COIL - condenser (5/09 & after, microchannel) | 1 | |
| 51-1924 | RIVET - coil | 4 | ||
| 2 | 61-4249 | TUBE - discharge (inc items 3,4 & 5) | 1 | |
| 3 | 61-2726 | FITTING - discharge (#8) | 1 | |
| 55-9895 | NUT - fitting (#8) | 1 | ||
| 4 | 61-2504 | VALVE - service port | 2 | |
| 11-7777 | VALVE (Schrader) | 2 | ||
| 5 | 61-2748 | VALVE - check | 1 | |
| 6 | 61-469 | NUT (#8) | 1 | |
| 7 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 8 | 55-6225 | CLAMP - filter/separator | 2 | |
| 9 | 33-566 | O-RING (1/2 id, #8) | 2 | |
| 10 | 33-1461 | O-RING (5/16 id) | 1 | |
| 11 | 61-4889 | TUBE - separator to coil | 1 | |
| 12 | 61-4736 | FITTING - tube to condenser | 1 | |
| 13 | 61-2700 | FITTING - hot gas & liquid (#6) | 2 | |
| 55-9836 | NUT - fitting (#6) | 2 | ||
| 14 | 92-1501 | CLAMP - tube | 1 | |
| 51-2010 | SCREW - clamp | 1 | ||
| 51-2012 | NUT | 1 | ||
| 15 | 61-4728 | TUBE - coil to receiver tank | 1 | |
| 16 | 61-4729 | FITTING - condenser to tube | 1 | |
| 17 | 67-2010 | TANK - receiver | 1 | |
| 10-67-2010 | Бак фреона, V-400/500 | 16 670 ₽ |
|
|
| 55-7339 | NUT - tank | 1 | ||
| 55-9485 | WASHER | 1 | ||
| 18 | 92-3836 | SUPPORT - receiver tank | 1 | |
| 51-2010 | SCREW - support | 1 | ||
| 51-2012 | NUT - support | 3 | ||
| 19 | 61-4727 | TUBE - tank to filter | 1 | |
| 20 | 55-9009 | NUT - filter (#6) | 2 | |
| 55-9286 | SHOULDER (#6) | 2 | ||
| 21 | 33-1015 | O-RING (3/8 id) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 22 | 66-8718 | DEHYDRATOR | 1 | |
|
14-00326-04 OEM | Дегидратор, Xarios / Zephyr | 4 340 ₽ |
|
|
P-14-00326-04 | Дегидратор, Xarios / Zephyr | 4 080 ₽ |
|
| PP-14-00326-04 | Дегидратор, Xarios / Zephyr | 2 350 ₽ |
|
|
| 23 | 61-2674 | TUBE - filter to liquid indicator | 1 | |
| 24 | 61-4565 | INDICATOR - liquid | 1 | |
| 25 | 61-2675 | TUBE - indicator to fitting (liquid, non MAX units, R134a) | 1 | |
| 61-3662 | TUBE - indicator to fitting (liquid, MAX units, R404A) | 1 | ||
| 26 | 92-1502 | CLAMP - tube | 2 | |
| 51-2012 | NUT | 2 | ||
| 27 | 61-2683 | FITTING - suction (#12) | 2 | |
| 51-808 | NUT - fitting (#12) | 2 | ||
| 28 | 61-2708 | TUBE - suction (tee to adapter) | 1 | |
| 29 | 61-2706 | TUBE - suction (adapter to tee, non MAX units, R134a) | 1 | |
| 61-2709 | TUBE - suction (adapter to tee, MAX units, R404A) | 1 | ||
| 30 | 61-2682 | TUBE - oil return | 1 | |
| 31 | 92-3835 | CLAMP - tube | 1 | |
| 51-2010 | SCREW - clamp | 1 | ||
| 51-2012 | NUT | 1 | ||
| 32 | 61-2686 | TUBE - oil return | 1 | |
| 33 | 55-9618 | NUT (#4) | 1 | |
| 61-415 | SHOULDER (#4) | 1 | ||
| 34 | 92-3837 | BRACKET - tube | 1 | |
| 51-2010 | SCREW - bracket | 2 | ||
| 51-2012 | NUT | 2 | ||
| 35 | 55-9825 | CLAMP | 1 | |
| 36 | 92-1894 | CLAMP - tube | 3 | |
| 37 | 92-3838 | BRACKET - dehydrator | 1 | |
| 51-2010 | SCREW - bracket | 2 | ||
| 38 | 61-2696 | TUBE - injection valve | 1 | |
| 39 | 66-7636 | SOLENOID - liquid injection (12V) | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL (12V) | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 61-2520 | SOLENOID - liquid injection (24V) | 1 | ||
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 44-6158 | COIL (24V) | 1 | ||
| 40 | 61-2693 | TUBE - injection | 1 | |
| 61-415 | SHOULDER | 1 | ||
| 55-9618 | NUT - shoulder | 1 | ||
| 41 | 33-1461 | O-RING | 1 | |
| 42 | 61-2694 | FILTER - liquid injection | 1 | |
| 43 | 61-2515 | ADAPTER - liquid injection | 1 | |
| 44 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 45 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 46 | 61-2710 | TUBE - oil equalizer | 1 | |
| 47 | 61-2707 | TUBE - tee to compressor | 1 | |
| 61-415 | SHOULDER - o-ring seal (#4) | 1 | ||
| 55-9618 | NUT (#4) | 1 | ||
| 48 | 55-9617 | FITTING - oil tube | 1 | |
| 49 | 102-832 | COMPRESSOR (D 2 13 Y 3 ph 50 Hz) | 1 | |
| 102-882 | COMPRESSOR (D 2 11 Y 1 ph 50 Hz) | 1 | ||
| 61-1424 | VALVE - discharge | 1 | ||
| 61-2313 | VALVE - suction | 1 | ||
| 203-515 | OIL - compressor (solest 120) | A/R | ||
| 50 | 51-1119 | SCREW - compressor | 4 | |
| 51-903 | SPACER - compressor | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-9485 | LOCKWASHER | 4 | ||
| 55-7339 | NUT | 4 | ||
| 51 | 61-1193 | VALVE - relief | 1 | |
| 52 | 61-2060 | ADAPTER - valve | 1 | |
| 53 | 22-1073 | REGULATOR - suction pressure | 1 | |
| 54 | 61-2155 | TUBE - regulator to adapter | 1 | |
| 55 | 61-3857 | SHOULDER | 1 | |
| 56 | 61-2692 | NUT - adapter | 1 | |
| 57 | 61-3856 | TUBE - suction | 1 | |
| 58 | 55-5002 | CLAMP - regulator | 2 | |
| 92-6062 | BRACKET - regulator | 2 | ||
| 51-2010 | SCREW - clamp | 2 |
