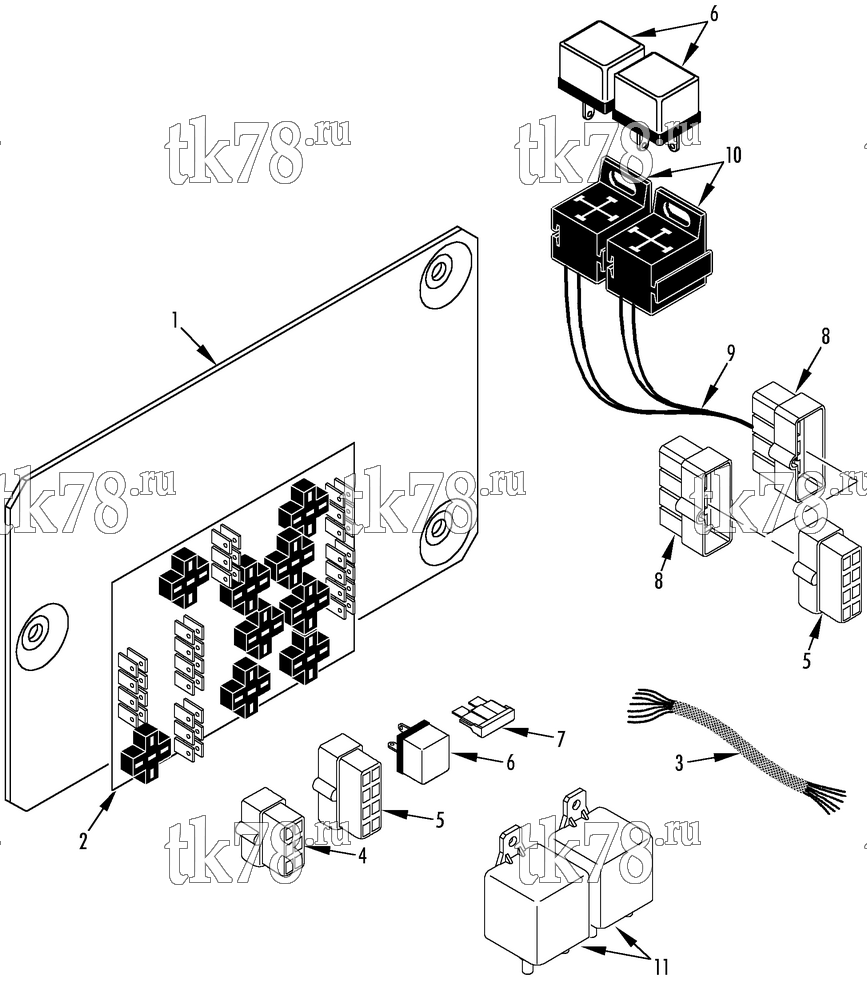

Установкa Thermo King V-500 MAX TC 10, 20, 30, 50 схема CONTROL BOX (V-500 TC 10 & 30) – 178B4
Обновление от: 12/7/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-1899 | BRACKET - control box | 1 | |
| 55-9826 | FLATWASHER | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7367 | NUT | 3 | ||
| 2 | 41-4372 | BOARD - printed circuit (N20.1, 12/24V) | 1 | |
| 55-9620 | SCREW - board | 6 | ||
| 3 | 41-4937 | HARNESS - condenser | 1 | |
| 4 | 41-876 | CONNECTOR (6-pin) | 4 | |
| 5 | 41-946 | CONNECTOR (8-pin) | 4 | |
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | A/R | ||
| 44-7245 | TERMINAL - pin (red, 16-22 gauge, #10) | A/R | ||
| 6 | 41-895 | RELAY (12V) | 11 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY (24V) | 11 | ||
| 7 | 44-9758 | FUSE (10 amp, 24V unit) | 7 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp, 12V unit) | 7 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 44-9524 | FUSE (3 amp) | 1 | ||
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 8 | 41-4519 | CONNECTOR - bridge | 1 | |
| 41-877 | TERMINAL | 2 | ||
| 9 | 41-4938 | HARNESS - heat option | 1 | |
| 10 | 44-5537 | SOCKET - relay | 2 | |
| 11 | 41-4667 | RELAY - battery & standby power (12V) | 2 | |
| 41-4668 | RELAY - battery & standby power (24V) | 2 |
