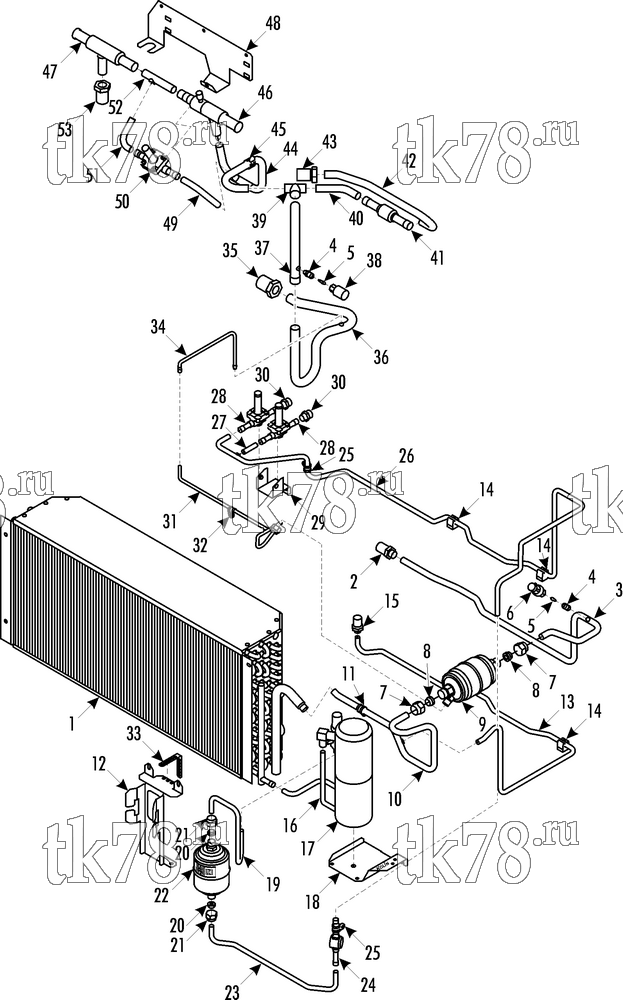

Установкa Thermo King V-500 AC 10, 20 DSR схема REFRIGERATION GROUP (V-500 AC 10) – 219F9
Обновление от: 4/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2009 | COIL - condenser | 1 | |
| 55-8375 | NUT - captive (M5) | 9 | ||
| 91-9989 | TAPE - sealant | A/R | ||
| 55-7340 | SCREW - coil | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-9826 | FLATWASHER | 4 | ||
| 2 | 61-2726 | FITTING | 1 | |
| 55-9895 | NUT - fitting | 1 | ||
| 3 | 61-2679 | TUBE - fitting to oil separator | 1 | |
| 4 | 61-2504 | PORT - valve | 2 | |
| 5 | 11-7777 | VALVE (Schrader) | 2 | |
| 6 | 41-5781 | TRANSDUCER | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 7 | 61-469 | NUT | 2 | |
| 8 | 61-470 | SHOULDER | 2 | |
| 33-566 | O-RING (1/2 id) | 2 | ||
| 9 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 55-6225 | CLAMP - oil separator | 1 | ||
| 10 | 61-4000 | TUBE - oil separator to coil condenser | 1 | |
| 11 | 92-1501 | CLAMP - tube | 1 | |
| 55-7340 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-9826 | WASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 12 | 92-3838 | SUPPORT - filter | 1 | |
| 55-7340 | SCREW - support | 2 | ||
| 55-9826 | WASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 13 | 61-2678 | TUBE - liquid evap | 1 | |
| 14 | 92-1894 | SADDLES - tube | 5 | |
| 55-9898 | RIVET - saddles | 5 | ||
| 15 | 61-2700 | FITTING | 1 | |
| 55-9836 | NUT - fitting | 1 | ||
| 16 | 61-2684 | TUBE - coil to tank receiver | 1 | |
| 17 | 67-2010 | TANK - receiver | 1 | |
| 10-67-2010 | Бак фреона, V-400/500 | 16 670 ₽ |
|
|
| 55-7339 | NUT - tank | 1 | ||
| 55-9485 | WASHER | 1 | ||
| 18 | 92-3836 | SUPPORT - tank receiver | 1 | |
| 55-7340 | SCREW - support | 1 | ||
| 55-7367 | NUT | 3 | ||
| 55-9826 | WASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 19 | 61-2685 | TUBE - tank receiver to filter | 1 | |
| 20 | 55-9286 | SHOULDER | 2 | |
| 21 | 55-9009 | NUT | 2 | |
| 33-1015 | O-RING (3/8 id) | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 22 | 66-8718 | FILTER | 1 | |
|
14-00326-04 OEM | Дегидратор, Xarios / Zephyr | 4 340 ₽ |
|
|
P-14-00326-04 | Дегидратор, Xarios / Zephyr | 4 080 ₽ |
|
| PP-14-00326-04 | Дегидратор, Xarios / Zephyr | 2 350 ₽ |
|
|
| 55-6225 | CLAMP - filter | 1 | ||
| 23 | 61-2674 | TUBE - filter to indicator | 1 | |
| 24 | 61-4565 | INDICATOR - liquid | 1 | |
| 25 | 92-1502 | CLAMP - indicator & tube | 2 | |
| 55-7340 | SCREW - clamp | 1 | ||
| 55-7367 | NUT - clamp | 2 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 26 | 61-4015 | TUBE - indicator to fitting | 1 | |
| 27 | 61-4016 | TUBE | 1 | |
| 28 | 66-7878 | VALVE - solenoid | 2 | |
| 55-7036 | SCREW - valve | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 29 | 92-6308 | SUPPORT - solenoids | 1 | |
| 55-7340 | SCREW - support | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7367 | NUT | 2 | ||
| 30 | 55-9922 | ADAPTER | 2 | |
| 31 | 61-2686 | TUBE - assy, return oil | 1 | |
| 33-1461 | O-RING (5/16 id) | 1 | ||
| 32 | 55-9825 | CLAMP - tube | 1 | |
| 33 | 92-3837 | SUPPORT - tubes | 1 | |
| 55-7340 | SCREW - support | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7367 | NUT | 2 | ||
| 34 | 61-4017 | TUBE - return oil | 1 | |
| 35 | 61-2683 | FITTING | 1 | |
| 51-808 | NUT - fitting | 1 | ||
| 36 | 61-4018 | TUBE - suction, to compressor | 1 | |
| 37 | 61-4019 | TUBE - suction, tee to compressor | 1 | |
| 38 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 39 | 55-7065 | TEE (5/8 x 5/8 x 3/4) | 1 | |
| 40 | 61-4002 | TUBE - suction, check valve to tee | 1 | |
| 41 | 61-413 | VALVE - check | 1 | |
| 42 | 61-4003 | TUBE - suction, fitting to check valve | 1 | |
| 43 | 61-3984 | FITTING | 1 | |
| 55-9929 | NUT - fitting | 1 | ||
| 44 | 61-4020 | TUBE - kvp to tee | 1 | |
| 45 | 51-375 | CLAMP - tube | 1 | |
| 55-7340 | SCREW - clamp | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 46 | 41-2069 | REGULATOR - pressure, kvp | 1 | |
| 47 | 22-1073 | REGULATOR - pressure, kvl | 1 | |
| 55-5921 | CLAMP - regulator | 2 | ||
| 48 | 92-6309 | BRACKET - suction | 1 | |
| 55-7340 | SCREW - bracket | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 49 | 61-4021 | TUBE - elbow | 1 | |
| 50 | 66-9032 | VALVE - solenoid (see 193A5) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 55-7340 | SCREW - valve | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7367 | NUT | 1 | ||
| 51 | 61-4022 | TUBE - elbow | 1 | |
| 52 | 61-4023 | TUBE - kvl to kvp | 1 | |
| 53 | 61-4024 | FITTING | 1 | |
| 55-9929 | NUT - fitting | 1 |
