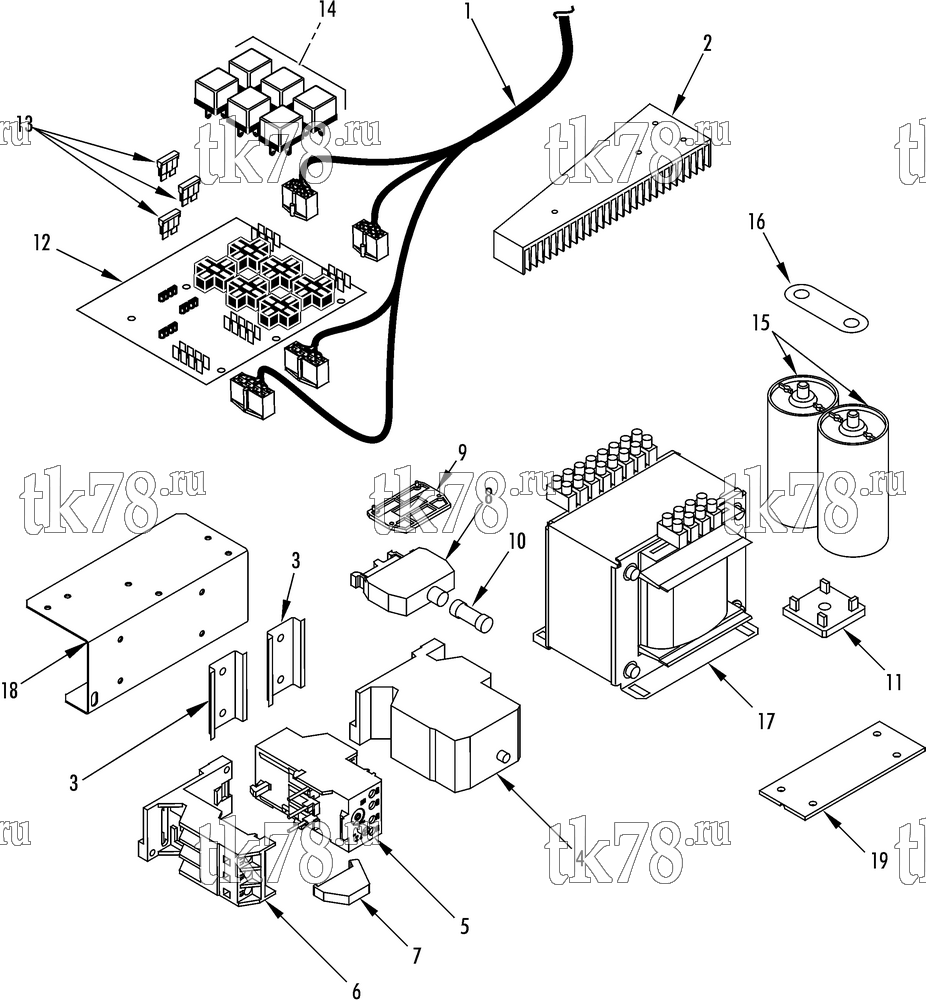

Установкa Thermo King V-300 MAX TC & TCI схема ELECTRONIC CONTROLS (V-300 TC-20) – 171A5
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4490 | HARNESS - condenser (380/3/50, 230/3/60) | 1 | |
| 41-4492 | HARNESS - condenser (220/1/50, 230/1/60) | 1 | ||
| 41-946 | CONNECTOR (8-pin) | 5 | ||
| 2 | 92-597 | HEATSINK - radiator | 1 | |
| 55-9348 | SCREW - heatsink | 3 | ||
| 55-7861 | LOCKWASHER | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 3 | 92-584 | CHANNEL - contactor | 2 | |
| 55-9915 | RIVET - channel | 4 | ||
| 4 | 42-271 | CONTACTOR (12V) | 1 | |
| 41-1005 | CONTACTOR (24V) | 1 | ||
| 5 | 41-3097 | RELAY - overload (3 amp, 380/3/50, 230/3/60) | 1 | |
| 41-3135 | RELAY - overload (5.5 amp, 230/3/60) | 1 | ||
| 41-3422 | BREAKER - circuit (8 amp, 220/1/50, 230/1/60) | 1 | ||
| 6 | 41-3099 | SOCKET - circuit breaker | 1 | |
| 7 | 41-898 | CONNECTOR - end | 2 | |
| 8 | 41-942 | CONNECTOR - fuse | 1 | |
| 9 | 41-944 | COVER - connector | 1 | |
| 10 | 41-3661 | FUSE (4 amp) | 1 | |
| 11 | 41-4495 | HARNESS - rectifier | 1 | |
| 12 | 41-4262 | BOARD - pc (N11.1, 3 phase) | 1 | |
| 41-4263 | BOARD - pc (N11.1, 1 phase) | 1 | ||
| 55-8527 | SCREW - pc board | 6 | ||
| 13 | 44-9524 | FUSE (3A) | 1 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 44-9758 | FUSE (10 amp) | 2 | ||
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp) | 2 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 41-1259 | FUSE (25 amp) | 1 | ||
|
10-41-1259 | Предохранитель 25 ампер 10 шт | 1 860 ₽ |
|
| 41-1771 | FUSE (30 amp) | 1 | ||
| 30-41-1771 | Предохранитель 32V 30А | 460 ₽ |
|
|
| 14 | 41-895 | RELAY (12V) | 6 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY (24V) | 6 | ||
| 15 | 41-3787 | CAPACITOR (12V units) | 2 | |
| 41-2992 | CAPACITOR (24V units) | 2 | ||
| 44-9925 | RESISTOR (220 ohm) | 1 | ||
| 16 | 41-3134 | JUMPER - capacitor | 2 | |
| 17 | 41-3673 | TRANSFORMER (500VA, 50 hz) | 1 | |
| 41-3773 | TRANSFORMER (230/1/60, 230/3/60) | 1 | ||
| 55-7011 | NUT | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 18 | 92-593 | BRACKET - contactor | 1 | |
| 19 | 92-594 | HINGE (plastic) | 1 | |
| 55-9495 | RIVET - hinge | 4 |
