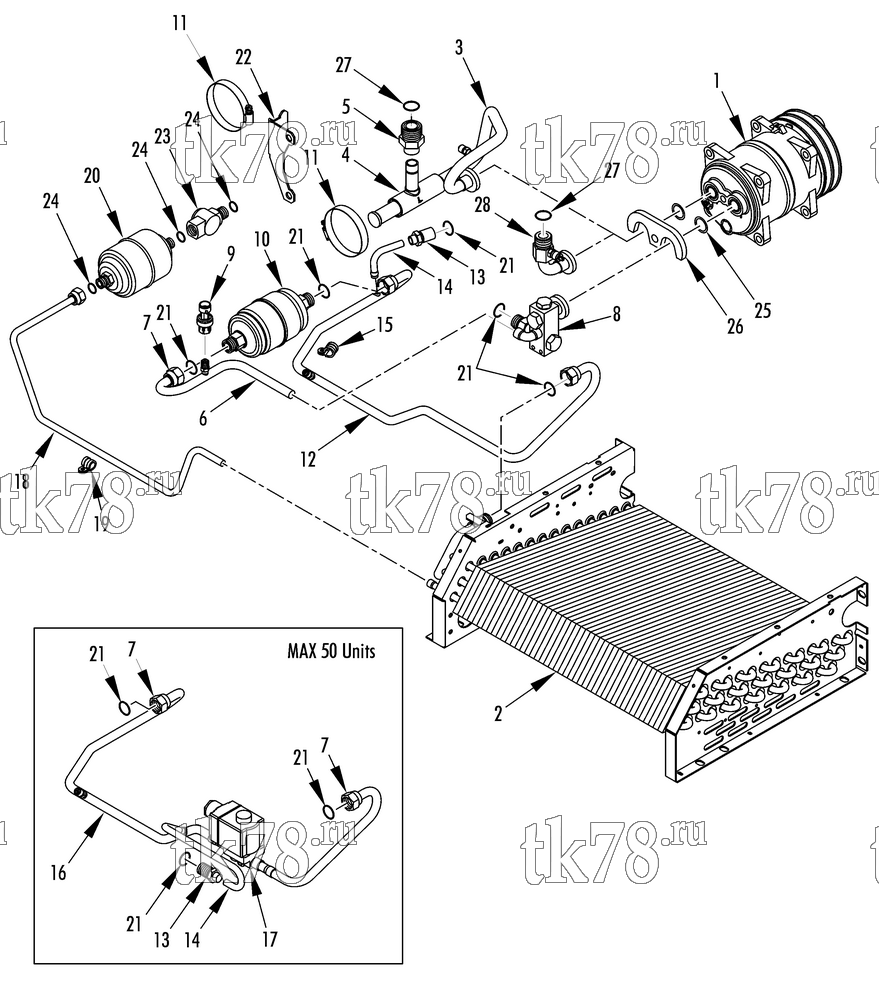

Установкa Thermo King V-200 TC & TCI DSR схема CONDENSER REFRIGERATION (V-200/300 20/50, before Jan 12) – 191C4
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - TM13-XD (see 189C3) | 1 | |
| 107-354 | CLUTCH - SD (see 191C2) | 1 | ||
| 2 | 67-1982 | COIL - condenser (V-200) | 1 | |
| 67-1763 | COIL - condenser (V-300) | 1 | ||
| 55-9915 | RIVET - coil | 10 | ||
| 3 | 61-2517 | TUBE - suction | 1 | |
| 61-399 | FITTING - compressor to tube | 1 | ||
| 11-7777 | VALVE (Schrader) | 1 | ||
| 61-468 | CAP - valve | 1 | ||
| 4 | 22-1073 | REGULATOR - suction pressure (condenser) | 1 | |
| 5 | 61-2565 | ADAPTER - suction (#10) | 1 | |
| 6 | 61-2522 | TUBE - valve to oil separator | 1 | |
| 61-2510 | TUBE - valve to separator | 1 | ||
| 7 | 61-470 | SHOULDER | 1 | |
| 61-469 | NUT - shoulder | 1 | ||
| 8 | 61-6336 | VALVE - double check | 1 | |
| 9 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 10 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 11 | 55-6225 | CLAMP - separator & dehydrator (before Mar 09) | 2 | |
| 55-3991 | CLAMP - separator & dehydrator (Mar 09 & after) | 1 | ||
| 12 | 61-2516 | TUBE - discharge (V-200 20, before Jul 03) | 1 | |
| 98-8399 | TUBE - discharge (V-200 20, Jul 03 & after) | 1 | ||
| 13 | 61-434 | FITTING - hot gas | 1 | |
| 14 | 61-2540 | TUBE - tee to adapter | 1 | |
| 15 | 92-1501 | CLAMP - tube | 2 | |
| 55-7340 | SCREW - clamp | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT | 2 | ||
| 16 | 61-2519 | TUBE - discharge (V-200/300) | 1 | |
| 17 | 66-9032 | VALVE - solenoid (MAX only, see 193A5) | 1 | |
| 18 | 41-5795 | TUBE - liquid (before Mar 09) | 1 | |
| 61-4896 | TUBE - liquid (Mar/09 & after) | 1 | ||
| 19 | 92-1502 | CLAMP - tube | 1 | |
| 55-7089 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 20 | 66-8718 | DEHYDRATOR (before Mar 09, 148 mm lg) | 1 | |
|
14-00326-04 OEM | Дегидратор, Xarios / Zephyr | 4 340 ₽ |
|
|
P-14-00326-04 | Дегидратор, Xarios / Zephyr | 4 080 ₽ |
|
| PP-14-00326-04 | Дегидратор, Xarios / Zephyr | 2 350 ₽ |
|
|
| 61-3852 | DEHYDRATOR (Mar 09 & after, 113 mm lg) | 1 | ||
|
10-61-3852 | Дегидратор, V-Series/C-Series | 1 690 ₽ |
|
| 21 | 33-566 | O-RING (#8) | 5 | |
| 22 | 92-3475 | SUPPORT - dehydrator (before Mar 09) | 1 | |
| 55-6987 | SCREW - support | 2 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 23 | 61-5144 | SIGHT GLASS | 1 | |
| 24 | 33-1015 | O-RING (#6) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 25 | 33-2882 | O-RING - manifold | 2 | |
| 26 | 22-1120 | BRACKET - manifold holddown | 1 | |
| 55-9484 | SCREW - bracket | 1 | ||
| 27 | 33-2115 | O-RING - suction (#10) | 1 | |
| 28 | 61-417 | FITTING - suction (non-MAX units) | 1 | |
| 11-7777 | VALVE (Schrader) | 1 | ||
| 61-468 | CAP - valve | 1 |
