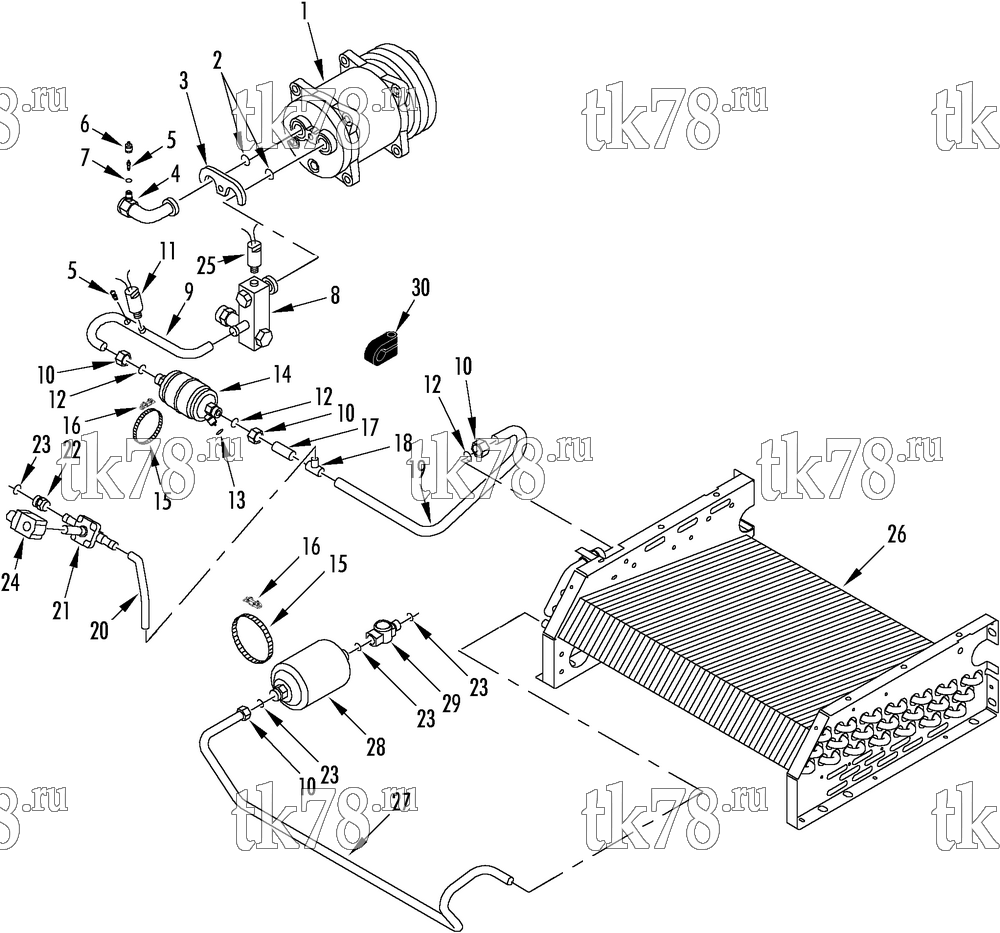

Установкa Thermo King V-200 Series схема REFRIGERATION COMPONENTS (V-200 20, w/ double check valve) – 162C2
Обновление от: 2/16/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - TM13-XD (see 189C3) | 1 | |
| 2 | 33-2882 | O-RING - manifold | 2 | |
| 3 | 22-1120 | BRACKET - manifold holddown | 1 | |
| 55-9484 | SCREW - bracket | 1 | ||
| 4 | 61-417 | FITTING - suction | 1 | |
| 5 | 11-7777 | VALVE (Schrader) | 1 | |
| 6 | 61-468 | CAP - service port | 1 | |
| 7 | 33-2115 | O-RING (#10, suction) | 1 | |
| 8 | 61-375 | VALVE - double check (see 162B3) | 1 | |
| 9 | 61-467 | TUBE - valve to separator | 1 | |
| 55-7088 | SCREW - check valve | 2 | ||
| 10 | 61-469 | NUT - adapter (#8) | 4 | |
| 61-470 | SHOULDER - o-ring seal (#8) | 4 | ||
| 11 | 44-7991 | SWITCH - hpco | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 12 | 33-566 | O-RING (#8) | 3 | |
| 13 | 33-1461 | O-RING - oil return (#4) | 1 | |
| 14 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 370 ₽ |
|
| 15 | 55-9486 | BAND - separator | 2 | |
| 16 | 91-9987 | FIXATION - band | 2 | |
| 17 | 61-406 | TUBE - straight | 1 | |
| 18 | 55-2181 | TEE (1/2 x 1/2 x 3/8) | 1 | |
| 19 | 61-407 | TUBE - separator to condenser | 1 | |
| 20 | 61-408 | TUBE - tee to valve | 1 | |
| 21 | 66-7878 | BASE - solenoid valve | 1 | |
| 55-8720 | SCREW - base | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 22 | 55-9922 | ADAPTER - defrost (#6) | 1 | |
| 23 | 33-1015 | O-RING (#6) | 4 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 24 | 41-5047 | COIL - solenoid valve (12V) | 1 | |
| 41-5051 | COIL - solenoid valve (24V) | 1 | ||
| 25 | 44-6225 | SWITCH - hpco | 1 | |
| 26 | 67-1690 | COIL - condenser | 1 | |
| 55-9495 | RIVET - coil | 10 | ||
| 27 | 61-509 | TUBE - condenser to filter | 1 | |
| 28 | 66-8718 | DEHYDRATOR - o-ring seal (#6) | 1 | |
|
14-00326-04 OEM | Дегидратор, Xarios / Zephyr | 4 340 ₽ |
|
|
P-14-00326-04 | Дегидратор, Xarios / Zephyr | 4 080 ₽ |
|
| PP-14-00326-04 | Дегидратор, Xarios / Zephyr | 2 350 ₽ |
|
|
| 29 | 61-5144 | SIGHT GLASS (#6) | 1 | |
| 30 | 92-1501 | CLAMP - tube (12 mm) | 2 | |
| 92-1502 | CLAMP - tube (10 mm) | 1 | ||
| 55-7340 | SCREW - clamp | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 55-7340 | NUT | 3 |
