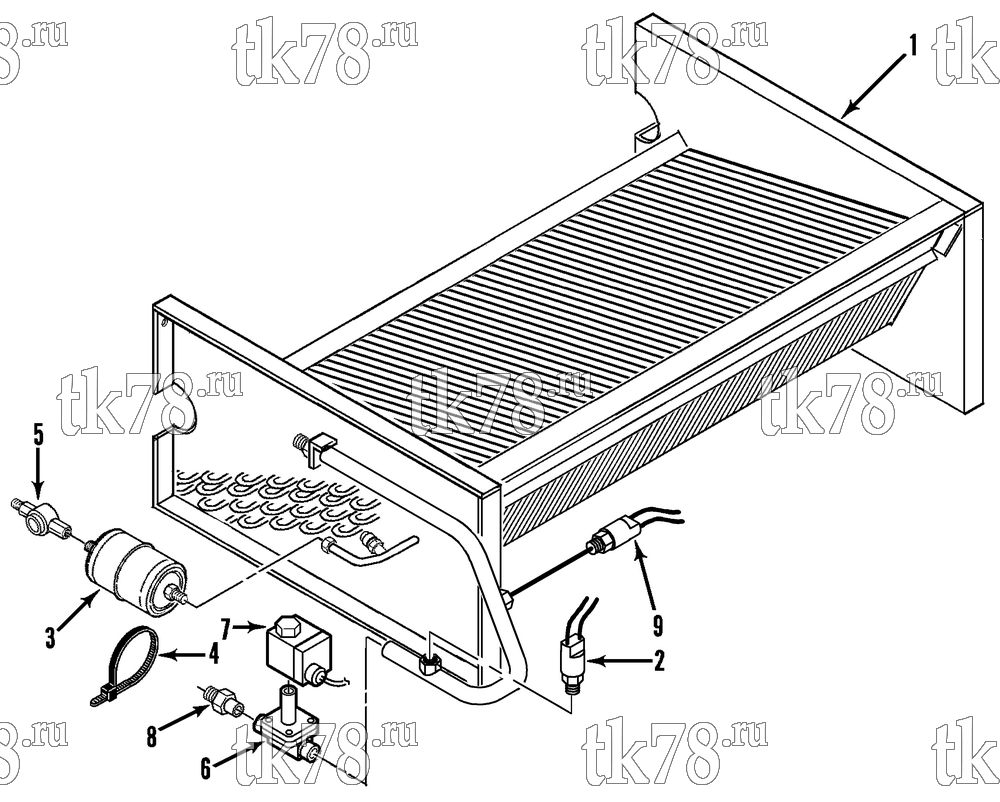

Установкa Thermo King V-090, 90E, 90H, 90 MAX, 90T & 95 схема REFRIGERATION - CONDENSER (V-090 MAX) – 140A2
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1431 | COIL - condenser | 1 | |
| 55-8290 | RIVET - coil | 10 | ||
| 2 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 3 | 66-8718 | DEHYDRATOR | 1 | |
|
14-00326-04 OEM | Дегидратор, Xarios / Zephyr | 4 340 ₽ |
|
|
P-14-00326-04 | Дегидратор, Xarios / Zephyr | 4 080 ₽ |
|
| PP-14-00326-04 | Дегидратор, Xarios / Zephyr | 2 350 ₽ |
|
|
| 4 | 91-7007 | CLAMP - dehydrator | 1 | |
| 5 | 61-5144 | SIGHT GLASS | 1 | |
| 6 | 66-7878 | BODY - solenoid | 1 | |
| 55-7036 | NUT - solenoid | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 7 | 41-5047 | COIL | 1 | |
| 8 | 66-7710 | FITTING - defrost | 1 | |
| 9 | 41-886 | SWITCH - condenser fan pressure | 1 |
