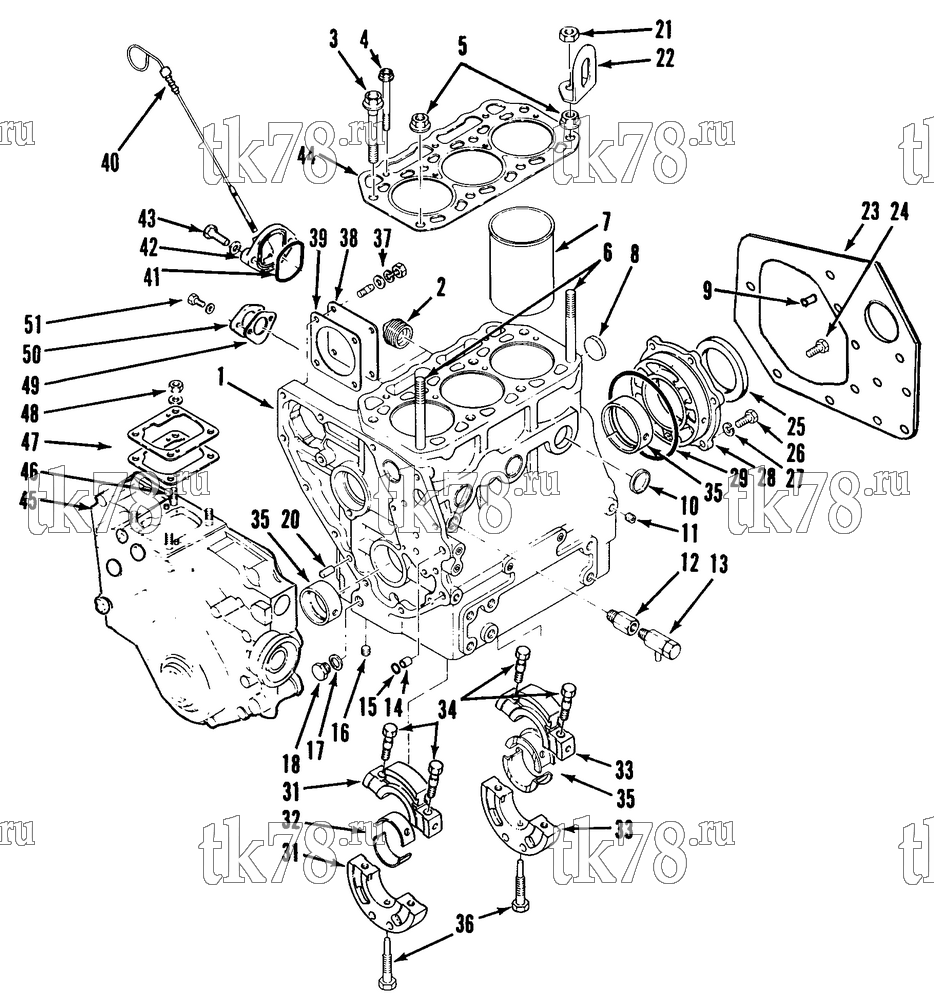

Установкa Thermo King URD 25DG схема CYLINDER BLOCK GROUP – 60F3
Обновление от: 11/12/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 101-267 | SHORT BLOCK - assembly (3.53 engine) | 1 | ||
| 1 | 101-252 | BLOCK - cylinder (incl 2 thru 20) | 1 | |
| 2 | 55-4601 | PLUG | 2 | |
| 3 | 55-4594 | BOLT - cylinder head | 6 | |
| 4 | 55-4596 | BOLT - cylinder head (77 mm lg, engines before S/N K00799) | 3 | |
| 55-5139 | BOLT - cylinder head (85 mm lg, engines after S/N K00799) | 3 | ||
| 5 | 55-4597 | NUT - cylinder head | 2 | |
| 6 | 55-4595 | STUD - cylinder head | 2 | |
| 7 | 11-5002 | LINER - cylinder | 3 | |
|
10-11-5002 | Гильза, Yanmar 235, 353 | 9 320 ₽ |
|
| 8 | 11-5004 | PLUG (30 mm) | 1 | |
| 9 | 55-4599 | PIN - dowel | 2 | |
| 10 | 55-5499 | PLUG (30 mm) | 5 | |
| 11 | 55-4593 | PLUG | 5 | |
| 12 | 55-4748 | CONNECTOR - drain cock (1/8 pt, engines before S/N K00180) | 1 | |
| 11-5080 | CONNECTOR - drain cock (1/4 pt, engines after S/N K00180) | 1 | ||
| 13 | 11-5081 | DRAIN COCK | 1 | |
| 14 | 11-5079 | GUIDE - o-ring | 2 | |
| 15 | 33-1382 | O-RING | 2 | |
| 16 | 55-6176 | PLUG | 1 | |
| 17 | 33-1383 | GASKET | 1 | |
| 18 | 55-4602 | PLUG | 1 | |
| 19 | Not Used | |||
| 20 | 55-4599 | PIN - dowel | 1 | |
| 21 | 55-4615 | LOCKNUT | 1 | |
| 22 | 11-5088 | BRACKET - engine | 1 | |
| 23 | 11-5597 | FLANGE | 1 | |
| 24 | 55-4604 | BOLT - housing | 10 | |
| 25 | 33-1506 | SEAL - oil | 1 | |
|
10-33-1506 | Сальник коленвала задний, Yanmar, кроме 4XX / 370 / 376 | 4 830 ₽ |
|
|
PP-33-1506 | Сальник коленвала задний, Yanmar, кроме 4XX / 370 / 376 | 3 690 ₽ |
|
| 26 | 55-1140 | SCREW - housing | 6 | |
| 27 | 55-790 | LOCKWASHER | 6 | |
| 28 | 11-5089 | HOUSING - main bearing (incl 25 & 30) | 1 | |
| 29 | 33-1507 | O-RING - housing | 1 | |
| 30 | Not Used | |||
| 31 | 11-5181 | HOUSING - main bearing (incl 32 & 35) | 1 | |
| 32 | 11-5182 | BEARING - main | 1 | |
|
10-11-5182 | Вкладыш коренной, Std., Yanmar 353 | 5 400 ₽ |
|
| 11-5367 | BEARING - main (0.25 mm us) | 1 | ||
|
10-11-5367 | Вкладыш коренной, 0.25, Yanmar 353 | 4 800 ₽ |
|
| 33 | 11-5090 | HOUSING - main bearing (incl 34 & 35) | 1 | |
| 34 | 55-4617 | BOLT - housing | 4 | |
| 35 | 11-5245 | BEARING SET - main | 1 | |
|
10-11-5245 | Вкладыши коренные к-т, Std. (на 1 двигатель), Yanmar 235, 353 | 10 370 ₽ |
|
| 11-5246 | BEARING SET - main (10.25 mm us) | 1 | ||
|
10-11-5246 | Вкладыши коренные к-т, 0.25 (на 1 двигатель), Yanmar 235, 353 | 10 360 ₽ |
|
| 36 | 55-4618 | BOLT - housing | 2 | |
| 37 | 55-4620 | STUD - injection pump | 4 | |
| 55-4613 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-4621 | NUT | 4 | ||
| 38 | 11-5082 | COVER - blind | 1 | |
| 39 | 33-1500 | GASKET - cover | 1 | |
| 40 | 11-5176 | DIPSTICK | 1 | |
| 41 | 33-1534 | O-RING | 1 | |
| 42 | 11-5177 | BRACKET - dipstick | 1 | |
| 43 | 55-4749 | SCREW - bracket | 2 | |
| 55-4613 | WASHER | 2 | ||
| 44 | 33-1544 | GASKET - cylinder head | 1 | |
|
10-33-1544 | Прокладка ГБЦ, Yanmar 353 | 6 500 ₽ |
|
| 45 | 11-5500 | HOUSING - gear | 1 | |
| 46 | 55-4620 | STUD - injection pump | 4 | |
| 47 | 11-5180 | SHIM SET - injection pump | 1 | |
| 48 | 55-790 | LOCKWASHER | 4 | |
| 55-4621 | NUT - injection pump | 4 | ||
| 49 | 33-1542 | GASKET - oil fill | 1 | |
| 50 | 11-5048 | COVER | 1 | |
| 51 | 55-4652 | BOLT - cover | 2 | |
| 55-4607 | WASHER | 2 | ||
| 30-276 | GASKET SET - overhaul | 1 | ||
| 10-30-276 | Набор прокладок, Yanmar 353 | 20 420 ₽ |
|
