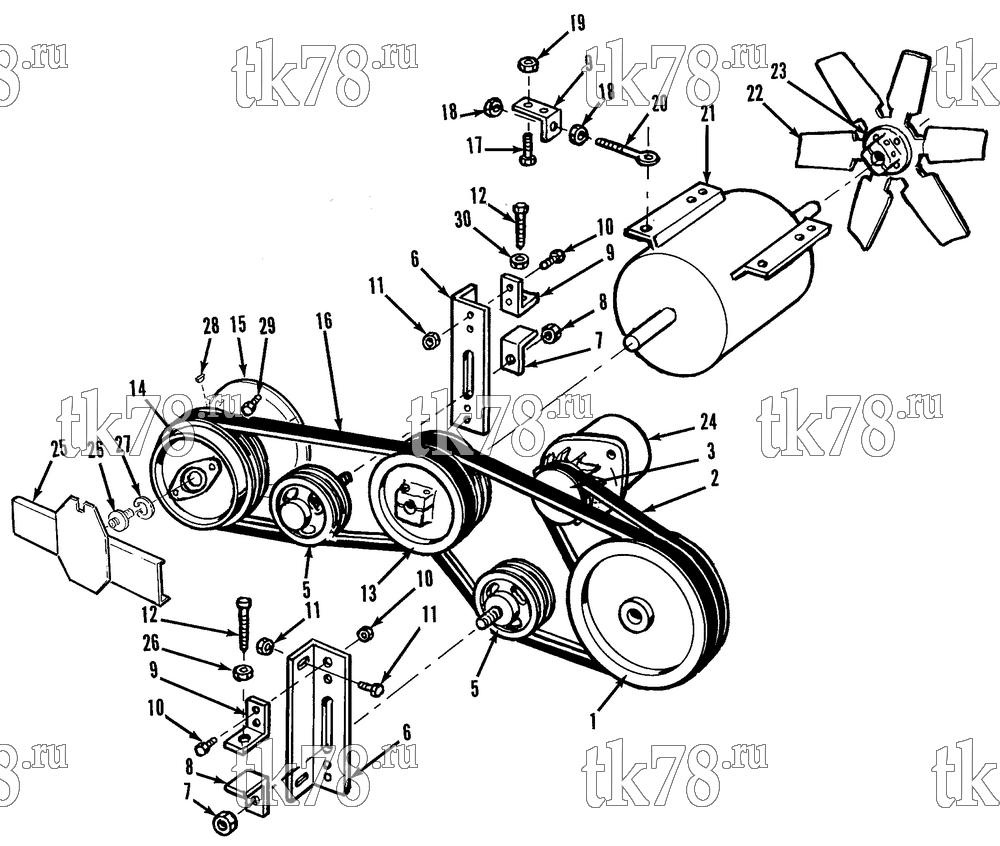

Установкa Thermo King URD 25DG схема BELTS, PULLEYS & FAN GROUP – 60F10
Обновление от: 2/23/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-569 | PULLEY - compressor | 1 | |
| 55-9024 | KEY - pulley | 1 | ||
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 55-4316 | SCREW - pulley | 1 | ||
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 77-2498 | SPACER | 1 | ||
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 55-2363 | LOCKWASHER | 1 | ||
| 2 | 78-268 | BELT - alternator | 1 | |
| 10-78-503 | Ремень водяной помпы, MD/KD/RD-I | 4 460 ₽ |
|
|
| 3 | 77-1482 | PULLEY - alternator | 1 | |
| 4 | 78-570 | BELT - compressor | 1 | |
| 10-78-570 | Ремень электромотор - компрессор, URD/URD-III | 6 480 ₽ |
|
|
| 5 | 77-1475 | PULLEY - idler (see 60F11) | 2 | |
| 6 | 99-7392 | BRACKET - idler pulley | 2 | |
| 99-4753 | SPACER - idler bracket | 10 | ||
| 7 | 99-7394 | BRACKET - tension | 2 | |
| 8 | 55-314 | NUT - idler | 2 | |
| 55-365 | LOCKWASHER | 2 | ||
| 55-1052 | WASHER - special | 2 | ||
| 9 | 99-7397 | BRACKET - tension | 2 | |
| 10 | 55-141 | SCREW - bracket | 4 | |
| 11 | 55-312 | NUT | 8 | |
| 55-790 | LOCKWASHER | 4 | ||
| 12 | 99-7395 | SCREW - tension adjustment | 2 | |
| 55-5255 | WASHER - special | 4 | ||
| 13 | 78-568 | PULLEY - motor | 1 | |
| 55-2962 | SCREW - pulley | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 14 | 107-180 | CLUTCH (see 69C3) | 1 | |
| 15 | 77-1412 | HUB - drive | 1 | |
| 16 | 78-342 | BELT - engine | 1 | |
| 10-78-342 | Ремень двигатель - электромотор, URD/URD-III | 16 820 ₽ |
|
|
| 17 | 55-141 | SCREW - bracket | 2 | |
| 18 | 55-2999 | NUT - eyebolt | 1 | |
| 19 | 55-4967 | NUT | 2 | |
| 20 | 99-541 | BOLT - eye | 1 | |
| 21 | 104-492 | MOTOR (380/460V) | 1 | |
| 22 | 78-567 | FAN - condenser | 1 | |
| 55-141 | SCREW - fan to hub | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 23 | 77-1474 | HUB - fan | 1 | |
| 55-2962 | SCREW - hub to shaft | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 24 | 44-6257 | ALTERNATOR (51 amp, see 68G3) | 1 | |
| 44-6981 | ALTERNATOR (72 amp, see 74A12) | 1 | ||
| 25 | 99-9129 | GUARD - clutch | 1 | |
| 55-1587 | SCREW - guard | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-4118 | NUT | 4 | ||
| 26 | 55-4589 | STUD - clutch | 1 | |
| 27 | 77-290 | RING - retaining (internal) | 1 | |
| 28 | 55-513 | KEY - hub to clutch | 1 | |
| 29 | 55-1140 | SCREW - hub | 6 | |
| 30 | 55-3227 | NUT - tension screw | 2 |
