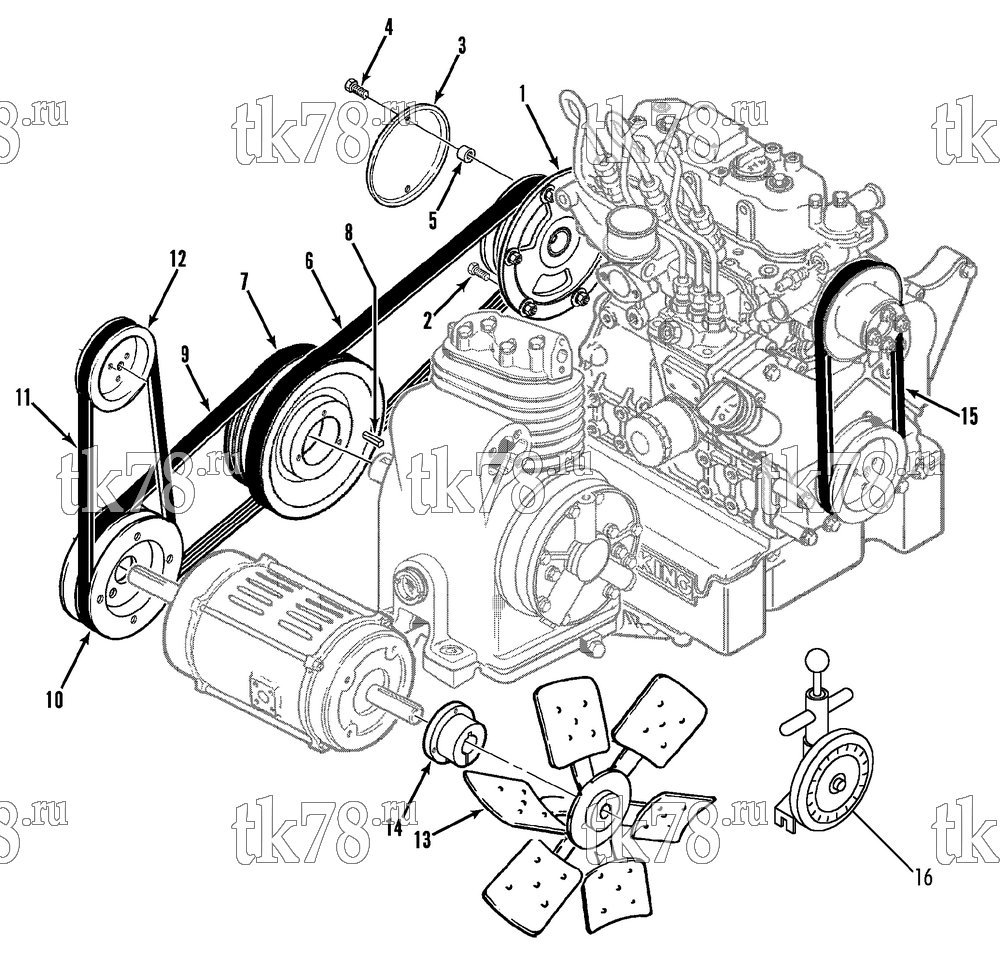

Установкa Thermo King UMD-II MAX, SUMD-II MAX w/TK 3.74 Engine схема BELTS, PULLEYS, CLUTCH & FAN GROUP – 136E2
Обновление от: 1/22/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 107-273 | CLUTCH (see 145F4) | 1 | |
| 2 | 55-5022 | SCREW - clutch | 6 | |
| 3 | 91-7423 | COVER - clutch | 1 | |
| 4 | 55-1587 | SCREW - cover | 3 | |
| 55-2086 | FLATWASHER | 3 | ||
| 5 | 91-4299 | SPACER - cover | 3 | |
| 6 | 78-485 | BELT - engine to compressor | 1 | |
| 7 | 77-2485 | PULLEY - compressor (5-3V) | 1 | |
| 55-139 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 8 | 55-455 | KEY - pulley | 1 | |
|
10-55-455 | Шпонка коленвала, D214/X214 | 290 ₽ |
|
| 9 | 78-914 | BELT - motor to compressor (3-3V) | 1 | |
| 10 | 77-2254 | PULLEY & BUSHING (4-3V ) | 1 | |
| 11 | 78-526 | BELT - alternator | 1 | |
| 90-78-526 | Ремень | 1 530 ₽ |
|
|
| 12 | 77-1449 | PULLEY - alternator | 1 | |
| 77-2129 | PULLEY - alternator | 1 | ||
| 13 | 78-892 | FAN & HUB - assembly | 1 | |
| 14 | 77-2140 | HUB | 1 | |
| 55-141 | SCREW - fan to hub | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-3565 | SCREW - fan | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 15 | 78-1012 | BELT - water pump | 1 | |
| 10-78-1012 | Ремень водяной помпы, MD/KD-II / TS-200/300 | 3 720 ₽ |
|
|
|
PP-78-1012 | Ремень водяной помпы, MD/KD-II / TS-200/300 | 1 320 ₽ |
|
| 16 | 204-427 | GAUGE - belt tension | 1 |
