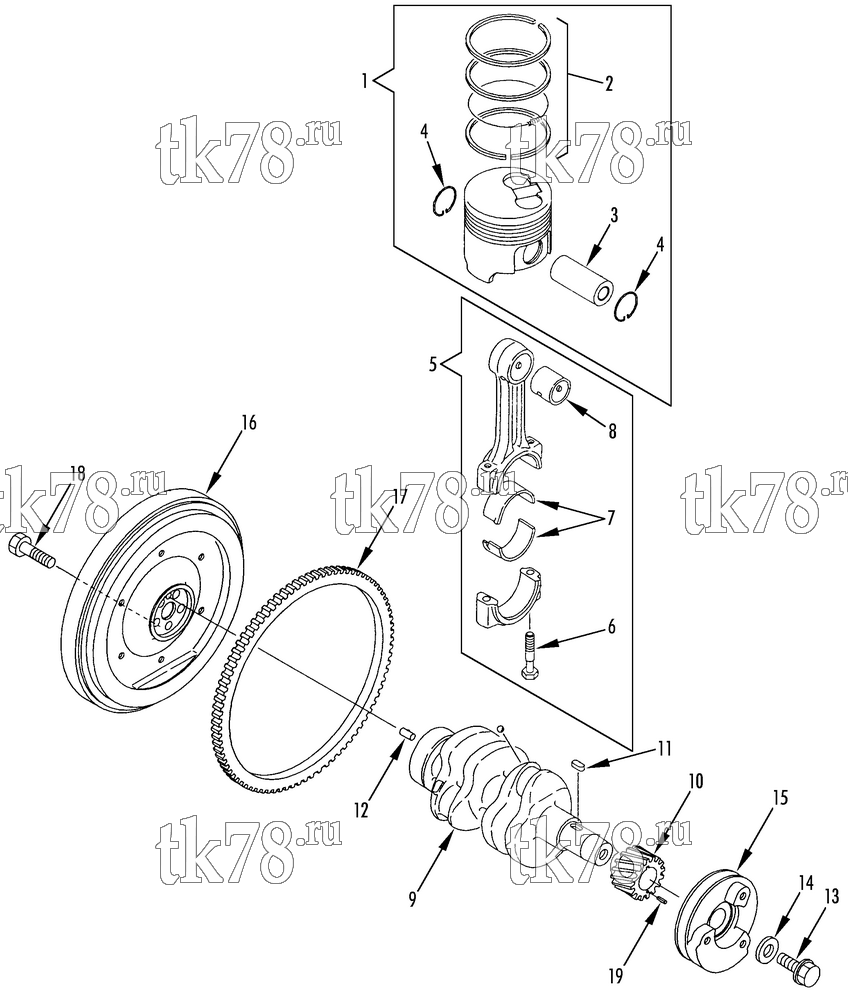

Установкa Thermo King TriPac Tier 1 Engine схема CRANKSHAFT & PISTON GROUP (TNE68C ETR) – 208D0
Обновление от: 6/22/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-523 | PISTON (standard incl 2-4) | 2 | |
| 2 | 13-524 | RING SET (std) | 2 | |
| 3 | 11-8753 | PIN - piston | 2 | |
| 4 | 11-7003 | CIRCLIP - piston | 4 | |
| 5 | 11-6075 | ROD - connecting | 2 | |
|
11-6075 OEM | Шатун двигателя Yanmar 249 / 366 / 374, JD/KD/MD-II | 39 060 ₽ |
|
|
10-11-6075 | Шатун двигателя Yanmar 249 / 366 / 374, JD/KD/MD-II | 25 180 ₽ |
|
| 6 | 11-8646 | BOLT - connecting rod | 4 | |
| 7 | 11-6077 | BEARING - connecting rod (standard) | 2 | |
|
10-11-6077 | Вкладыш шатунный STD, Yanmar 244 / 249 / 366 / 374 | 6 480 ₽ |
|
| 11-6079 | BEARING - connecting rod (0.25 mm us) | 2 | ||
|
10-11-6079 | Вкладыш шатунный 0.25, Yanmar 244 / 249 / 366 / 374 | 4 090 ₽ |
|
| 8 | 11-6078 | BUSHING - finished | 2 | |
|
10-11-6078 | Втулка шатуна, Yanmar 249, 366, 374 | 2 510 ₽ |
|
| 9 | 12-728 | CRANKSHAFT | 1 | |
| 10 | 11-6065 | GEAR | 1 | |
| 11 | 55-5813 | KEY | 1 | |
| 12 | 55-5816 | PIN - dowel | 1 | |
| 13 | 55-5818 | SCREW - pulley | 1 | |
| 14 | 55-5819 | WASHER | 1 | |
| 15 | 11-8815 | PULLEY | 1 | |
| 16 | 13-522 | FLYWHEEL | 1 | |
| 17 | 11-7031 | GEAR - ring | 1 | |
|
10-11-7031 | Зубья маховика, Yanmar 235, 249, 353, 366, 374, 388, 395 | 28 550 ₽ |
|
| 18 | 55-6382 | SCREW - flywheel | 5 | |
| 19 | 55-8655 | PIN - spring | 1 |
