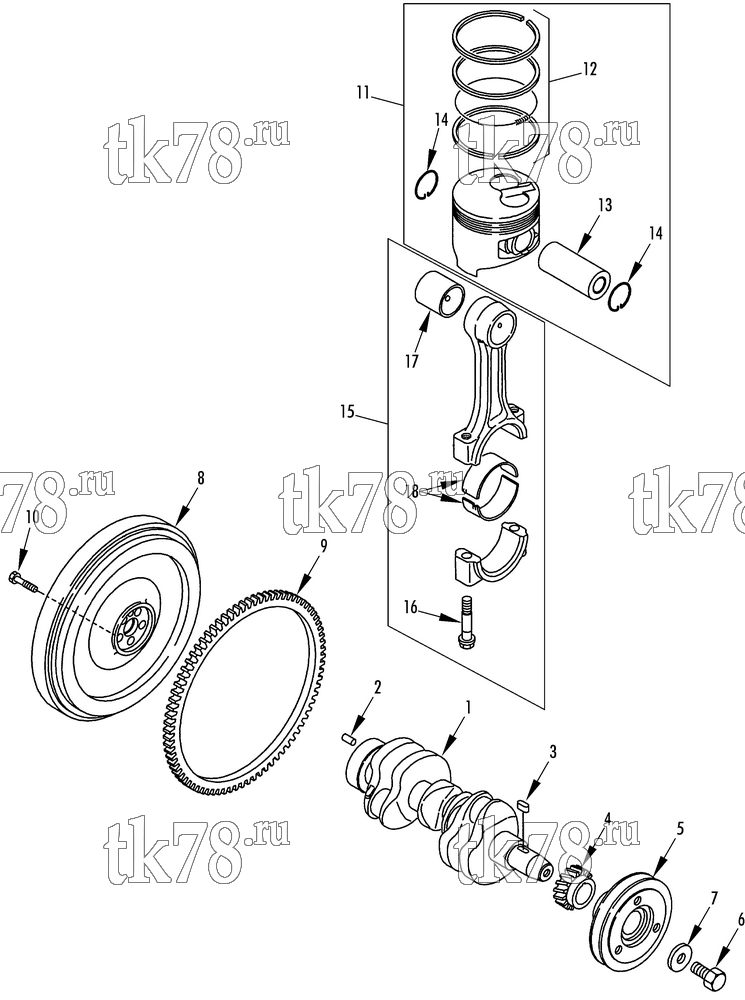

Установкa Thermo King TS-500 w/TK 3.76 Engine схема CRANKSHAFT & PISTON (TK 376) – 185F3
Обновление от: 11/20/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9669 | CRANKSHAFT - assembly | 1 | |
| 2 | 55-5816 | PIN - dowel (flywheel) | 1 | |
| 3 | 55-5813 | KEY - gear | 1 | |
| 4 | 11-9670 | GEAR - crankshaft | 1 | |
| 5 | 77-2756 | PULLEY - crankshaft | 1 | |
| 6 | 55-5818 | SCREW - pulley | 1 | |
| 7 | 55-5819 | WASHER | 1 | |
| 8 | 11-7039 | FLYWHEEL - assembly | 1 | |
| 9 | 11-7031 | GEAR - ring | 1 | |
|
10-11-7031 | Зубья маховика, Yanmar 235, 249, 353, 366, 374, 388, 395 | 28 550 ₽ |
|
| 10 | 55-6382 | SCREW - flywheel | 5 | |
| 11 | 11-9671 | PISTON KIT (std, incl rings, pin & circlip) | 3 | |
|
10-11-9671 | Поршень к-т (+кольца, палец, стопора), Std.,Yanmar 376 | 32 730 ₽ |
|
| 12 | 11-9672 | RING SET (std) | 3 | |
|
10-11-9672 | Кольца поршневые к-т (на 1 поршень), Std., Yanmar 376 | 12 380 ₽ |
|
| 11-9677 | PISTON KIT (0.25 os, incl rings, pin & circlip) | 3 | ||
|
10-11-9677 | Поршень к-т (+кольца, палец, стопора), 0.25 mm,Yanmar 376 | 32 730 ₽ |
|
| 11-9678 | RING SET (0.25 os) | 3 | ||
|
10-11-9678 | Кольца поршневые к-т (на 1 поршень), 0.25 mm, Yanmar 376 | 7 800 ₽ |
|
| 13 | 11-9673 | PIN - piston | 3 | |
| 14 | 11-9674 | CIRCLIP | 6 | |
| 15 | 11-9675 | ROD - connecting | 3 | |
| 16 | 51-604 | BOLT - connecting rod | 6 | |
| 17 | 13-413 | BUSHING - wrist pin | 3 | |
| 13-413 OEM | Втулка шатуна, Yanmar 370 | 3 620 ₽ |
|
|
| 18 | 13-922 | BEARING - connecting rod | 3 | |
| 13-922 OEM | Вкладыш шатунный STD, Yanmar 376 | 4 920 ₽ |
|
|
| PP-13-922 | Вкладыш шатунный STD, Yanmar 376 | 920 ₽ |
|
|
| 13-923 | BEARING - connecting rod (0.25 us) | 3 |
