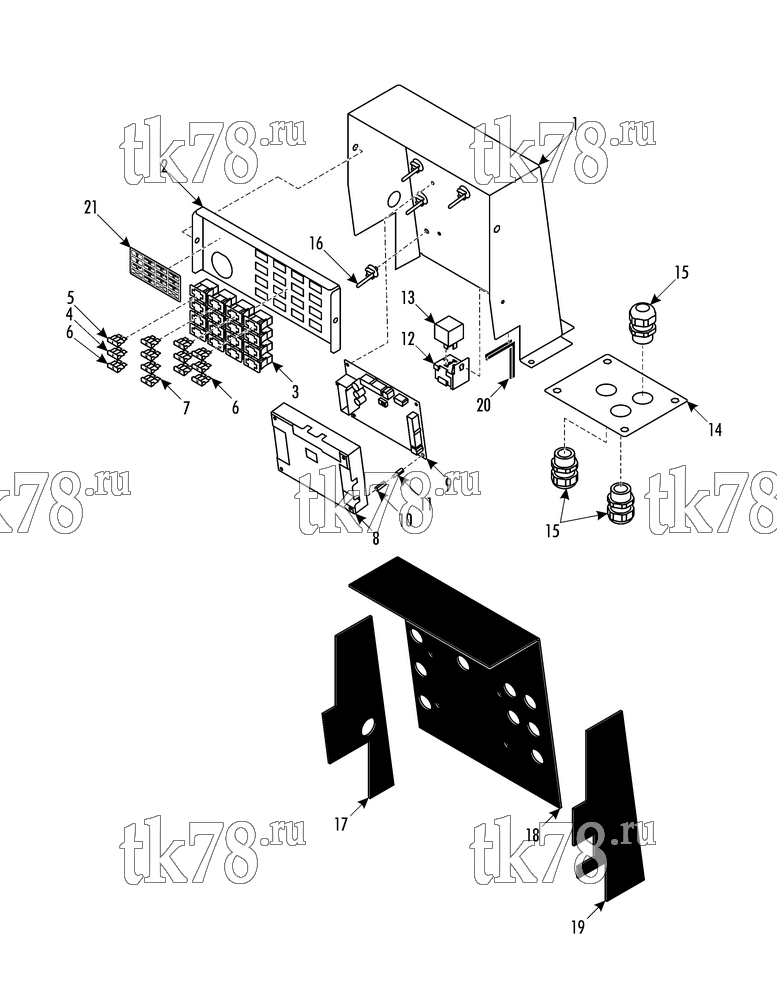

Установкa Thermo King TDD GO TRANSIT схема CONTROL PANEL – 265H3
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-935 | BRACKET - control panel | 1 | |
| 55-7172 | SCREW - bracket | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 2 | 93-936 | HOLDER - fuse | 1 | |
| 55-6994 | SCREW - holder | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 1 | ||
| 3 | 41-4965 | HOLDER - fuse | 16 | |
| 4 | 44-9524 | FUSE (3 amp, 32 V) | 1 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 5 | 41-1292 | FUSE (5 amp, 32 V) | 1 | |
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 6 | 44-9344 | FUSE (15 amp, 32 V) | 7 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 7 | 41-1771 | FUSE (30 amp, 32 V) | 4 | |
| 30-41-1771 | Предохранитель 32V 30А | 460 ₽ |
|
|
| 8 | 92-7576 | COVER - module | 1 | |
| 9 | 41-8140 | MODULE - CAN (EU version) | 1 | |
| 10 | 51-1850 | SPACER | 4 | |
| 11 | 51-1849 | SPACER | 4 | |
| 55-9195 | SCREW - module | 8 | ||
| 55-9057 | LOCKWASHER | 8 | ||
| 55-8410 | FLATWASHER | 12 | ||
| 12 | 44-5537 | SOCKET - relay | 1 | |
| 13 | 41-5657 | RELAY | 1 | |
| 55-5130 | RIVET - relay | 1 | ||
| 14 | 93-937 | HOLDER - bushing | 1 | |
| 55-6994 | SCREW - holder | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 15 | 41-6950 | CONNECTOR - liq tite | 3 | |
| 16 | 51-1631 | STRAP - cable | 9 | |
| 17 | 93-938 | INSULATION | 1 | |
| 18 | 93-939 | INSULATION | 1 | |
| 19 | 93-941 | INSULATION | 1 | |
| 20 | 92-3279 | RUBBER - profile | A/R | |
| 21 | 93-942 | NAMEPLATE - control panel | 1 |
