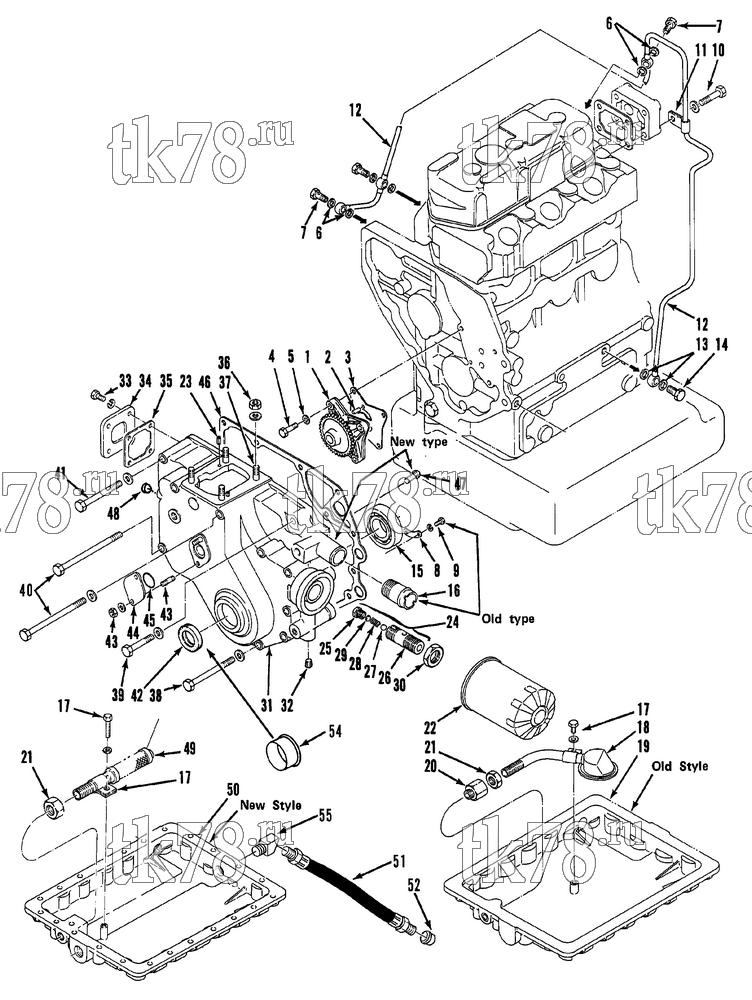

Установкa Thermo King TD-I схема OIL SYSTEM & GEAR COVER – 49G8
Обновление от: 2/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 101-267 | SHORT BLOCK - assembly | 1 | ||
| 1 | 11-5488 | PUMP - oil | 1 | |
|
10-11-5488 | Масляный насос, Yanmar 235, 353 | 29 540 ₽ |
|
| 2 | 55-4636 | PIN - dowel | 2 | |
| 3 | 33-1519 | GASKET - oil pump | 1 | |
| 4 | 55-4637 | SCREW - pump | 3 | |
| 5 | 55-4638 | WASHER | 3 | |
| 6 | 33-1524 | GASKET - screw | 1 | |
| 7 | 55-4645 | BOLT - oil tube (hollow) | 1 | |
| 8 | 11-5184 | RETAINER - bearing (engines before S/N K02290) | 1 | |
| 9 | 55-4753 | SCREW | 2 | |
| 55-4752 | LOCKWASHER | 2 | ||
| 10 | 55-1140 | SCREW - cover | 1 | |
| 55-4613 | WASHER | 1 | ||
| 11 | 11-5489 | RETAINER - tube | 1 | |
| 12 | 11-5196 | TUBE - oil tube | 1 | |
| 13 | 55-4733 | GASKET - hollow oil tube | 2 | |
| 14 | 55-4644 | BOLT - oil tube (hollow) | 1 | |
| 15 | 11-5481 | BEARING - ball | 1 | |
|
10-11-5481 | Подшипик, передний, Yanmar 235, 353 | 2 650 ₽ |
|
| 16 | 11-5116 | JOINT - coolant | 1 | |
| 17 | 55-4652 | SCREW - oil pickup tube | 1 | |
| 55-4607 | WASHER | 1 | ||
| 55-4651 | CLAMP - oil tube (0.55 id x 14 mm) | 1 | ||
| 55-5142 | CLAMP - oil tube (0.63 id x 16 mm) | 1 | ||
| 18 | 11-5117 | PIPE - oil pickup | 1 | |
| 19 | 11-5474 | PAN - oil sump | 1 | |
| 20 | 55-4640 | CONNECTOR | 1 | |
| 21 | 55-4639 | NUT (1/4 pipe thread) | 1 | |
| 55-5141 | NUT (3/8 pipe thread) | 1 | ||
| 22 | 11-6182 | FILTER - oil | 1 | |
|
11-6182 OEM | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 2 820 ₽ |
|
|
US-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 1 200 ₽ |
|
|
10-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 630 ₽ |
|
| 23 | 55-5834 | PIN - spring | 2 | |
| 24 | 11-5045 | VALVE - oil pressure control | 1 | |
| 25 | NSS | RETAINER | 1 | |
| 26 | NSS | BODY - control valve | 1 | |
| 27 | NSS | BALL | 1 | |
| 28 | NSS | SPRING | 1 | |
| 29 | NSS | SHIM - valve | 1 | |
| 30 | 55-4642 | NUT | 1 | |
| 31 | 11-5500 | HOUSING - gear (incl 15, 16, 32-37) | 1 | |
| 32 | 55-4593 | PLUG | 2 | |
| 33 | 55-4652 | BOLT - cover | 4 | |
| 55-4608 | LOCKWASHER | 4 | ||
| 34 | 11-5175 | COVER | 1 | |
| 35 | 33-1508 | GASKET - cover | 1 | |
| 36 | 55-4621 | NUT | 4 | |
| 55-4622 | WASHER - sealing | 4 | ||
| 37 | 55-4620 | STUD | 4 | |
| 38 | 55-4648 | SCREW - housing (85 mm) | 5 | |
| 39 | 55-1141 | SCREW - housing (45 mm) | 1 | |
| 40 | 55-4649 | SCREW - housing (120 mm) | 3 | |
| 41 | 55-4647 | SCREW - housing (75 mm) | 2 | |
| 55-4613 | WASHER | 11 | ||
| 42 | 33-1509 | SEAL - oil | 1 | |
|
10-33-1509 | Сальник коленвала передний, Yanmar 235 / 353 | 1 800 ₽ |
|
| 43 | 55-4646 | STUD - cover | 2 | |
| 55-4607 | WASHER | 2 | ||
| 55-4750 | NUT | 2 | ||
| 44 | 13-933 | COVER | 1 | |
| 45 | 33-1511 | O-RING | 1 | |
| 46 | 33-3938 | GASKET - gear cover | 1 | |
| 47 | 11-5184 | RETAINER - bearing (engines before S/N K09143) | 1 | |
| 48 | 55-2454 | SCREW - retainer | 2 | |
| 49 | 11-5239 | TUBE - oil pickup | 1 | |
| 50 | 11-5474 | PAN - oil sump | 1 | |
| 51 | 11-1086 | HOSE - oil drain | 1 | |
| 55-3363 | ELBOW - drain hose (45 deg) | 1 | ||
| 52 | 55-3229 | CAP - oil drain | 1 | |
| 53 | 11-2606 | CLIP - hose | 1 | |
| 55-1510 | SCREW - clip | 1 | ||
| 55-431 | FLATWASHER | 1 | ||
| 55-5292 | NUT | 1 | ||
| 54 | 11-5966 | SLEEVE - overhaul | 1 | |
|
10-11-5966 | Втулка передняя, Yanmar 235, 353 | 8 780 ₽ |
|
| 55 | 55-3331 | ELBOW | 1 | |
| 30-276 | GASKET SET - overhaul | 1 | ||
| 10-30-276 | Набор прокладок, Yanmar 353 | 20 420 ₽ |
|
