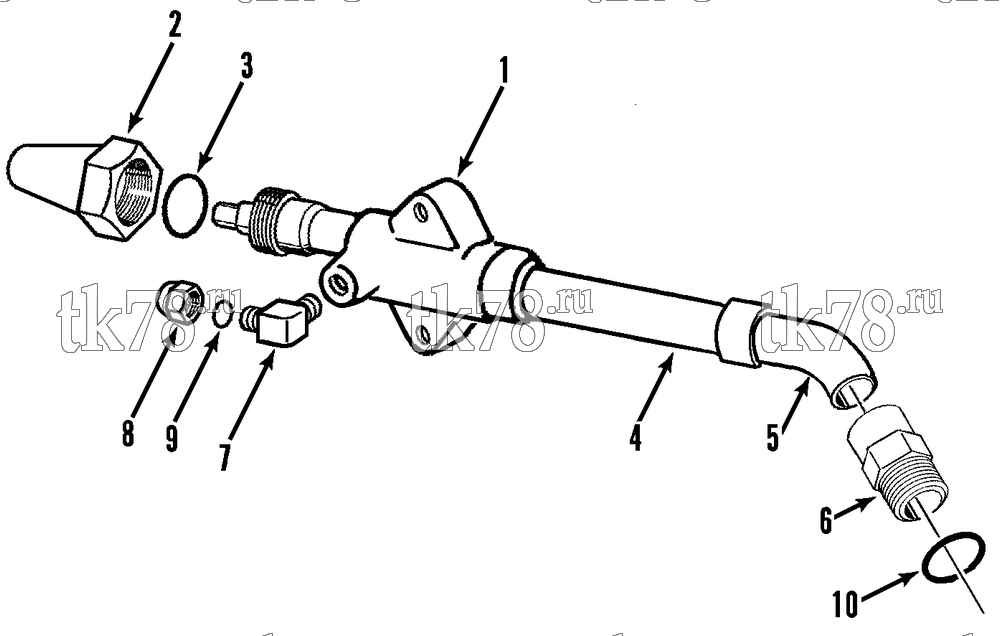

Установкa Thermo King T1 Series M52 Thru M67 схема VALVE ASSEMBLY - SUCTION (R22) – 142E11
Обновление от: 10/20/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 66-8891 | VALVE - suction (before 4/00) | 1 | ||
| 66-9431 | VALVE - suction (after 3/00) | 1 | ||
| 1 | 66-3576 | VALVE - suction | 1 | |
| 2 | 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | |
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
| 3 | 33-3007 | GASKET - cap | 1 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 4 | 66-8892 | TUBE - suction (before 4/00) | 1 | |
| 66-9432 | TUBE - suction (after 3/00) | 1 | ||
| 5 | 55-2706 | ELBOW (45 deg, before 4/00) | 1 | |
| 6 | 55-4185 | ADAPTER | 1 | |
| 7 | 55-466 | ELBOW | 1 | |
| 8 | 55-1983 | CAP - elbow | 1 | |
| 9 | 33-768 | GASKET - cap | 1 | |
| 10 | 33-544 | O-RING | 1 |
