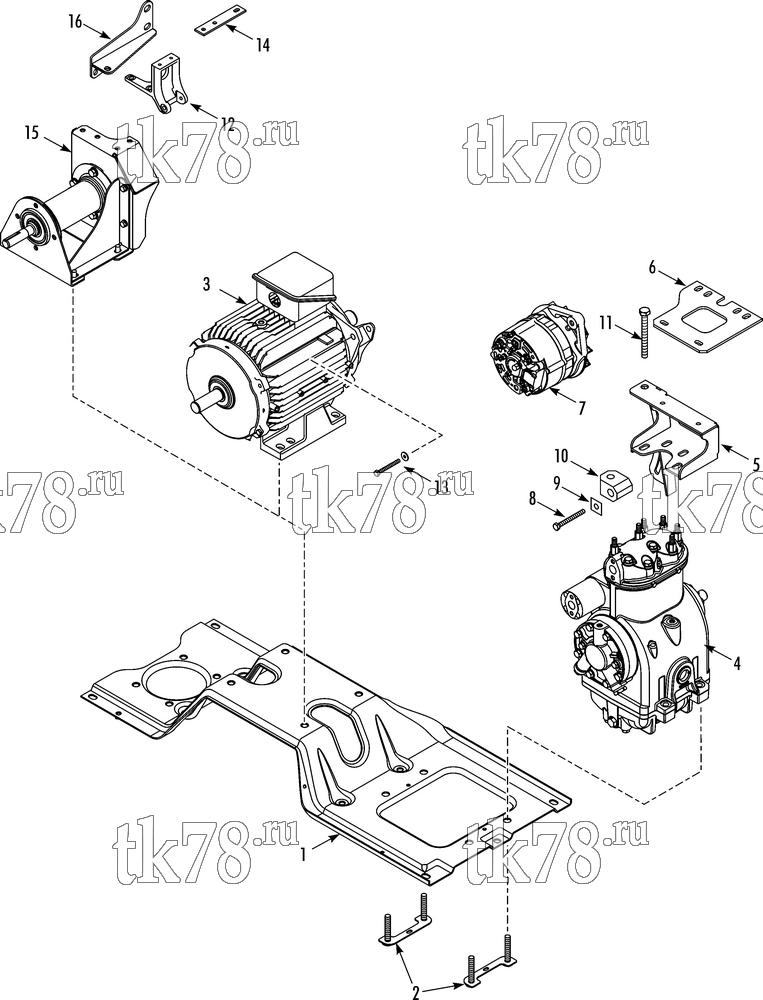

Установкa Thermo King T-800R SPECTRUM EMEIA схема COMPRESSOR & MOTOR/JACKSHAFT MOUNTING – 259D0
Обновление от: 4/22/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8934 | TRAY - power | 1 | |
| 55-7355 | SCREW - tray | 9 | ||
| 55-7347 | LOCKWASHER | 9 | ||
| 55-8536 | FLATWASHER | 9 | ||
| 2 | 92-8124 | BOLTSTRIP - compressor | 2 | |
| 55-7172 | SCREW - boltstrip | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 3 | 104-801 | MOTOR - 7.2 hp | 1 | |
| 55-7358 | SCREW - motor | 4 | ||
| 55-7122 | WASHER (Belleville) | 4 | ||
| 55-7144 | WASHER - special | 4 | ||
| 4 | 102-1072 | COMPRESSOR - X214 (see 242G1) | 1 | |
| 55-7344 | NUT - compressor | 4 | ||
| 55-399 | FLATWASHER | 4 | ||
| 5 | 92-9601 | BRACKET - compressor/alternator | 1 | |
| 55-8658 | NUT - bracket | 4 | ||
| 55-7122 | WASHER (Belleville) | 4 | ||
| 6 | 93-646 | BRACKET - compressor/frame | 1 | |
| 55-6987 | SCREW - bracket to bracket | 2 | ||
| 55-7341 | SCREW - bracket to frame | 2 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 7 | 45-2500 | ALTERNATOR (65 amp) | 1 | |
| 8 | 51-1867 | SCREW - alternator adjust (M8 x 50) | 1 | |
| 55-7342 | LOCKWASHER (M8) | 1 | ||
| 55-7085 | FLATWASHER (M8) | 1 | ||
| 9 | 92-9604 | GAUGE - angle adjust | 1 | |
| 10 | 77-3052 | BLOCK - adjust | 1 | |
| 11 | 51-2189 | SCREW - alternator adjust (M10 x 150) | 1 | |
| 55-7122 | WASHER (Belleville) | 1 | ||
| 12 | 92-9607 | BRACKET - alternator (30s) | 1 | |
| 13 | 55-8379 | SCREW - alternator pivot (M10 x 80) | 1 | |
| 55-7347 | LOCKWASHER | 1 | ||
| 55-8536 | FLATWASHER | 1 | ||
| 14 | 92-8385 | BRACKET - alternator bracket to frame (30s) | 1 | |
| 15 | 78-1695 | JACKSHAFT (30s, see 259E2) | 1 | |
| 16 | 92-9608 | BRACKET - tensioner (30s) | 1 | |
| 55-8402 | SCREW - bracket to frame (8M x 70) | 2 | ||
| 55-7691 | SCREW - bracket (8M x 16) | 2 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-7339 | NUT | 2 |
