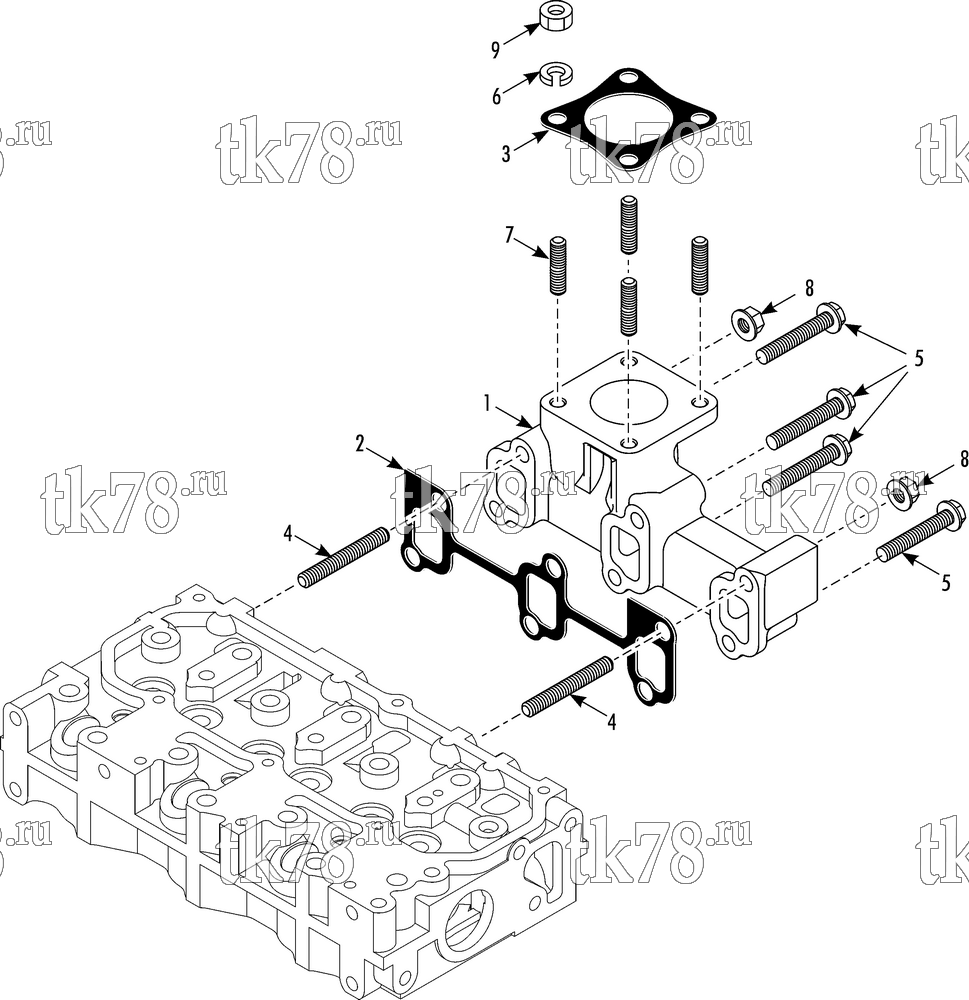

Установкa Thermo King T-800R SPECTRUM EMEIA схема EXHAUST MANIFOLD (370N) – 236H5
Обновление от: 4/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-1028 | MANIFOLD - exhaust | 1 | |
| 2 | 33-3824 | GASKET - exhaust manifold | 1 | |
| 3 | 33-1907 | GASKET - silencer | 1 | |
|
10-33-1907 | Прокладка глушителя, Yanmar 388 / 395 | 1 070 ₽ |
|
| 4 | 51-601 | STUD - manifold | 2 | |
| 5 | 51-602 | SCREW - manifold | 4 | |
| 6 | 55-6183 | LOCKWASHER | 4 | |
| 7 | 55-6184 | STUD - exhaust pipe | 4 | |
| 8 | 51-594 | NUT - manifold | 2 | |
| 9 | 55-6186 | NUT - exhaust pipe | 4 | |
| 30-278 | GASKET SET (see 214A1) | 1 | ||
|
10-30-278 | Набор прокладок, Yanmar 370 | 48 000 ₽ |
|
