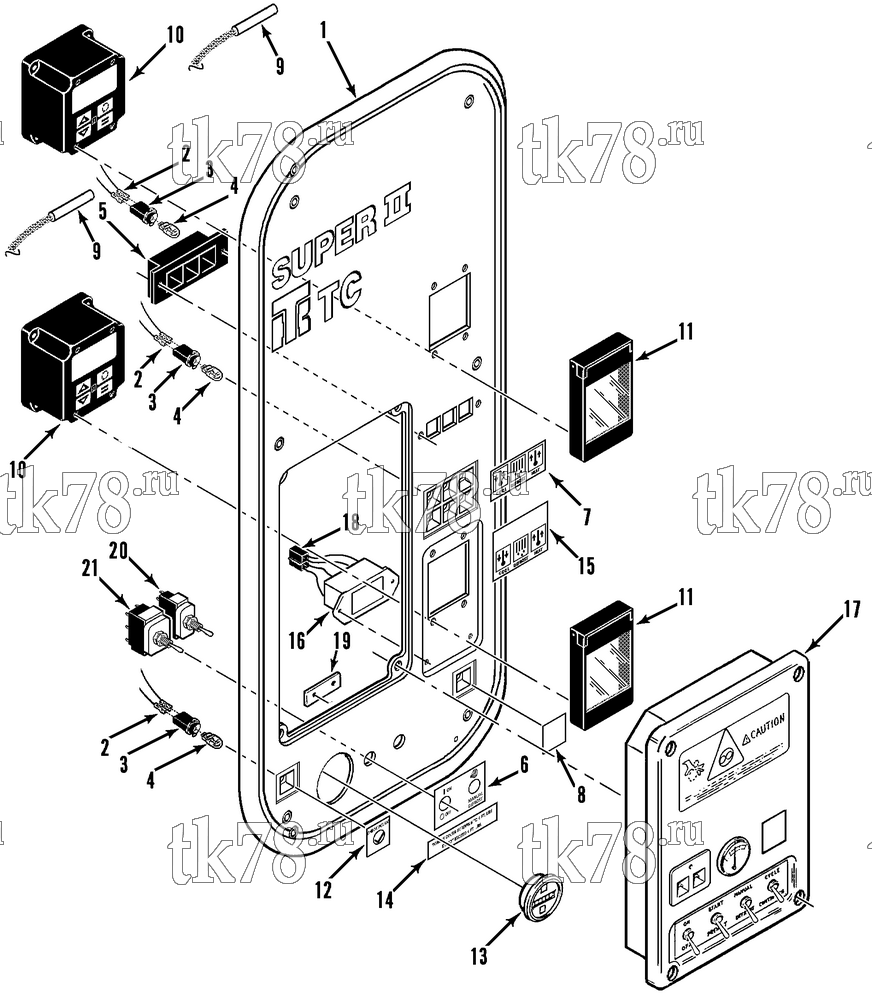

Установкa Thermo King Super-II Multi-Temp w/se 2.2 Engine схема CONTROL BOX COVER (TC & TCI) – 111A13
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3489 | PANEL - control box | 1 | |
| 2 | 44-7054 | TERMINAL - bulb | 14 | |
| 3 | 44-6462 | SOCKET - bulb | 7 | |
| 4 | 44-3711 | BULB - light | 7 | |
| 5 | 91-140 | HOUSING - light | 1 | |
| 55-4487 | SCREW - housing | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-8714 | STANDOFF - terminal board | 2 | ||
| 6 | 91-3483 | NAMEPLATE - remote evaporator (on/off) | 1 | |
| 7 | 91-157 | NAMEPLATE - cool/defrost/heat (remote evaporator) | 1 | |
| 8 | 91-3484 | NAMEPLATE - indicator light | 1 | |
| 9 | 44-9655 | SENSOR - thermostat/thermometer | 2 | |
| 10 | 45-1579 | THERMOSTAT - TG V | 2 | |
| 92-6219 | FACEPLATE - TG V (includes 91-4642 overlay) | 1 | ||
| 91-4642 | OVERLAY - TG V (transparent) | 1 | ||
| 91-4236 | NAMEPLATE - TG V Setup Codes | 2 | ||
| 55-4370 | SCREW - thermostat & cover | 8 | ||
| 11 | 91-2674 | COVER - thermostat | 2 | |
|
10-91-2674 | Крышка термостата | 9 200 ₽ |
|
| 33-2145 | GASKET - cover | 2 | ||
| 33-2128 | GASKET - thermostat | 2 | ||
| 99-9440 | NAMEPLATE - Rear | 1 | ||
| 99-9439 | NAMEPLATE - Front | 1 | ||
| 12 | 91-3485 | NAMEPLATE - coolant | 1 | |
| 13 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 14 | 91-1135 | NAMEPLATE - Cover Screw Torque | 1 | |
| 15 | 91-943 | NAMEPLATE - Cool/Defrost/Heat (Front Evaporator) | 1 | |
| 16 | 44-8017 | DETECTOR - liquid level | 1 | |
| 55-4487 | SCREW - detector | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 17 | 45-1670 | PANEL - switch (w/o Cycle Sentry, see 100D9) | 1 | |
| 45-1473 | PANEL - switch (w/ Cycle Sentry, see 102G2) | 1 | ||
| 55-6352 | SCREW - panel (1.0 in lg) | 2 | ||
| 55-6353 | SCREW - panel (2.0 in lg) | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 18 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 19 | 44-1458 | JUMPER | 1 | |
| 91-3486 | NAMEPLATE | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 20 | 44-7793 | SWITCH - defrost (rear evaporator) | 1 | |
|
10-44-7793 | Выключатель 1PST MOM | 8 890 ₽ |
|
| 21 | 44-7929 | SWITCH - on/off (rear evaporator) | 1 | |
|
10-44-7929 | Выключатель двухполюсный, SB-III/SMX/SMX-II/SL | 5 920 ₽ |
|
