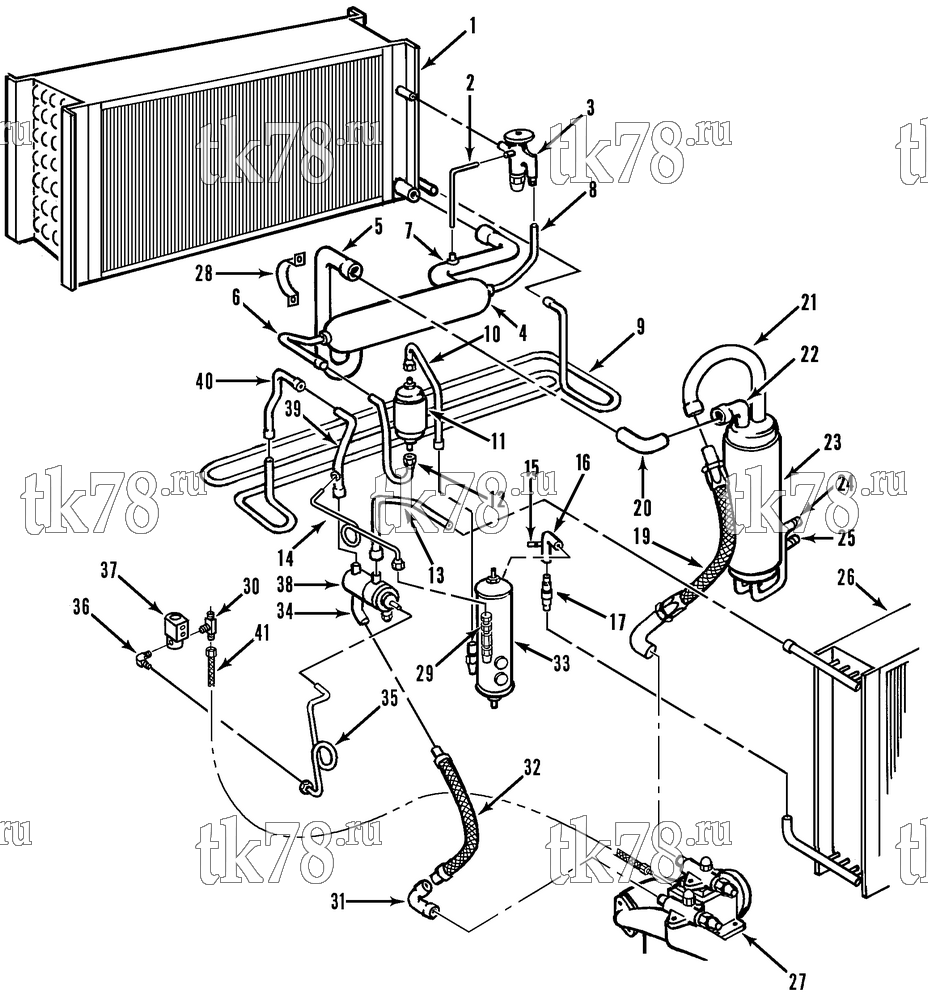

Установкa Thermo King Sentry MAX w/di 2.2 Engine схема REFRIGERATION COMPONENTS (w/ SOLDER FITTING) – 112C10
Обновление от: 4/20/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1452 | COIL - evaporator | 1 | |
| 2 | 66-6616 | TUBE - equalizer | 1 | |
| 3 | 66-7720 | VALVE - expansion (R12, see 87G7) | 1 | |
| 66-6567 | ELEMENT - power | 1 | ||
| 66-9378 | SCREEN - inlet | 1 | ||
| 66-5663 | VALVE - expansion (R12, see 87G7) | 1 | ||
| 66-4212 | ELEMENT - power | 1 | ||
| 61-812 | SCREEN - inlet | 1 | ||
| 4 | 67-1104 | HEAT EXCHANGER (w/ solder fitting) | 1 | |
| 203-396 | ADHESIVE | A/R | ||
| 99-9555 | INSULATION - heat exchanger | 2 | ||
| 5 | 66-3224 | TUBE | 1 | |
| 6 | 66-3225 | TUBE | 1 | |
| 7 | 66-3222 | TUBE | 1 | |
| 66-5752 | FITTING - solder | 1 | ||
| 8 | 66-6966 | TUBE | 1 | |
| 9 | 67-291 | TUBE - defrost | 1 | |
| 99-6353 | CLAMP | 2 | ||
| 55-1587 | SCREW | 2 | ||
| 55-2699 | LOCKWASHER | 2 | ||
| 10 | 66-5787 | TUBE - receiver to dehydrator | 1 | |
| 11 | 61-600 | DEHYDRATOR (see 97A14) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 12 | 66-5753 | TUBE - drier to bulkhead | 1 | |
| 13 | 66-3858 | TUBE | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 14 | 66-6967 | TUBE | 1 | |
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 66-5778 | TUBE - check valve | 1 | |
| 99-3060 | FITTING | 1 | ||
| 17 | 66-5721 | VALVE - check (1/2 od) | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 18 | 55-2299 | BUSHING | 1 | |
| 19 | 66-6621 | VIBRASORBER - suction | 1 | |
|
30-66-6621 | Трубка | 29 000 ₽ |
|
| 20 | 66-602 | ELBOW | 1 | |
| 21 | 66-4270 | ELBOW | 1 | |
| 22 | 66-3257 | ELBOW | 1 | |
| 23 | 67-769 | TANK - accumulator | 1 | |
| 24 | 66-3258 | TUBE - water | 1 | |
| 25 | 66-3259 | TUBE | 1 | |
| 26 | 67-681 | COIL - condenser (see 59B6) | 1 | |
| 27 | NSS | COMPRESSOR (see 86G8) | 1 | |
| 28 | 99-978 | CLAMP - heat exchanger | 2 | |
| 29 | 66-5501 | VALVE - check | 1 | |
| 30 | 55-4522 | TEE | 1 | |
| 31 | 66-1332 | TUBE | 1 | |
| 32 | 66-6968 | VIBRASORBER - discharge | 1 | |
|
10-66-6968 | Вибросорбер (66-4636) | 11 880 ₽ |
|
| 99-1647 | BRACKET | 1 | ||
| 55-5920 | U-BOLT | 1 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-5292 | NUT | 2 | ||
| 33 | 67-1179 | TANK - receiver (see 90B7) | 1 | |
| 34 | 66-1781 | TUBE | 1 | |
| 35 | 66-4977 | TUBE | 1 | |
| 36 | 55-4489 | ELBOW | 1 | |
| 37 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - solenoid (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 99-1686 | BRACKET | 1 | ||
| 55-1384 | SCREW | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 38 | 66-4974 | VALVE - 3-way (see 92A1) | 1 | |
| 55-214 | SCREW | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 99-4794 | BOLTPLATE | 1 | ||
| 55-4967 | NUT | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 39 | 66-3381 | TUBE | 1 | |
| 66-5752 | FITTING - solder | 1 | ||
| 40 | 66-1490 | TUBE | 1 | |
| 55-1118 | CLAMP | 1 | ||
| 41 | 66-4961 | HOSE | 1 | |
| 66-4961 OEM | Тефлоновая трубка, SB-II/III / TD-II | 3 920 ₽ |
|
