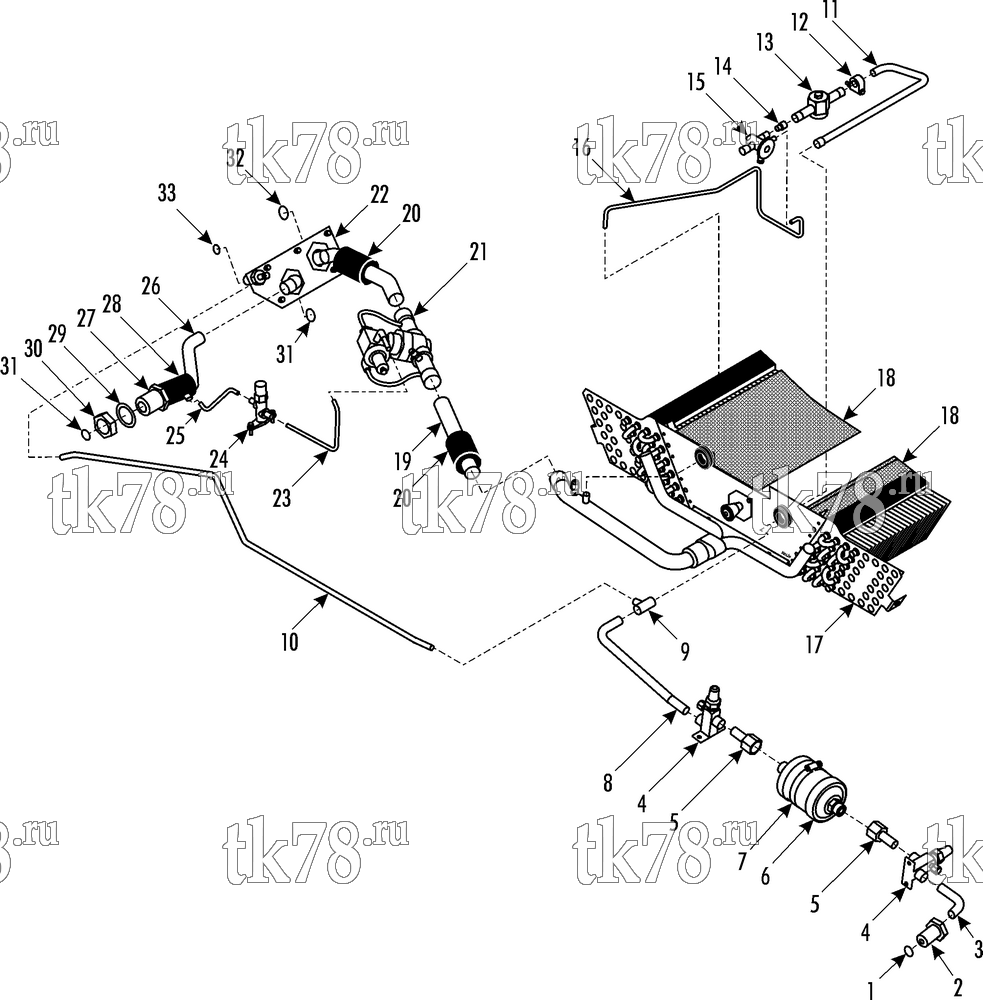

Установкa Thermo King SRT-III схема EVAPORATOR REFRIGERATION (w/ EPR VALVE) – 175D8
Обновление от: 7/22/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-566 | O-RING | 1 | |
| 2 | 55-7064 | ADAPTER - bulkhead | 1 | |
| 3 | 61-2245 | TUBE | 1 | |
| 4 | 66-4694 | VALVE - shutoff | 2 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 2 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 5 | 61-2246 | TUBE - assembly | 2 | |
| 61-2247 | TUBE | 2 | ||
| 55-6838 | NUT - shoulder | 2 | ||
| 55-6837 | SHOULDER | 2 | ||
| 6 | 66-8344 | DEHYDRATOR - filter/drier | 1 | |
| 33-1223 | O-RING | 2 | ||
| 7 | 55-2688 | CLAMP - dehydrator | 1 | |
| 8 | 61-2248 | TUBE - valve to tee | 1 | |
| 9 | 55-2181 | TEE (1/2 x 1/2 x 3/8) | 1 | |
| 10 | 61-1694 | TUBE - tee to plate (Radius 11.5 m) | 1 | |
| 61-1682 | TUBE - tee to plate (Radius 5 m, 7.5 m) | 1 | ||
| 11 | 61-2249 | TUBE - tee to sight glass | 1 | |
| 12 | 91-758 | CLAMP - tube | 1 | |
| 55-7088 | SCREW - clamp | 1 | ||
| 55-7033 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 13 | 66-1188 | INDICATOR - liquid | 1 | |
| 14 | 61-2250 | TUBE - reduction | 1 | |
| 15 | 61-1685 | VALVE - expansion | 1 | |
| 16 | 61-1686 | TUBE - equalizer | 1 | |
| 17 | 67-1862 | COIL - evaporator (SRT-III 1000) | 1 | |
| 67-1863 | COIL - evaporator (SRT-III 1004) | 1 | ||
| 55-7035 | SCREW - coil (25 mm lg) | 4 | ||
| 55-7172 | SCREW - coil (16 mm lg) | 2 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 92-2320 | INSULATION - coil | 2 | ||
| 18 | 91-8209 | FILTER - coil | 4 | |
| 19 | 61-1687 | TUBE - coil to epr valve | 1 | |
| 20 | 92-2015 | TUBE - sponge rubber (5 ft) | A/R | |
| 21 | 61-1688 | VALVE - epr | 1 | |
| 22 | 61-1695 | ADAPTER/PLATE - assembly (Radius 11.5 m) | 1 | |
| 61-1689 | ADAPTER/PLATE - assembly (Radius 5 m, 7.5 m) | 1 | ||
| 55-7340 | SCREW - plate | 5 | ||
| 55-7404 | LOCKWASHER | 5 | ||
| 55-7033 | FLATWASHER | 5 | ||
| 23 | 61-1690 | TUBE - epr to shutoff valve | 1 | |
| 24 | 66-4102 | VALVE - shutoff | 1 | |
| 55-7036 | SCREW - valve | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 25 | 61-1691 | TUBE - shutoff valve to tube | 1 | |
| 26 | 61-1692 | TUBE - adapter (Radius 11.5 m) | 1 | |
| 61-1693 | TUBE - adapter (Radius 5 m, 7.5 m) | 1 | ||
| 66-5752 | FITTING - header | 1 | ||
| 27 | 66-6840 | ADAPTER - bulkhead | 1 | |
| 28 | 92-2017 | TUBE - sponge rubber (3 ft) | A/R | |
| 29 | 55-5741 | LOCKWASHER | 1 | |
| 30 | 55-5740 | NUT | 1 | |
| 31 | 33-3165 | O-RING (1-3/16 id) | 2 | |
| 32 | 33-3166 | O-RING (1-7/16 id) | 1 | |
| 33 | 33-1015 | O-RING (3/8) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
