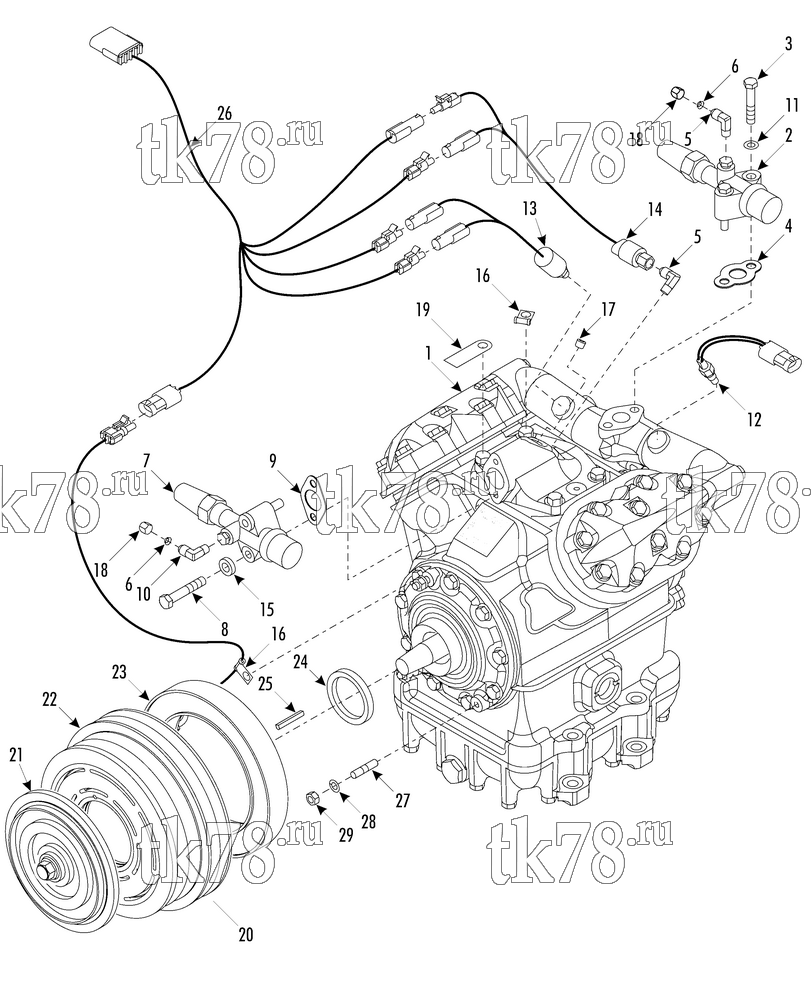

Установкa Thermo King SR-70 Plus схема COMPRESSOR GROUP (1E46624G01, KIT 701192) – 232G2
Обновление от: 7/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (subassy, see 228E5) | 1 | |
| 8102-917 | COMPRESSOR - X430 C5 (subassy reman, see 228E5) | 1 | ||
| 2 | 66-2140 | VALVE - discharge | 1 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 3 | 55-201 | SCREW - valve to compressor | 2 | |
| 4 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 5 | 55-308 | ELBOW | 2 | |
| 6 | 33-768 | GASKET | 2 | |
| 7 | 66-3576 | VALVE - suction | 1 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 8 | 55-6776 | SCREW - valve to compressor | 2 | |
| 9 | 33-2541 | GASKET - suction valve | 1 | |
| 10 | 55-466 | ELBOW | 1 | |
| 11 | 55-895 | FLATWASHER | 2 | |
| 12 | 41-3345 | SENSOR - temperature | 1 | |
| 13 | 41-4146 | SWITCH - hpco | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 14 | 41-4147 | SWITCH - lpco | 1 | |
| 41-4530 | SWITCH - only | 1 | ||
| 15 | 55-6804 | WASHER - sealing | 2 | |
| 16 | 55-5261 | CLAMP | 2 | |
| 17 | 55-433 | PLUG | 1 | |
| 18 | 55-1983 | CAP | 2 | |
| 19 | 92-4114 | NAMEPLATE - R134a | 1 | |
| 20 | 107-365 | CLUTCH 2-B/2-A 24VDC (Dongyang) | 1 | |
| 21 | 77-2993 | HUB & ARMATURE | 1 | |
| 22 | 77-2994 | PULLEY (2-B/2-A grooves, 8.03/8.90 in od) | 1 | |
| 23 | 45-2350 | FIELD - clutch (24V) | 1 | |
| 24 | 77-1491 | SPACER | 1 | |
| 25 | 55-9088 | KEY - shaft | 1 | |
| 26 | 41-6795 | HARNESS - compressor | 1 | |
| 27 | 55-3451 | STUD - clutch to compressor | 3 | |
| 28 | 55-790 | LOCKWASHER | 3 | |
| 29 | 55-789 | NUT | 3 |
