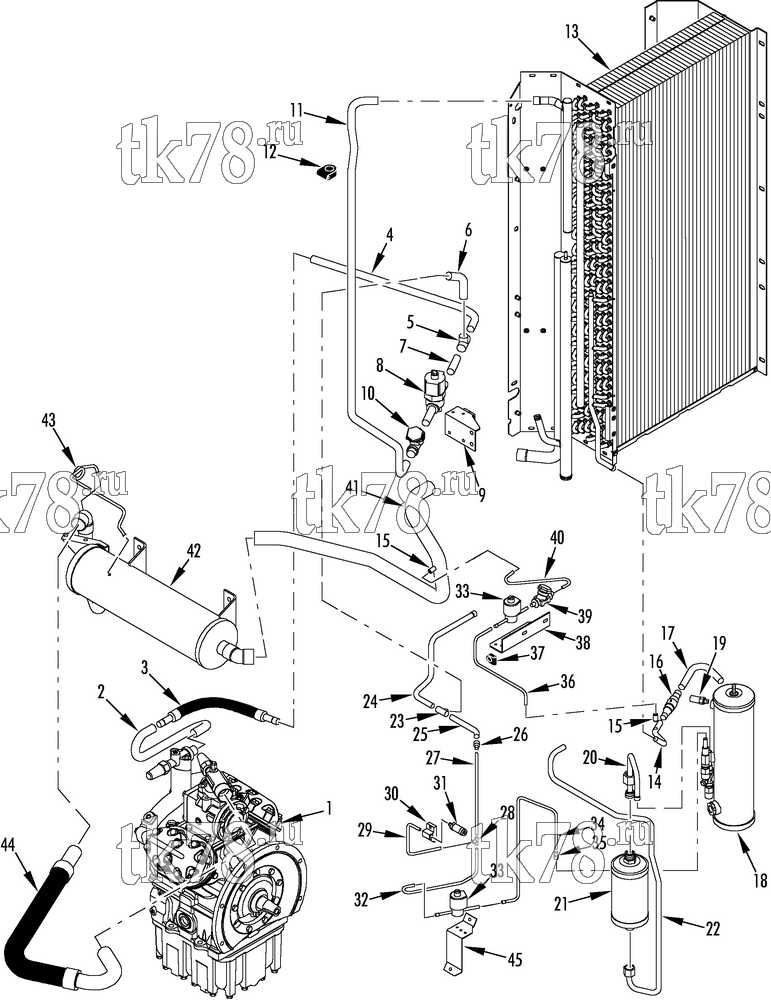

Установкa Thermo King SPECTRUM SB TCI схема CONDENSER REFRIGERATION – 185B9
Обновление от: 8/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-902 | COMPRESSOR - X430 LS C5 Multi-Temp (new exchange 7 qt, less/ filter & oil, see 185B2) | 1 | |
| 2 | 66-4987 | TUBE - discharge | 1 | |
| 3 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 4 | 66-6723 | TUBE - discharge | 1 | |
| 5 | 55-3518 | TEE | 1 | |
| 6 | 61-2921 | TUBE - bypass | 1 | |
| 7 | 66-6474 | TUBE - tee to valve | 1 | |
| 8 | 61-1300 | VALVE - solenoid | 1 | |
|
61-1300 OEM | Клапан Ø 18мм, SB/SB-III/SMX/SMX-II/MD-II/RD-II/SL/SLX/SLXe | 41 690 ₽ |
|
| 44-5174 | COIL | 1 | ||
| 60-186 | KIT - repair | 1 | ||
| 9 | 91-9210 | BRACKET - solenoid | 1 | |
| 55-826 | SCREW - bracket | 3 | ||
| 55-411 | FLATWASHER | 6 | ||
| 55-4118 | NUT | 3 | ||
| 10 | 66-6586 | VALVE - check (see 106C14) | 1 | |
| 11 | 61-5559 | TUBE - check valve to coil | 1 | |
| 12 | 91-372 | CLAMP - tube (3/4) | 2 | |
| 55-263 | SCREW - clamp | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-4118 | NUT | 2 | ||
| 13 | 67-2218 | COIL - condenser/radiator (see 173A4) | 1 | |
| 14 | 61-2194 | TUBE - coil to valve | 1 | |
| 15 | 66-5752 | FITTING - tube | 2 | |
| 16 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 17 | 61-2193 | TUBE - valve to tank | 1 | |
| 18 | 67-2653 | TANK - receiver (see 185B4) | 1 | |
| 19 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 20 | 61-2196 | TUBE - receiver to dehydrator | 1 | |
| 21 | 61-600 | DEHYDRATOR (see 160A4) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 22 | 66-6389 | TUBE - drier to exchanger | 1 | |
| 23 | 55-2296 | TEE (1/2 x 1/2 x 1/2) | 1 | |
| 24 | 61-2922 | TUBE - tee to defrost | 1 | |
| 25 | 61-2923 | TUBE - coupling to tee | 1 | |
| 26 | 55-7450 | COUPLING | 1 | |
| 27 | 66-7943 | TUBE - bushing to tee | 1 | |
| 28 | 66-4346 | TEE (1/4 x 1/4 x 1/4) | 1 | |
| 29 | 66-9384 | TUBE - pressure (hot gas) | 1 | |
| 30 | 66-9246 | ADAPTER - transducer | 1 | |
| 31 | 41-7959 | TRANSDUCER - pressure | 1 | |
| 42-1309 OEM | Трансдьюсер | 13 900 ₽ |
|
|
|
10-42-1309 | Трансдьюсер, SB-XXX/SB-III | 7 140 ₽ |
|
| 203-393 | SEALER - thread | A/R | ||
| 32 | 66-7941 | TUBE - pressure (hot gas) | 1 | |
| 33 | 66-7636 | VALVE - solenoid, purge | 2 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL (12V) | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-8786 | NUT | 1 | ||
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 34 | 61-2197 | TUBE - valve to tank | 1 | |
| 35 | 66-4341 | COUPLING - tube to receiver | 1 | |
| 36 | 61-2925 | TUBE - condenser to purge valve | 1 | |
| 37 | 55-6388 | CLAMP - tube | 2 | |
| 55-3031 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 38 | 66-7945 | BRACKET - solenoid & check valve | 1 | |
| 55-145 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-6863 | INSERT - threaded | 2 | ||
| 39 | 66-3653 | VALVE - check (see 9G12) | 1 | |
|
10-66-3653 | Проверочный клапан 1/4 | 10 160 ₽ |
|
| 40 | 61-2924 | TUBE - check valve to suction | 1 | |
| 41 | 61-2920 | TUBE - accumulator to exchanger | 1 | |
| 42 | 61-2925 | TUBE - accumulator balance | 1 | |
| 43 | 67-1195 | TANK - accumulator | 1 | |
| 55-529 | SCREW - tank | 4 | ||
| 55-375 | LOCKWASHER | 4 | ||
| 55-402 | FLATWASHER | 4 | ||
| 44 | 66-6024 | VIBRASORBER - suction | 1 | |
|
10-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 25 560 ₽ |
|
| PP-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 12 400 ₽ |
|
|
| 45 | 91-1987 | BRACKET - valve | 1 | |
| 55-538 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-6863 | INSERT | 2 |
