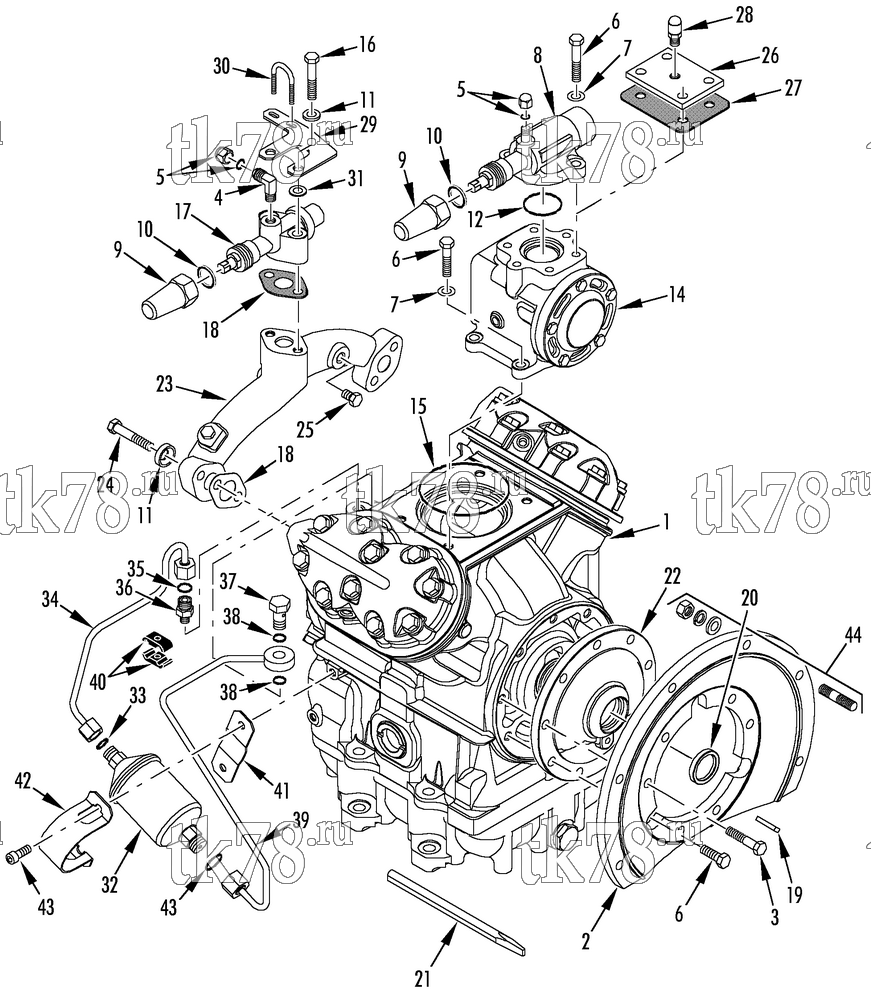

Установкa Thermo King SPECTRUM SB TCI схема COMPRESSOR GROUP - X430 – 166G7
Обновление от: 8/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 8102-900 | COMPRESSOR - X430 LS C5 (new exchange dry, see 223C5) | 1 | ||
| 8102-892 | COMPRESSOR - X430 LS C5 (dry, reman, see 223C5) | 1 | ||
| 3 | 55-2306 | SCREW - flange | 6 | |
| 30-55-2306 | Болт 3/8x1 5/8 | 680 ₽ |
|
|
| 2 | 12-752 | FLANGE - compressor (30s) | 1 | |
| 12-835 | FLANGE - compressor (50s) | 1 | ||
| 55-896 | FLATWASHER | 6 | ||
| 4 | 55-308 | ELBOW - test port | 1 | |
| 5 | 55-1983 | CAP - flare | 2 | |
| 33-768 | GASKET - flare | 2 | ||
| 6 | 55-2381 | SCREW - valve & cover | 5 | |
| 7 | 55-896 | FLATWASHER | 2 | |
| 8 | 66-5318 | VALVE - suction | 1 | |
| 66-5318 OEM | Всасывающий клапан X426/430/640 | 42 100 ₽ |
|
|
|
10-66-5318 | Всасывающий клапан X426/430/640 | 28 770 ₽ |
|
| 9 | 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | |
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 66-3015 | CAP - valve (brass, incl gasket) | 1 | ||
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 10 | 33-3007 | GASKET - plastic cap | 1 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 33-350 | GASKET - brass cap | 1 | ||
| 11 | 55-6804 | WASHER - sealing | 6 | |
| 12 | 33-230 | O-RING - valve (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 14 | 66-5933 | VALVE - throttling (23-25 psi, see 93C9) | 1 | |
| 15 | 33-1221 | O-RING - valve | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 16 | 55-6822 | SCREW - discharge valve | 2 | |
| 17 | 66-129 | VALVE - discharge (incl 9 & 10) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 18 | 33-2805 | GASKET - valve | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 19 | 55-9032 | KEY - compressor | 1 | |
|
10-55-9032 | Шпонка коленвала, X426LS/430LS | 590 ₽ |
|
| 20 | 33-3004 | SEAL - oil (large shaft, 1-3/16 dia) | 1 | |
|
10-33-3004 | Сальник коленвала, X426LS/430LS | 1 950 ₽ |
|
| PP-33-3004 | Сальник коленвала, X426LS/430LS | 1 190 ₽ |
|
|
| 21 | 204-972 | TOOL - keyway alignment | 1 | |
| 22 | 22-1028 | COVER - drive end (large shaft, 1-3/16 dia) | 1 | |
|
10-22-1028 | Крышка сальника компрессора X430LS | по запросу |
|
| 23 | 22-759 | MANIFOLD - discharge | 1 | |
| 24 | 55-6822 | SCREW - manifold | 4 | |
| 25 | 55-3364 | PLUG - pipe | 2 | |
| 26 | 91-4134 | PLATE - cover | 1 | |
| 27 | 33-3101 | GASKET - cover | 1 | |
| 30 | 55-5920 | U-BOLT | 1 | |
| 29 | 91-9135 | BRACKET - discharge tube | 1 | |
| 28 | 11-2886 | VALVE (Schrader) | 1 | |
| 55-2752 | NUT | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 31 | 55-1418 | WASHER - bracket | 2 | |
| 32 | 66-7800 | FILTER - oil | 1 | |
|
10-66-7800 | Масляный фильтр компрессора X214/426/430 | 8 280 ₽ |
|
| 33 | 33-1223 | O-RING - oil tube | 1 | |
| 34 | 61-1454 | TUBE - inlet | 1 | |
| 35 | 33-1461 | O-RING (5/16) | 1 | |
| 36 | 66-8928 | ADAPTER - oil pump to tube | 1 | |
| 37 | 66-8043 | ADAPTER - oil tube | 1 | |
| 38 | 33-1223 | O-RING - adapter | 2 | |
| 39 | 61-1453 | TUBE - outlet | 1 | |
| 40 | 55-7119 | CLAMP - tube | 2 | |
| 55-544 | SCREW - clamp | 1 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 1 | ||
| 41 | 91-8080 | CLAMP - filter | 1 | |
| 42 | 92-1893 | BRACKET - filter | 1 | |
| 55-8848 | SCREW - bracket | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 43 | 33-1015 | O-RING (3/8) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 44 | 55-1525 | STUD - engine to compressor | 8 | |
| 55-375 | LOCKWASHER | 8 | ||
| 55-402 | FLATWASHER | 8 | ||
| 55-8318 | NUT | 8 |
