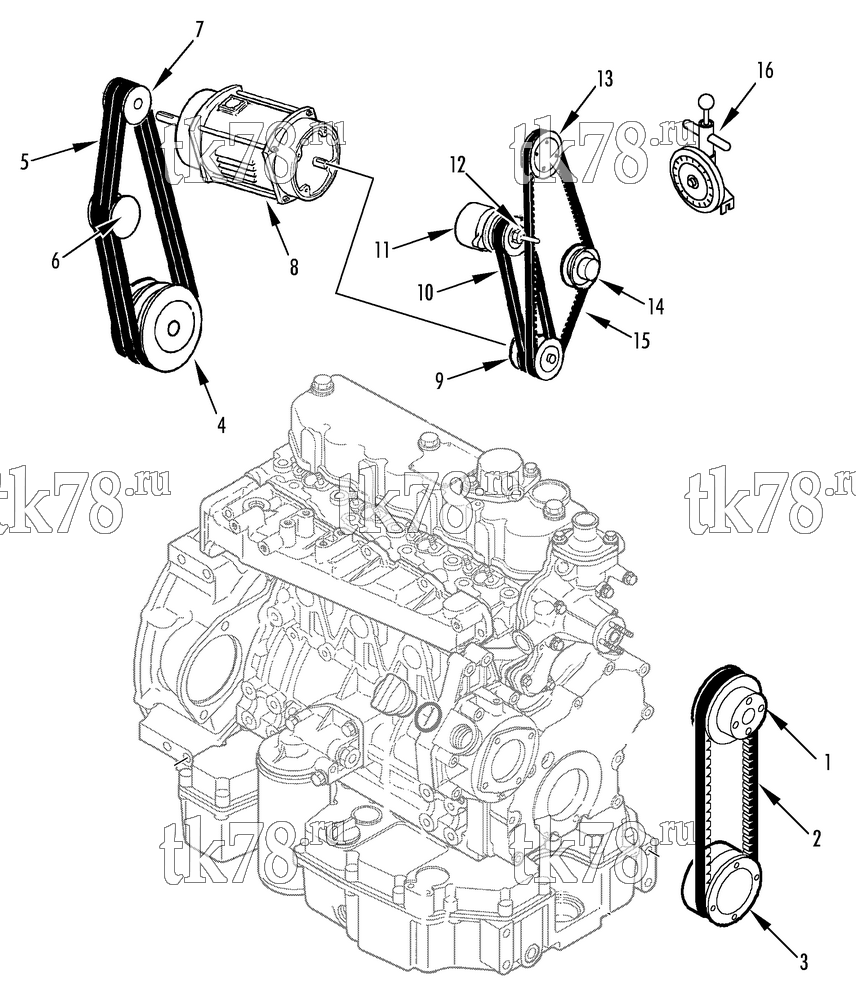

Установкa Thermo King SPECTRUM SB TCI схема PULLEYS & BELT GROUP – 156A9
Обновление от: 4/5/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-509 | PUMP - water (ELC compatible, see 149C12) | 1 | |
| 10-13-2572 | Водяной насос, Yanmar TK 482 / 486 / 486V | 37 520 ₽ |
|
|
| 10-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 26 160 ₽ |
|
|
|
PP-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 8 320 ₽ |
|
|
PP-13-509 | Водяной насос, Yanmar TK 482 / 486 / 486V | 7 900 ₽ |
|
| 2 | 78-1340 | BELT - water pump | 1 | |
|
20-78-1968 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 5 210 ₽ |
|
| 10-78-1340 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 3 460 ₽ |
|
|
|
PP-78-1340 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 890 ₽ |
|
| 3 | 70-212 | PULLEY - crankshaft | 1 | |
| 4 | 107-343 | CLUTCH (8-pin, large shaft, before 10/04) | 1 | |
|
10-107-343 | Сцепление, 8 втулок (large shaft) | 130 520 ₽ |
|
| 70-194 | KIT - clutch repair | 1 | ||
| 107-343 | CLUTCH (8-pin, large shaft, 10/04 & after) | 1 | ||
|
|
10-107-343 | Сцепление, 8 втулок (large shaft) | 130 520 ₽ |
|
| 70-194 | KIT - clutch repair | 1 | ||
| 70-208 | BUSHING - drive (set of 8) | 8 | ||
| 10-70-208 | Втулки муфты сцепления, к-т, SB/SMX/SL/SLe/SLX/SLXe | 19 600 ₽ |
|
|
| 5 | 78-785 | BELT - compressor drive (matched pair) | 1 | |
| 10-78-785 | Пара ремней электромотор - компрессор, SB-2XX/SB-III | 10 160 ₽ |
|
|
|
PP-78-785 | Пара ремней электромотор - компрессор, SB-2XX/SB-III | 4 820 ₽ |
|
| 6 | 77-1953 | PULLEY - idler (see 70D12) | 1 | |
| 7 | 77-1905 | PULLEY - motor | 1 | |
| 55-201 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 8 | 104-632 | MOTOR (see 110F3) | 1 | |
| 9 | 77-1906 | PULLEY - motor | 1 | |
| 55-201 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7482 | KEY | |||
| 10 | 78-845 | BELT - alternator | 1 | |
| 10-78-845 | Ремень генератора, SB-III/SB-2XX | 2 470 ₽ |
|
|
| PP-78-845 | Ремень генератора, SB-III/SB-2XX | 1 470 ₽ |
|
|
| 11 | 41-3372 | ALTERNATOR (105 amp, see 110F3) | 1 | |
| 12 | 77-2166 | PULLEY - alternator | 1 | |
| 13 | 77-1842 | PULLEY - fan | 1 | |
| 14 | 77-1953 | PULLEY - idler (see 70D12) | 1 | |
| 15 | 78-844 | BELT - fan | 1 | |
| 10-78-844 | Ремень электромотор - вал вентиляторов, SB-III/SB-2XX | 6 660 ₽ |
|
|
| PP-78-844 | Ремень электромотор - вал вентиляторов, SB-III/SB-2XX | 2 960 ₽ |
|
|
| 16 | 204-427 | GAUGE - belt tension | 1 |
