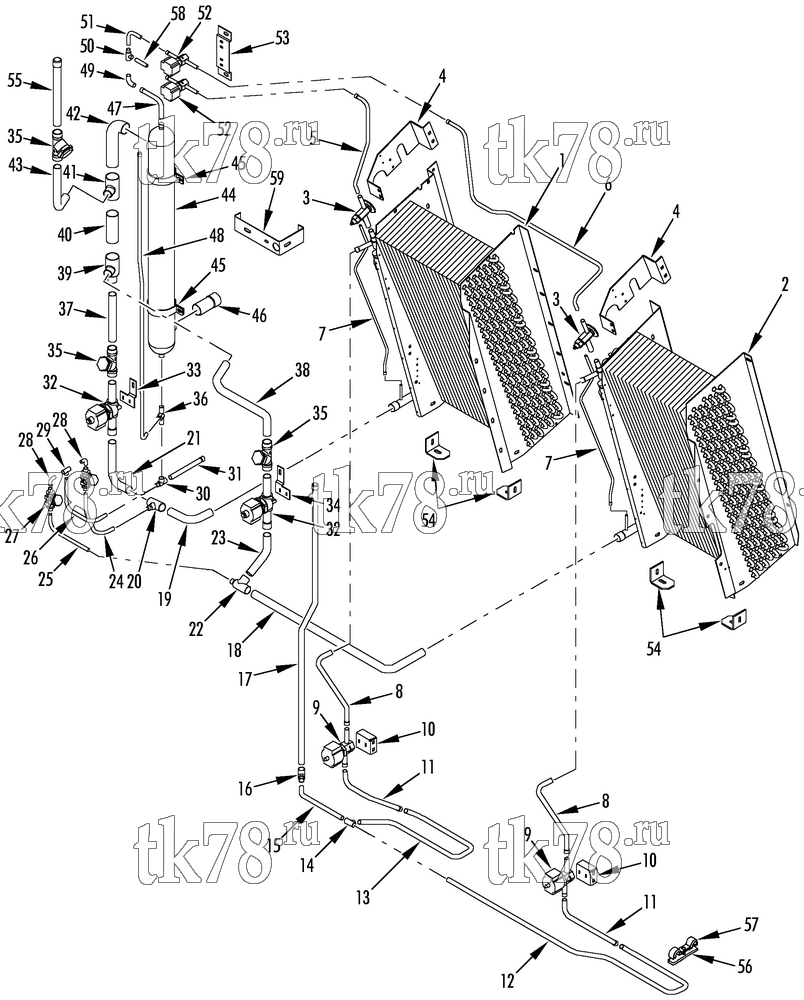

Установкa Thermo King SPECTRUM DE 30 Tier 1 Plastic Skin схема REFRIGERATION EVAPORATOR (DE) – 108G9
Обновление от: 4/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1114 | COIL - evaporator (roadside) | 1 | |
| 2 | 67-1113 | COIL - evaporator (curbside) | 1 | |
| 3 | 66-6715 | VALVE - expansion | 2 | |
| 66-6047 | SCREEN - inlet | 1 | ||
| 66-5336 | ELEMENT - power | 1 | ||
| 66-6380 | SCREEN - filter (inlet) | 2 | ||
| 66-4453 | SCREEN - filter (outlet) | 2 | ||
| 55-5211 | U-BOLT - valve | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 99-8090 | CLAMP - valve | 2 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 99-8209 | NUTSTRIP | 2 | ||
| 4 | 91-4465 | BRACKET - expansion valve | 2 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 5 | 66-6738 | TUBE - solenoid to valve (roadside) | 1 | |
| 6 | 66-6719 | TUBE - solenoid to valve (curbside) | 1 | |
| 7 | 61-1234 | TUBE - equalizer | 1 | |
| 8 | 66-6755 | TUBE - solenoid to expansion valve | 2 | |
| 9 | 61-3401 | VALVE - defrost | 2 | |
|
10-61-9093 | Соленоид горячего газа, MD-II/RD-II/SB-III/SMX/UTS / T/UT-Series | 19 380 ₽ |
|
| 44-3931 | COIL (12VDC) | 1 | ||
| 60-294 | KIT - repair | 1 | ||
| 55-3029 | SCREW - valve | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 10 | 91-4464 | BRACKET - valve | 2 | |
| 11 | 66-6739 | TUBE - defrost to valve | 2 | |
| 12 | 66-6740 | TUBE - defrost (curbside) | 1 | |
| 13 | 66-6741 | TUBE - defrost (roadside) | 1 | |
| 14 | 55-2296 | TEE | 1 | |
| 15 | 66-6720 | TUBE - defrost (tee to tee) | 1 | |
| 16 | 55-1252 | TEE - defrost (remote) | 1 | |
| 17 | 66-6742 | TUBE - hot gas line to remote evaporator | 1 | |
| 18 | 66-6721 | TUBE - suction (curbside) | 1 | |
| 19 | 66-6743 | TUBE - suction (roadside) | 1 | |
| 20 | 55-6712 | TEE | 1 | |
| 21 | 66-6744 | TUBE - tee to valve | 1 | |
| 22 | 55-7503 | TEE | 1 | |
| 23 | 66-6745 | TUBE - suction (tee to solenoid) | 1 | |
| 24 | 66-6746 | TUBE - tee to check valve | 1 | |
| 25 | 66-6747 | TUBE - tee to check valve | 1 | |
| 26 | 66-6756 | TUBE - tee to tee | 1 | |
| 27 | 66-3654 | VALVE - check (see 106C14) | 2 | |
| 28 | 55-3249 | ELBOW | 2 | |
| 29 | 55-3251 | TEE | 1 | |
| 30 | 66-622 | TEE | 1 | |
| 31 | 66-6748 | TUBE - bulkhead to tee | 1 | |
| 32 | 66-6127 | VALVE - suction (see 117A1) | 2 | |
| 33 | 91-4461 | BRACKET - solenoid (roadside) | 1 | |
| 34 | 91-4462 | BRACKET - solenoid (curbside) | 1 | |
| 35 | 66-6179 | VALVE - check (see 106C14) | 3 | |
| 36 | 66-6749 | TUBE - tee to exchanger | 1 | |
| 37 | 66-6750 | TUBE - check valve to tee (roadside) | 1 | |
| 38 | 66-6751 | TUBE - check valve to tee (curbside) | 1 | |
| 39 | 55-7211 | TEE | 1 | |
| 40 | 66-6752 | TUBE - tee to tee | 1 | |
| 41 | 66-3945 | TEE | 1 | |
| 42 | 66-6753 | TUBE - tee to exchanger | 1 | |
| 43 | 66-7950 | TUBE - suction (remote) | 1 | |
| 44 | 67-1579 | HEAT EXCHANGER | 1 | |
| 45 | 91-2689 | BRACKET - heat exchanger | 2 | |
| 99-2221 | STRIP (neoprene) | A/R | ||
| 46 | 66-5830 | TUBE - exchanger to bulkhead | 1 | |
| 47 | 66-7949 | TUBE - exchanger to tee | 1 | |
| 48 | 66-6716 | TUBE - liquid (remote) | 1 | |
| 49 | 55-3248 | ELBOW | 1 | |
| 50 | 55-6218 | TEE | 1 | |
| 51 | 66-6718 | TUBE - tee to valve | 1 | |
| 52 | 66-6384 | VALVE - liquid (see 116G10) | 2 | |
| 10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
|
| 53 | 91-4460 | BRACKET - solenoid | 1 | |
| 54 | 99-8089 | ANGLE - evaporator coil | 4 | |
| 55 | 66-7951 | TUBE - suction | 1 | |
| 56 | 99-8091 | BRACKET - defrost tube | 1 | |
| 57 | 99-8001 | CLAMP - defrost tube | 1 | |
| 55-4954 | NUT | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 58 | 66-8064 | TUBE - valve to tee | 1 | |
| 59 | 91-7675 | BRACKET - tube | 1 | |
| 55-1587 | SCREW - bracket (1/4-20 x .75 inches) | 1 | ||
| 55-3462 | SCREW - bracket (1/4-20 x 2.0 inches) | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | FLATWASHER | 3 |
