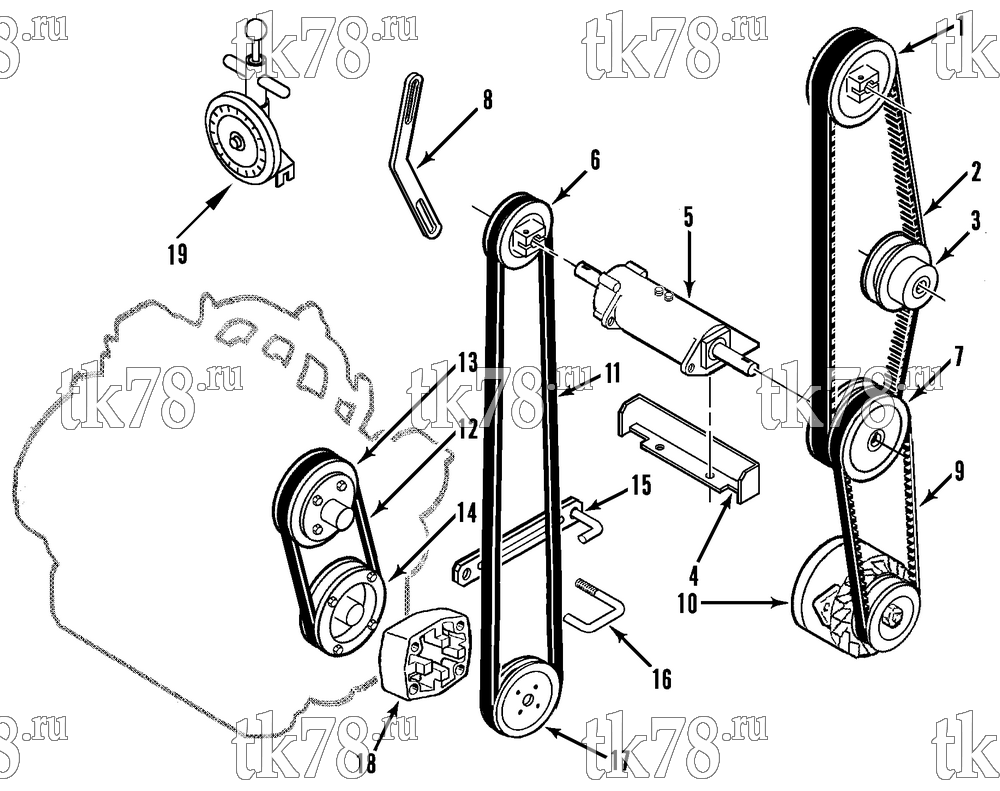

Установкa Thermo King SMX SR схема BELT GROUP (30s) – 114E2
Обновление от: 11/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-2132 | PULLEY - fanshaft | 1 | |
| 55-6479 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-457 | KEY | 1 | ||
| 2 | 78-983 | BELT - idler to fanshaft | 1 | |
|
10-78-983 | Ремень вентиляторов, SL-400/SMX после 93г. | 4 880 ₽ |
|
| PP-78-983 | Ремень вентиляторов, SL-400/SMX после 93г. | 3 590 ₽ |
|
|
| 3 | 77-2043 | PULLEY - idler (see 100B11) | 1 | |
| 91-4833 | PLATE - idler | 1 | ||
| 55-7571 | SCREW - plate | 1 | ||
| 55-5914 | FLATWASHER | 1 | ||
| 55-7571 | WASHER - special | 1 | ||
| 55-7570 | WASHER - special | 1 | ||
| 55-7003 | NUT | 1 | ||
| 4 | 91-4524 | ANGLE - jackshaft | 1 | |
| 91-4831 | ANGLE - jackshaft | 1 | ||
| 55-4723 | SCREW - angle | 2 | ||
| 55-5006 | LOCKWASHER | 2 | ||
| 55-2769 | FLATWASHER | 2 | ||
| 91-4832 | NUTPLATE | 2 | ||
| 5 | 78-830 | JACKSHAFT (see 113E13) | 1 | |
| 55-4612 | SCREW - jackshaft | 2 | ||
| 55-7069 | FLATWASHER | 4 | ||
| 55-2292 | WASHER - special | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7006 | NUT | 2 | ||
| 6 | 77-2038 | PULLEY - motor to jackshaft | 1 | |
| 7 | 77-2039 | PULLEY - jackshaft to fanshaft | 1 | |
| 55-457 | KEY | 2 | ||
| 55-6479 | SCREW - pulley | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 8 | 91-4834 | ARM - adjusting | 1 | |
| 55-6215 | SCREW - arm | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 55-2769 | WASHER - special | 2 | ||
| 9 | 78-679 | BELT - alternator | 1 | |
| 10-78-679 | Ремень генератора и водяной помпы, SL/SMX 30 / MD-II/KD-II | 1 880 ₽ |
|
|
|
PP-78-679 | Ремень генератора и водяной помпы, SL/SMX 30 / MD-II/KD-II | 1 120 ₽ |
|
| 10 | 45-2254 | ALTERNATOR (37 amp, see 208F4) | 1 | |
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-8461 | ALTERNATOR (37 amp, Standard Life Plus) | 1 | ||
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 845-2254 | ALTERNATOR (37 amp, remanufactured) | 1 | ||
| 11 | 78-890 | BELT - engine to jackshaft | 1 | |
|
10-78-890 | Ремень двигатель - промвал, SMX 30 | 6 770 ₽ |
|
|
PP-78-890 | Ремень двигатель - промвал, SMX 30 | 2 740 ₽ |
|
| 12 | 78-668 | BELT - water pump | 1 | |
| 10-78-668 | Ремень водяной помпы, SB-III/SMX | 3 680 ₽ |
|
|
| PP-78-668 | Ремень водяной помпы, SB-III/SMX | 1 040 ₽ |
|
|
| 13 | 77-1595 | PULLEY - water pump (stationary) | 1 | |
| 77-1187 | PULLEY - water pump (sliding) | 1 | ||
| 77-1285 | SPACER - pulley (0.035 thk) | 5 | ||
| 77-2164 | SPACER - pulley (0.015 thk) | 1 | ||
| 55-544 | SCREW - pulley | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 14 | 77-1369 | PULLEY - crankshaft | 1 | |
| 77-1664 | SPACER - pulley | 1 | ||
| 15 | 91-4835 | GUIDE - belt | 1 | |
| 55-6215 | SCREW - guide | 2 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 55-2769 | WASHER - special | 2 | ||
| 55-4608 | LOCKWASHER | 2 | ||
| 55-7006 | NUT | 2 | ||
| 16 | 91-4526 | ROD - belt guide | 2 | |
| 55-7006 | NUT - rod | 2 | ||
| 17 | 77-2388 | PULLEY - crankshaft | 1 | |
| 18 | 77-1709 | SPACER - pulley | 1 | |
| 55-5575 | SCREW - pulley | 4 | ||
| 55-5411 | LOCKWASHER | 4 | ||
| 19 | 204-427 | GAUGE - belt tension | 1 |
