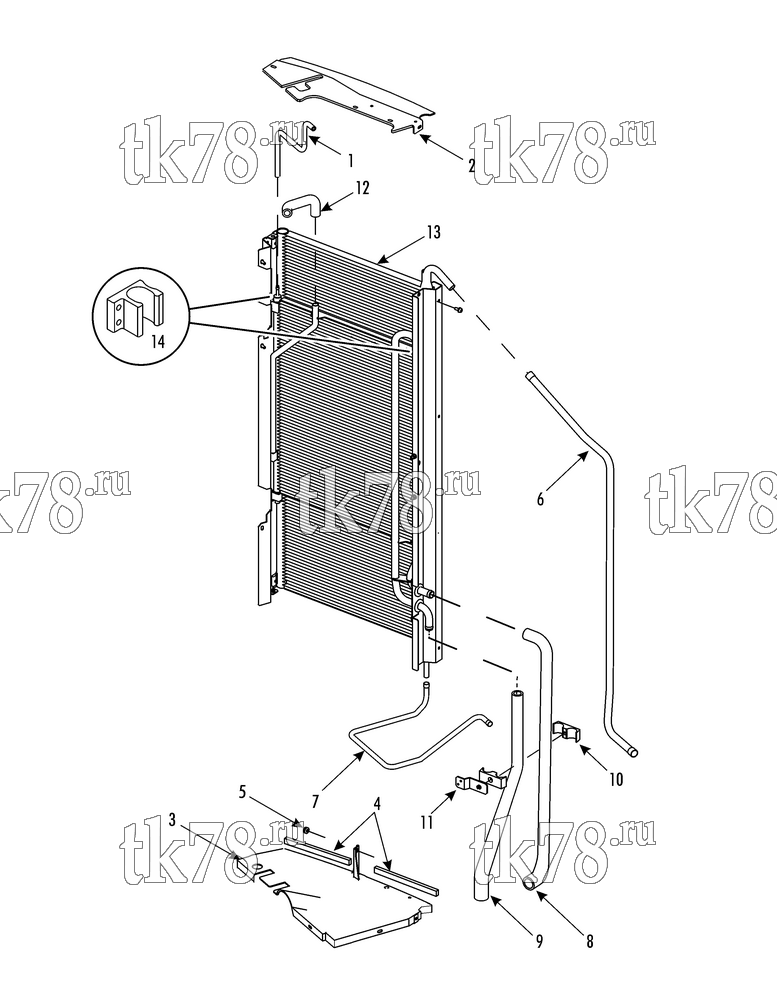

Установкa Thermo King SLXe WHISPER схема MICRO-CHANNEL CONDENSER COIL – 259E6
Обновление от: 9/2/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 60-331 | KIT - micro-channel condenser coil (retro-fit kit, order condenser/radiator coil separately) | 1 | ||
| 1 | 13-1074 | HOSE - over flow | 1 | |
| 2 | 92-8923 | BRACKET - top | 1 | |
| 3 | 92-8922 | BRACKET - bottom | 1 | |
| 4 | 33-4625 | BLOCK - foam | 2 | |
| 5 | 33-314 | GROMMET | 1 | |
| 6 | 61-5104 | TUBE - inlet | 1 | |
| 7 | 61-5103 | TUBE - outlet | 1 | |
| 8 | 13-1077 | HOSE - coolant (inlet, see 242C0) | 1 | |
| 9 | 13-1076 | HOSE - coolant (outlet, see 242C0) | 1 | |
| 10 | 51-2195 | CLAMP - hose | 2 | |
| 51-124 | SCREW - clamp | 1 | ||
| 55-4742 | WASHER - special | 1 | ||
| 11 | 92-8287 | BRACKET - clamp | 1 | |
| 55-3628 | RIVET - bracket | 3 | ||
| 12 | 13-1075 | HOSE - radiator to expansion tank (see 242C0) | 1 | |
| 13 | 67-2481 | COIL - condenser/radiator (not supplied with Kit) | 1 | |
| 67-2474 | COIL - condenser (micro channel coil) | 1 | ||
|
10-60-575 | Конденсатор, SLX/SLXe | 73 540 ₽ |
|
| PP-60-575 | Конденсатор, SLX/SLXe | 44 330 ₽ |
|
|
| 67-2475 | COIL - radiator (see 242C0) | 1 | ||
|
10-60-618 | Радиатор, SLX/SLXe | 81 650 ₽ |
|
| 14 | 93-662 | BRACKET - radiator | 2 | |
| 51-718 | SCREW - coil | 6 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7008 | NUT | 4 |
