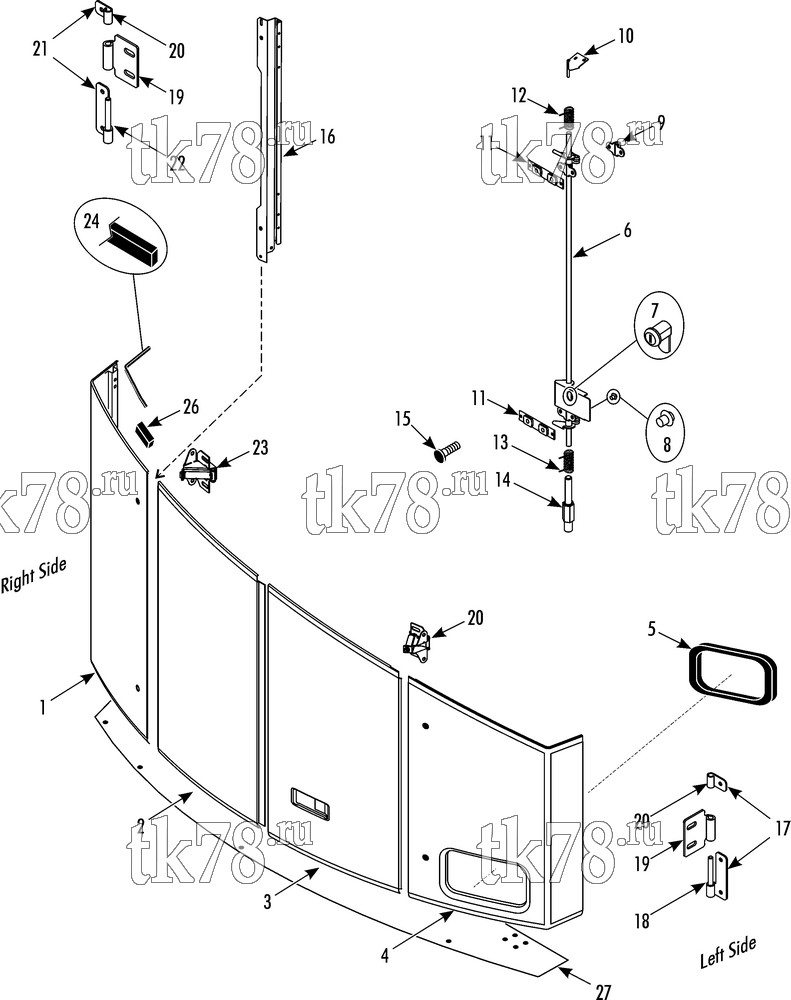

Установкa Thermo King SLXe WHISPER схема DOORS, BOTTOM SECTION (Whisper units) – 247A4
Обновление от: 4/18/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8544 | PANEL - curbside | 1 | |
| 2 | 98-8542 | DOOR - engine (curbside) | 1 | |
| 33-5134 | QUILT - panel | 1 | ||
| 3 | 98-8543 | DOOR - engine (roadside) | 1 | |
| 33-5135 | QUILT - panel | 1 | ||
| 91-5057 | BUMPER - door | 1 | ||
| 4 | 98-8545 | DOOR - control box | 1 | |
| 5 | 33-4446 | SEAL - HMI | 1 | |
| 6 | 92-6522 | LATCH - door | 1 | |
| 7 | 92-1164 | LOCK - door | 1 | |
| 8 | 33-1435 | BUMPER - latch handle | 1 | |
| 9 | 91-2704 | RETAINER - door latch | 2 | |
| 51-1689 | SCREW - latch | 4 | ||
| 10 | 92-6524 | STRIKE - door (upper) | 1 | |
| 11 | 92-6525 | NUTSTRIP - latch | 2 | |
| 12 | 99-9973 | SPRING - latch (cw top) | 1 | |
| 13 | 99-9974 | SPRING - latch (ccw bottom) | 1 | |
| 14 | 92-6518 | STRIKE - door (lower) | 1 | |
| 55-7344 | NUT | 1 | ||
| 15 | 92-6518 | BUMPER - door | 1 | |
| 16 | 92-7203 | BRACKET - door | 1 | |
| 92-7204 | ANGLE - bracket | 1 | ||
| 17 | 90-451 | KIT - hinge (left side, includes 18 & 20) | 2 | |
| 18 | 92-9408 | HINGE - left side | 2 | |
| 19 | 92-6520 | HINGE | 4 | |
| 20 | 93-101 | RETAINER - hinge | 4 | |
| 21 | 90-452 | KIT - hinge (right side, includes 20 & 21) | 2 | |
| 22 | 92-9409 | HINGE - right side | 2 | |
| 23 | 92-6877 | HINGE - front doors | 4 | |
| 51-718 | SCREW - hinge (M6) | 8 | ||
| 51-1828 | SCREW - hinge (M5) | 8 | ||
| 24 | 33-4445 | STRIP - foam (1 meter lg, cut to length) | A/R | |
| 26 | 33-4447 | SEAL - door | 1 | |
| 27 | 98-8553 | PANEL - bottom | 1 | |
| 33-4696 | QUILT - panel | 1 | ||
| 55-8464 | SCREW - panel | 26 | ||
| 55-7170 | LOCKWASHER | 26 | ||
| 55-7075 | FLATWASHER | 26 |
