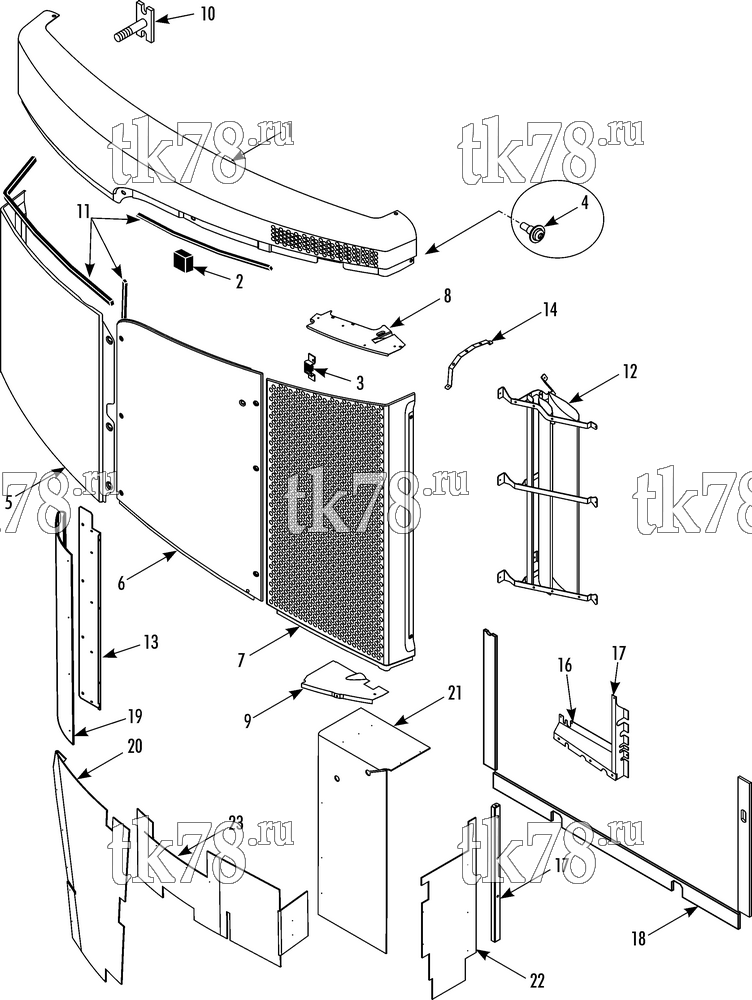

Установкa Thermo King SLXe WHISPER схема DOORS AND PANELS, UPPER SECTION (Whisper units) – 247A3
Обновление от: 8/27/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7914 | COVER - top | 1 | |
| 2 | 33-3338 | SEAL - door | 1 | |
| 3 | 92-7557 | BRACKET - bulkhead | 2 | |
| 4 | 51-1746 | SCREW - cover | 7 | |
| 5 | 98-9038 | PANEL - upper | 1 | |
| 6 | 98-9039 | PANEL - belts (incl items 2 & 3, qty 3) | 1 | |
| 7 | 98-9040 | GRILLE - condenser | 1 | |
| 51-718 | SCREW - panel & grille (M6 X 16) | A/R | ||
| 55-9761 | SCREW - panel & grille (M6 X 25) | A/R | ||
| 8 | 92-8285 | PANEL - blockoff (top) | 1 | |
| 92-8923 | PANEL - blockoff (top, micro channel coil) | 1 | ||
| 9 | 92-8284 | PANEL - blockoff (bottom) | 1 | |
| 92-8922 | PANEL - blockoff (bottom, micro channel coil) | 1 | ||
| 55-7067 | SCREW - panel | 4 | ||
| 10 | 99-214 | BOLT - unit | 8 | |
| 55-5234 | WASHER | 8 | ||
| 55-3686 | NUT | 8 | ||
| 11 | 33-4445 | STRIP - foam (1 meter lg, cut to length) | A/R | |
| 12 | 98-8546 | VANE - acoustic (SLX Whisper only) | 1 | |
| 51-1964 | SCREW - vane, support, blockoff | 23 | ||
| 13 | 92-8528 | BLOCKOFF - curbside | 1 | |
| 14 | 92-8530 | SUPPORT - top member & curtain (SLX Whisper only) | 1 | |
| 15 | 92-8537 | BLOCKOFF - vertical | 1 | |
| 16 | 92-8536 | BLOCKOFF - horizontal | 1 | |
| 17 | 92-8529 | BRACKET - control box curtain | 1 | |
| 18 | 92-8531 | GASKET - sill | 1 | |
| 19 | 92-8535 | CURTAIN - noise (curbside, upper) | 1 | |
| 20 | 92-8532 | CURTAIN - noise (curbside, lower) | 1 | |
| 21 | 92-8534 | CURTAIN - noise (fans) | 1 | |
| 22 | 92-8533 | CURTAIN - noise (control box) | 1 | |
| 23 | 92-8669 | CURTAIN - noise (engine) | 1 |
