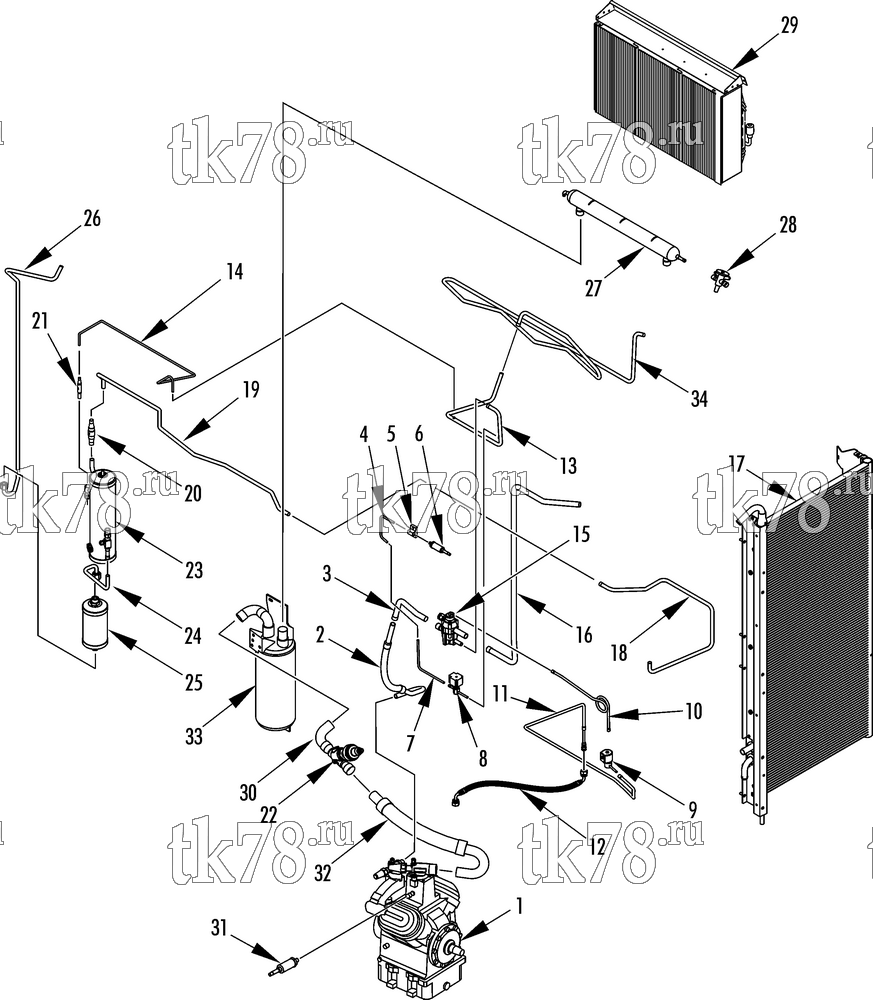

Установкa Thermo King SLXe 400 схема REFRIGERATION COMPONENTS w/ ETV (1/10 & after micro channel cond coil) – 244C8
Обновление от: 8/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-900 | COMPRESSOR - X430 LS C5 (new exchange dry, see 256D7) | 1 | |
| 8102-972 | COMPRESSOR - X430 LS C5 (dry reman, see 256D7) | 1 | ||
| 2 | 61-4127 | VIBRASORBER - discharge | 1 | |
| 61-4127 OEM | Вибросорбер нагнетания SLX | 48 360 ₽ |
|
|
| 3 | 61-4133 | TUBE - vibrasorber to 3-way valve | 1 | |
| 4 | 61-4138 | TUBE - transducer | 1 | |
| 5 | 66-9246 | FITTING - transducer | 1 | |
| 6 | 41-7962 | TRANSDUCER - discharge | 1 | |
|
42-1312 OEM | Трансдюсер, SL-400/SL-400e/SLX/SLXe/T-Series | 29 680 ₽ |
|
|
10-42-1312 | Трансдюсер, SL-400/SL-400e/SLX/SLXe/T-Series | 10 060 ₽ |
|
| 7 | 61-4137 | TUBE - inlet (hot gas valve) | 1 | |
| 8 | 61-4132 | SOLENOID - hot gas | 1 | |
| 41-3681 | COIL - valve | 1 | ||
| 41-3681 OEM | Катушка соленоида | 24 630 ₽ |
|
|
|
10-41-3681 | Катушка соленоида 12V | 12 220 ₽ |
|
| 9 | 66-8560 | SOLENOID - pilot | 1 | |
| 66-8560 OEM | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 38 690 ₽ |
|
|
|
10-66-8560 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 31 100 ₽ |
|
|
PP-61-8939 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 8 380 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 10 | 61-5265 | TUBE - 3 way to solenoid | 1 | |
| 11 | 61-4136 | TUBE - solenoid to compressor | 1 | |
| 12 | 61-1829 | HOSE | 1 | |
| 13 | 61-4134 | TUBE - defrost | 1 | |
| 14 | 61-6281 | TUBE - defrost to receiver tank | 1 | |
| 15 | 61-5210 | VALVE - 3-way (see 226C6) | 1 | |
| 16 | 61-5104 | TUBE - 3-way to condenser coil | 1 | |
| 17 | 67-2481 | COIL - condenser/radiator (micro channel coil) | 1 | |
| 67-2474 | COIL - condenser (micro channel coil) | 1 | ||
|
10-60-575 | Конденсатор, SLX/SLXe | 73 540 ₽ |
|
| PP-60-575 | Конденсатор, SLX/SLXe | 44 330 ₽ |
|
|
| 18 | 61-5103 | TUBE - condenser to joint | 1 | |
| 19 | 61-4232 | TUBE - joint to check valve | 1 | |
| 20 | 61-4268 | VALVE - check | 1 | |
| 21 | 61-4269 | VALVE - check | 1 | |
| 22 | 61-4253 | VALVE - throttling (electronic) | 1 | |
|
61-8820 OEM | Клапан ETV, SLX/SLXe/SLXi | 86 140 ₽ |
|
| 40-997 | KIT - valve repair | 1 | ||
| 23 | 67-2336 | TANK - receiver | 1 | |
|
67-2336 OEM | Бак фреона, SLX/SLXe | 55 650 ₽ |
|
| 10-67-2336 | Бак фреона, SLX/SLXe | 22 070 ₽ |
|
|
| 33-2419 | O-RING | 1 | ||
| 66-9918 | INDICATOR - liquid | 1 | ||
| 24 | 61-6280 | TUBE - receiver to dehydrator | 1 | |
| 25 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 26 | 61-4142 | TUBE - dehydrator to joint | 1 | |
| 27 | 67-2698 | HEAT EXCHANGER | 1 | |
| 28 | 61-3679 | VALVE - expansion (SLXe 300/400) | 1 | |
| 61-3677 | VALVE - expansion (SLXe Whisper) | 1 | ||
| 66-6380 | FILTER - inlet | 1 | ||
| 66-4441 | FILTER - outlet | 1 | ||
| 29 | 67-2786 | COIL - evaporator | 1 | |
| 30 | 66-602 | ELBOW | 1 | |
| 31 | 41-7960 | TRANSDUCER - suction | 1 | |
| 10-42-2284 | Трансдюсер, SB/SL-400/SL-400e/SLX/SLXe | 7 480 ₽ |
|
|
| 32 | 61-4126 | VIBRASORBER - suction | 1 | |
| 33 | 67-2335 | TANK - accumulator | 1 | |
| 34 | 67-2337 | TUBE - serpentine | 1 |
