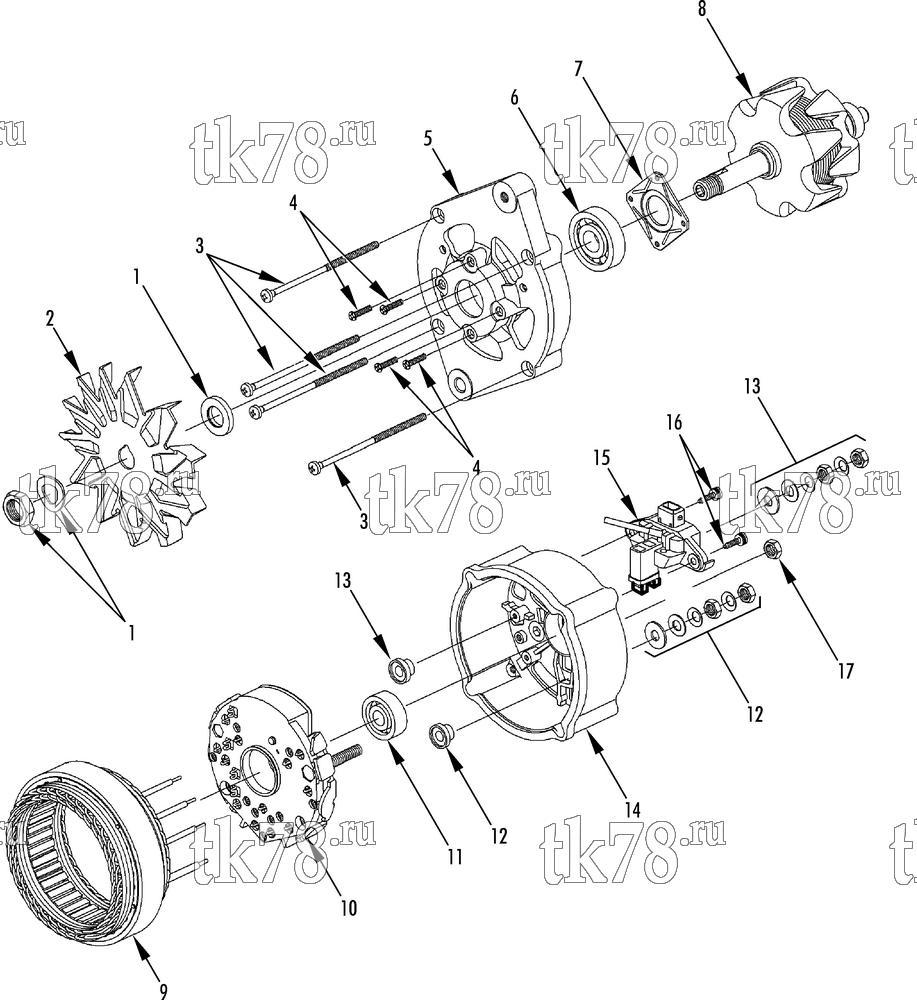

Установкa Thermo King SLXe 400 схема ALTERNATOR ASSEMBLY (120 AMP) – 241C1
Обновление от: 9/19/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-2258 | ALTERNATOR (Extended life, w/ CW fan) | 1 | ||
|
10-41-6782 | Генератор 120A, SB-XXX/SB-III/SMX/SMX-II/SL/SLe | 14 230 ₽ |
|
| 41-8465 | ALTERNATOR (Standard life, w/ CW fan) | 1 | ||
|
|
10-41-6782 | Генератор 120A, SB-XXX/SB-III/SMX/SMX-II/SL/SLe | 14 230 ₽ |
|
| 845-2258 | ALTERNATOR (Remanufactured, w/ CW fan) | 1 | ||
| 1 | 51-1255 | NUT | 1 | |
| 51-1254 | WASHER | 1 | ||
| 2 | 41-6867 | FAN (CW) | 1 | |
| 3 | 51-1272 | SCREW - housing | 4 | |
| 4 | 51-1311 | SCREW - flange | 4 | |
| 5 | 41-6886 | HOUSING - front | 1 | |
| 6 | 77-2852 | BEARING - fan end (front) | 1 | |
| 7 | 41-6869 | FLANGE - bearing | 1 | |
| 8 | 41-6877 | ROTOR | 1 | |
| 9 | 41-6874 | STATOR | 1 | |
| 10 | 41-9899 | RECTIFIER | 1 | |
| 11 | 77-2853 | BEARING - rear | 1 | |
| 77-2851 | SPACER - bearing | 1 | ||
| 12 | 51-947 | NUT | 1 | |
| 51-1261 | INSULATOR | 1 | ||
| 51-1265 | FLATWASHER | 1 | ||
| 51-1263 | LOCKWASHER | 1 | ||
| 51-1264 | NUT | 1 | ||
| 51-1266 | NUT | 1 | ||
| 13 | 51-1257 | NUT | 1 | |
| 55-1260 | NUT | 1 | ||
| 55-1256 | LOCKWASHER | 1 | ||
| 14 | 41-6866 | HOUSING - rear | 1 | |
| 15 | 41-8851 | REGULATOR & BRUSH | 1 | |
|
10-42-3479 | Реле-регулятор, SL/SLe/SLX/SLXe / T/TS-Series | 3 240 ₽ |
|
| 16 | 51-1312 | SCREW - brush | 2 | |
| 17 | 51-1260 | NUT | 2 | |
| 51-1259 | LOCKWASHER | 2 |
