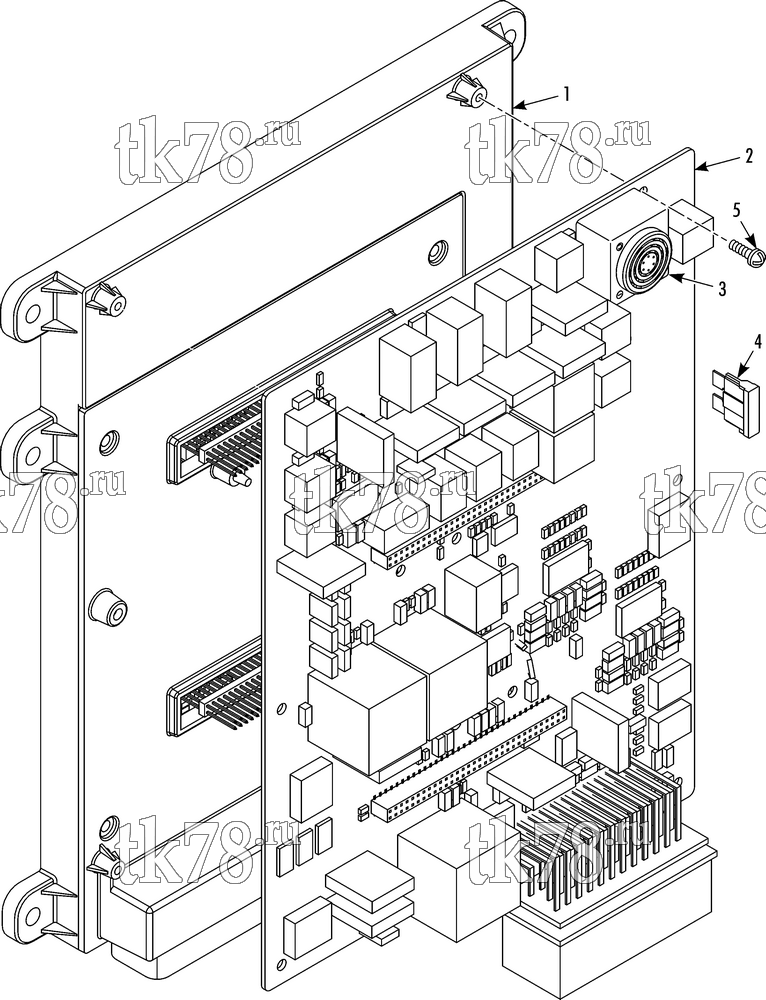

Установкa Thermo King SLX 200 Complete схема CONTROLLER INTERFACE ASSEMBLY – 225D8
Обновление от: 8/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2302 | BOARD - controller (Version T4) | 1 | |
| 845-2302 | BOARD - controller (reman, Version T4) | 1 | ||
| 2 | 45-2276 | BOARD - interface (SLX) | 1 | |
| 45-2275 | BOARD - interface (Version T4, SB) | 1 | ||
| 845-2275 | BOARD - interface (reman, Version T4, SB) | 1 | ||
| 3 | 41-8291 | BUZZER - warning | 1 | |
| 4 | 41-1932 | FUSE (1 amp) | 1 | |
| 41-2543 | FUSE (2 amp) | 4 | ||
| 44-9524 | FUSE (3 amp) | 3 | ||
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 44-9359 | FUSE (7.5 amp) | 1 | ||
| 44-9758 | FUSE (10 amp) | 1 | ||
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp) | 2 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 41-226 | FUSE (40 amp) | 1 | ||
|
10-41-226 | Предохранитель 40 ампер 10 шт | 1 860 ₽ |
|
| 41-3666 | FUSE (60 amp) | 1 | ||
| 5 | 51-1767 | SCREW - interface board | 6 |
