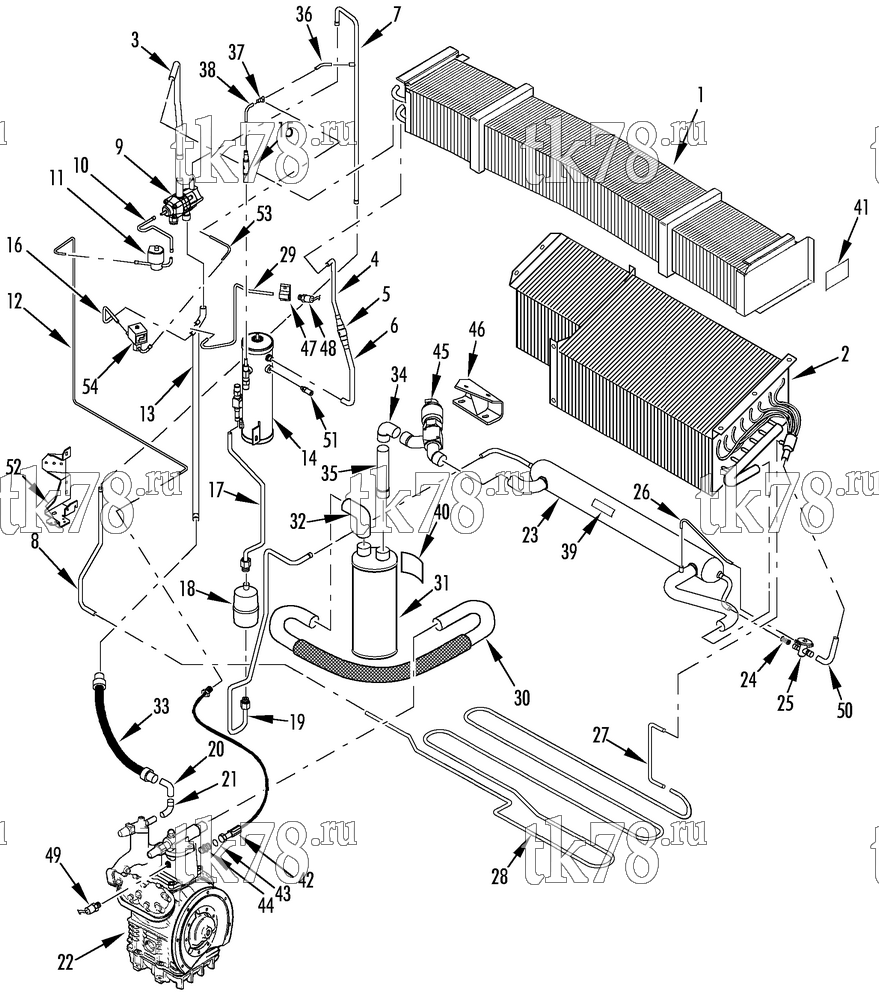

Установкa Thermo King SL-400 схема REFRIGERATION COMPONENTS – 152B1
Обновление от: 11/12/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1214 | COIL - condenser (see 172F6) | 1 | |
| 2 | 67-1975 | COIL - evaporator | 1 | |
| 55-7614 | SCREW - coil (M8) | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-9977 | WASHER - special | 4 | ||
| 91-4837 | NUTSTRIP (7.30 BHC) | 1 | ||
| 91-4838 | NUTSTRIP (5.06 BHC) | 1 | ||
| 55-2270 | RIVET - nutstrip | 4 | ||
| 55-7035 | SCREW - coil (M6) | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-6991 | INSERT - threaded | 2 | ||
| 3 | 66-5971 | TUBE - 3-way to condenser | 1 | |
| 4 | 61-790 | TUBE - coil to 3-way valve | 1 | |
| 5 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 6 | 61-1049 | TUBE - check valve to receiver | 1 | |
| 7 | 66-5969 | TUBE - 3-way to defrost | 1 | |
| 8 | 66-5970 | TUBE - defrost to bulkhead | 1 | |
| 66-5752 | FITTING | 1 | ||
| 33-1213 | GROMMET - tube | 1 | ||
| 9 | 66-4975 | VALVE - 3-way (see 100F5) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 10 | 61-788 | TUBE - pilot solenoid | 1 | |
| 11 | 66-8560 | VALVE - pilot solenoid | 1 | |
| 66-8560 OEM | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 38 690 ₽ |
|
|
|
10-66-8560 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 31 100 ₽ |
|
|
PP-61-8939 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 8 380 ₽ |
|
| 41-1521 | COIL (12V) | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-8786 | NUT | 1 | ||
| 12 | 66-9514 | TUBE - compressor to solenoid | 1 | |
| 13 | 61-834 | TUBE - vibrasorber to 3-way | 1 | |
| 66-5752 | FITTING | 2 | ||
| 14 | 67-1542 | TANK - receiver (single sight glass, see 155D2) | 1 | |
|
67-1542 OEM | Бак фреона, SL/SLe/SMX/SMX-II | 44 040 ₽ |
|
|
10-67-1542 | Бак фреона, SL/SLe/SMX/SMX-II | 9 470 ₽ |
|
| 67-1130 | TANK - receiver (two sight glasses) | 1 | ||
|
|
67-1542 OEM | Бак фреона, SL/SLe/SMX/SMX-II | 44 040 ₽ |
|
|
|
10-67-1542 | Бак фреона, SL/SLe/SMX/SMX-II | 9 470 ₽ |
|
| 15 | 66-9369 | VALVE - check | 1 | |
| 16 | 61-838 | TUBE - to solenoid | 1 | |
| 17 | 66-7583 | TUBE - receiver to dehydrator | 1 | |
| 18 | 61-600 | DEHYDRATOR (see 146G11) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 33-566 | O-RING (1/2 in) | 1 | ||
| 33-2115 | O-RING (5/8 id) | 1 | ||
| 19 | 66-7852 | TUBE - dehydrator outlet | 1 | |
| 20 | 55-2080 | ELBOW - elbow to vibrasorber | 1 | |
| 21 | 66-634 | ELBOW - valve to elbow | 1 | |
| 22 | NSS | COMPRESSOR - X430 (see 152D13) | 1 | |
| 23 | 67-1824 | HEAT EXCHANGER | 1 | |
| 67-2491 | HEAT EXCHANGER (first tube out) | 1 | ||
| 24 | 66-6380 | SCREEN - filter (inlet) | 1 | |
| 66-4453 | SCREEN - filter (outlet) | 1 | ||
| 25 | 61-3678 | VALVE - expansion | 1 | |
| 203-428 | TAPE - bulb (expansion valve) | 1 | ||
| 26 | 61-1394 | TUBE - equalizer | 1 | |
| 27 | 66-5961 | TUBE - defrost to valve | 1 | |
| 28 | 61-1392 | TUBE - defrost | 1 | |
| 29 | 61-837 | TUBE - transducer | 1 | |
| 30 | 66-5964 | VIBRASORBER - suction | 1 | |
|
10-66-5964 | Вибросорбер всасывания, SMX/SL/SLe | 47 990 ₽ |
|
|
PP-66-5964 | Вибросорбер всасывания, SMX/SL/SLe | 14 340 ₽ |
|
| 31 | 67-1746 | TANK - accumulator | 1 | |
| 32 | 55-908 | ELBOW | 1 | |
| 55-5579 | SCREW - accumulator | 4 | ||
| 55-7072 | FLATWASHER | 6 | ||
| 55-5411 | LOCKWASHER | 2 | ||
| 55-7005 | NUT | 2 | ||
| 33 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 34 | 55-908 | ELBOW | 1 | |
| 35 | 66-9518 | TUBE - elbow to tank | 1 | |
| 36 | 61-1245 | TUBE - check valve to tee | 1 | |
| 37 | 66-4346 | TEE (1/4 x 1/4 x 1/4) | 1 | |
| 38 | 61-1246 | TUBE - tee to defrost | 1 | |
| 39 | 91-2969 | NAMEPLATE - Pressure Vessel | 1 | |
| 40 | 91-5280 | NAMEPLATE - Pressure Vessel | 1 | |
| 41 | 91-2966 | NAMEPLATE - Pressure Vessel | 1 | |
| 42 | 61-1829 | HOSE - throttling valve (o-ring seal) | 1 | |
| 43 | 33-1461 | O-RING - hose (o-ring seal) | 1 | |
| 44 | 66-8928 | FITTING - hose (o-ring seal) | 1 | |
| 33-1461 | O-RING - hose | 1 | ||
| 45 | 61-3764 | VALVE - throttling | 1 | |
| 46 | 91-9306 | BRACKET - throttling valve | 1 | |
| 47 | 66-9246 | FITTING - pressure | 1 | |
| 48 | 41-7962 | TRANSDUCER - discharge | 1 | |
|
42-1312 OEM | Трансдюсер, SL-400/SL-400e/SLX/SLXe/T-Series | 29 680 ₽ |
|
|
10-42-1312 | Трансдюсер, SL-400/SL-400e/SLX/SLXe/T-Series | 10 060 ₽ |
|
| 49 | 41-7960 | TRANSDUCER - suction | 1 | |
| 10-42-2284 | Трансдюсер, SB/SL-400/SL-400e/SLX/SLXe | 7 480 ₽ |
|
|
| 50 | 61-396 | TUBE - expansion valve to coil | 1 | |
| 51 | 66-7392 | VALVE - check | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 52 | 92-1677 | BRACKET - receiver tank | 1 | |
| 53 | 61-836 | TUBE - solenoid | 1 | |
| 54 | 61-3517 | VALVE - solenoid | 1 | |
| 55-1384 | SCREW - valve | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 |
